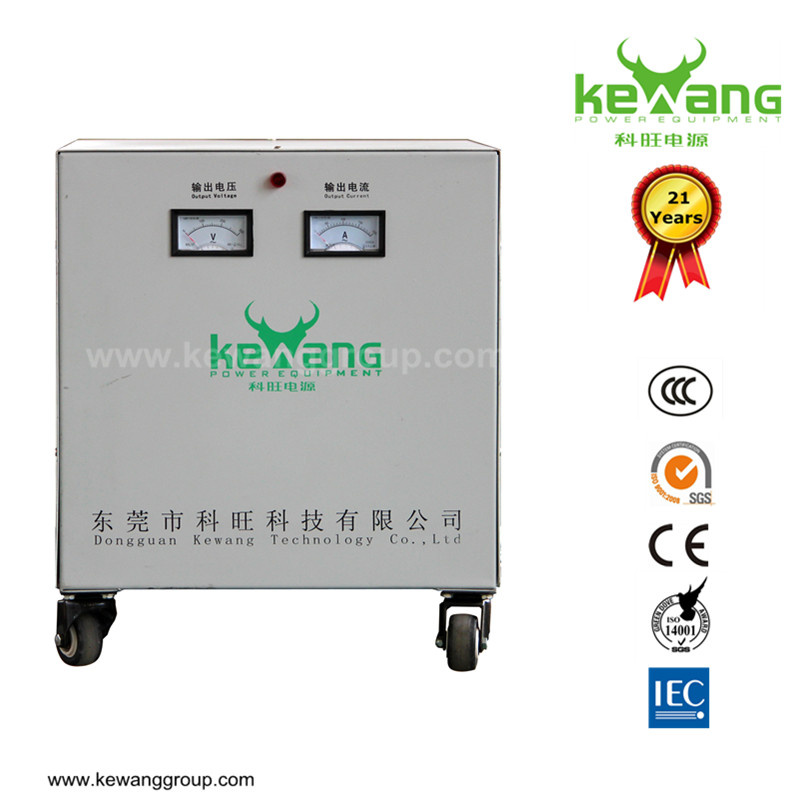

Kewang Dry Type Step up Transformer 100kVA

Prod Model:	transformer
Input Voltage:	440V,420V,400V,380V
Output Voltage:	400V,380V,220V,200V,190V,120V,100V
Compatible Voltage:	Less Than 1000 V
Where We Use:	Precise Instruments, Test Equipments etc
Frequency:	50Hz/60Hz
Rated Capacity:	10kVA to 1250kVA
Product Name:	Kewang 120kVA Dry Type Step up Transformer
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Brand:	Kewang

Product Description

Kewang Dry Type Step up Transformer


Product Introduction
Adopted high quality materials and advanced techniques, by air-cooled method, via vacuum pressure impregnating and strict quality-inspection, SE air-cooled LV transformers possess following features: high efficiency, low loss, low noise, high reliability and strong load capacity;
SE air-cooled LV transformers are classified into: auto transformer, isolation transformer, single phase transformer and three-phase transformer;
Input voltage: three-phase 440V,420V,400V,380V,etc.
Output voltage: three-phase 440V,380V,220V,200V,190V,120V,100V,etc.
Single phase and special products can be made as per requirements

Application:
Applied to the machineries with operating voltage less than 1000V:
Precise instruments, test equipment, electric equipment, production lines, railways, R&D science technology institutions.



Parameters
Rated capacity	10kVA~1250kVA
Frequency	50Hz/60Hz
Coupling	Yna0 DyN11
Efficiency	>95%
Insulation class	B/F/H
Power frequency withstand voltage	3000V60S
Insulation resistance	500VDC>5ΜΩ
Ambient temperature	10~40ºC
Relative humidity	<90%



Specifications
SE Air-cooled Three-phase Auto Transformer Specification
Model	Capacity(kVA)	Dimension(W×D×H)mm	Weight (kg)
SE-10	10	500×400×500	75
SE-15	15	500×400×500	85
SE-20	20	600×500×520	110
SE-30	30	600×500×520	120
SE-40	40	600×500×520	130
SE-50	50	600×500×520	160
SE-60	60	600×500×520	170
SE-80	80	720×560×800	230
SE-100	100	720×560×800	240
SE-150	150	720×560×800	280
SE-200	200	880×680×980	420
SE-250	250	880×680×980	460
SE-300	300	880×680×980	500
SE-350	350	1180×880×1280	580
SE-400	400	1180×880×1280	620
SE-500	500	1180×880×1280	700
SE-600	600	1280×950×1500	880
SE-800	800	1280×950×1500	980
SE-1000	1000	1400×1100×1700	1200
SE-1250	1250	1400×1100×1700	1400



SE Air-cooled Three-phase Isolation Transformer Specification
Model	Capacity(kVA)	Dimension(W×D×H)mm	Weight (kg)
SE-10	10	600×500×520	110
SE-15	15	600×500×520	130
SE-20	20	600×500×520	160
SE-30	30	600×500×520	170
SE-40	40	720×560×800	240
SE-50	50	720×560×800	280
SE-60	60	720×560×800	320
SE-80	80	880×680×980	420
SE-100	100	880×680×980	460
SE-120	120	880×680×980	500
SE-150	150	1180×880×1280	580
SE-200	200	1180×880×1280	620
SE-250	250	1180×880×1280	700
SE-300	300	1280×950×1500	880
SE-400	400	1280×950×1500	980
SE-500	500	1400×1100×1700	1200
SE-600	600	1400×1100×1700	1400
SE-800	800	1600×1200×1900	1800
SE-1000	1000	1600×1200×1900	2200
SE-1250	1250	1800×1500×2200	2800

Above size and weight only for reference
