| Copper Thickness: |
1oz-4oz |
| Board Thickness: |
0.1mm~0.2mm |
| Place Of Origin: |
Guangdong, China (Mainland) |
| Surface Finishing: |
Immersion Gold,Immersion Tin,OS |
| Lead Free Technology: |
Yes |
| Engineering Support: |
Support |
| PCB Testing: |
E-Testing |
| Impedance Control: |
Yes |
| Color Of Silk-Screen: |
White,Black,Silver |
| Coler Of Solder Mask: |
Green, Black, Blue, White, Y |
| Dielectric: |
FR-4 |
Product Description
Welcome to china visit our company wesbite !

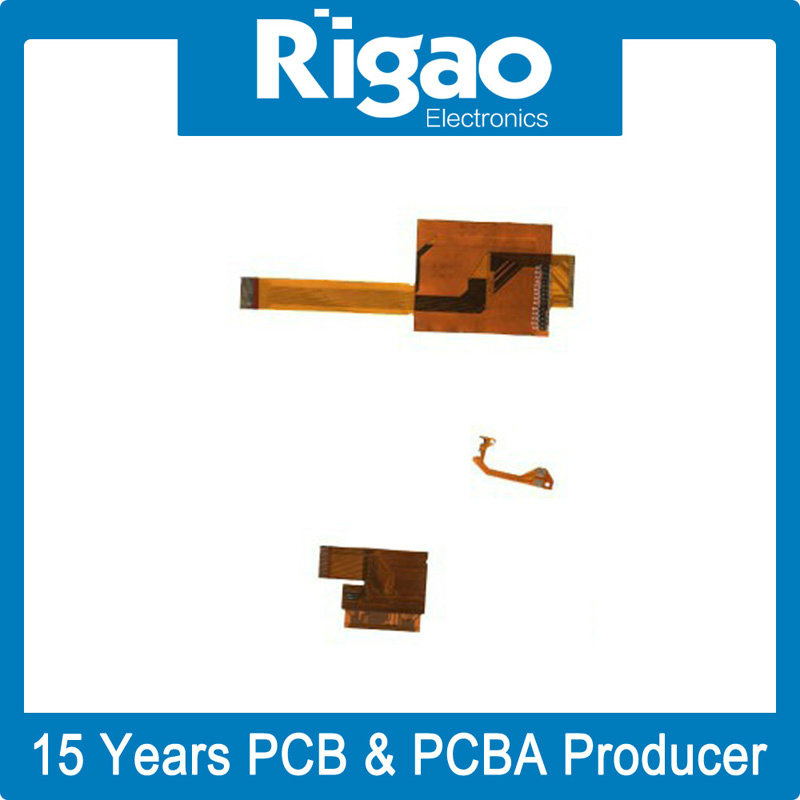

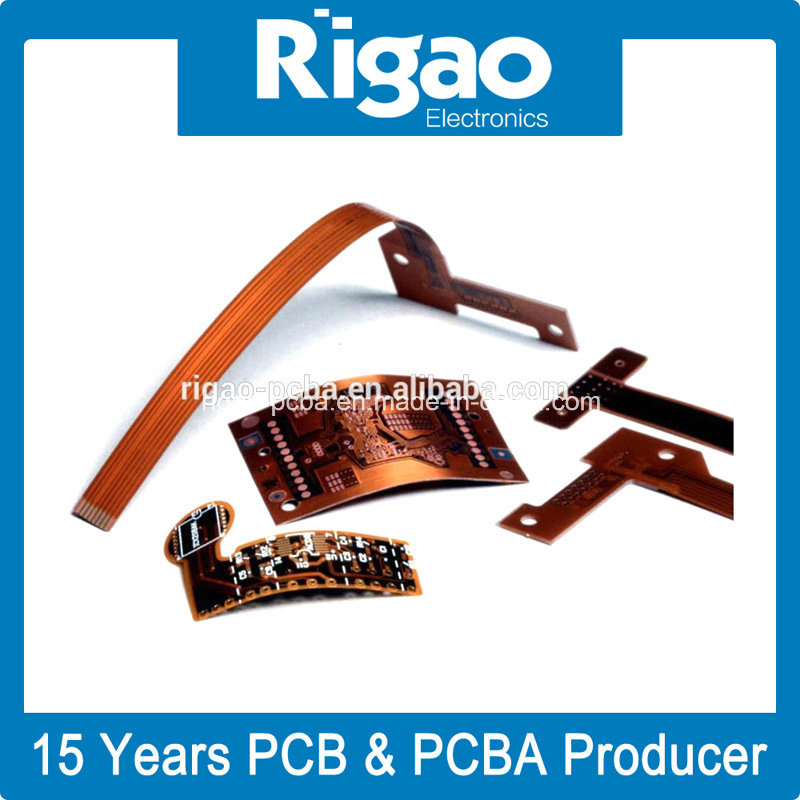

Keyboard Flexible pcb assembly/FPC & flexible coupling assembly
Welcome to Rigao Electronics .CO.,Ltd.
PCB, SMT & PTH, PCB Assembly service
Our products are made based on your design and requirement. The PCBA product we can
handle is from the Bare PC board, Full component procurement, BGA & Surface Mount PCBA
Assembly, Mixed Technology & Through-Hole PCB Assembly, Visual inspection / Functional
test, product assembly. All boards are electronically tested and shiped with a full set of QA
report document. Advantage speedy delivery, High reliable, Advanced equipment,
Cheap price. UL, RoHS, ISO-9000, TS16949.
1.Detailed Specification of PCB Manufacturing
| 1 | Layout | 1-22 layer |
| 2 | Material | FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2, Aluminum |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free,Chemical tin,Chemical Gold, Inmersion Silver/Gold,Osp,Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Certificate | UL,ISO9001,ISO14001,ROHS,CQC |
| 15 | Profiling Punching | Routing,V-CUT,Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
2.Detailed Terms for PCB Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA

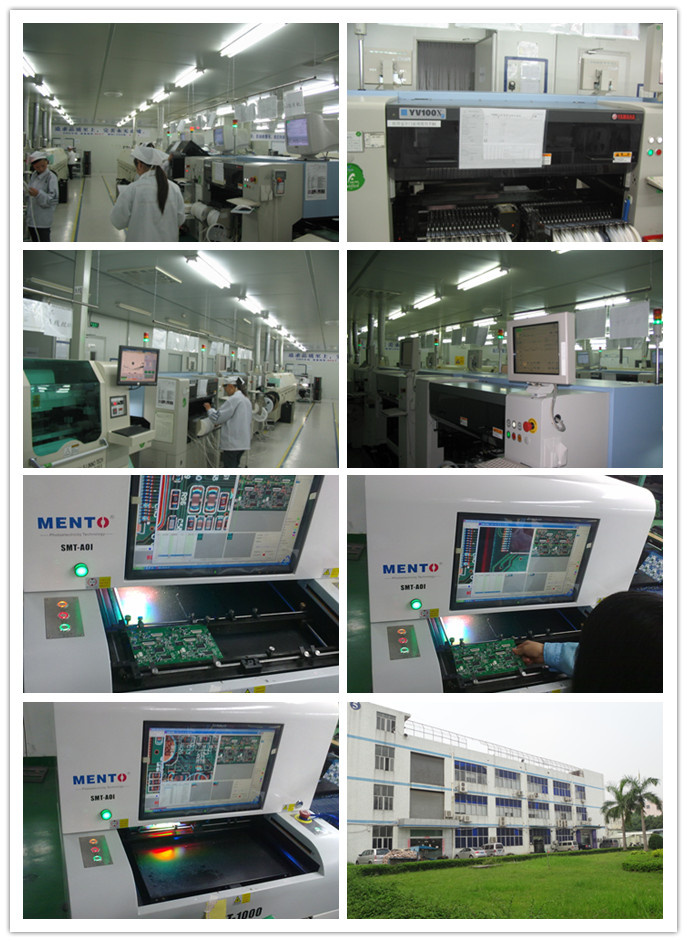

3.View of Rigao Factory
RFQ:
Q: What is your MOQ?
A: We accept any quantity you want to order, prototype and mass production both are welcome.
Q: What do you need for quotation?
A: We need six informations from you as following show:
- Material:
- Board Thickness:
- Copper Thickness:
- Surface treatment:
- Gerber rle or other PCB data hle:
- Quantity:
For PCB assembly, we need BOM of components.
Q: Can you provide reverse engineering?
A: Yes, we do this service and we call it PCB or PCBA clone/copy,we just need the sample from you.
Q: Do you have your owr products?
A: No, we just do the customized PCB and PCBA prodution, also PCB/PCBA design is welcome.
Our service:
1.We provide 360 days warrantly.
2.If the item you purchase from our store are not of perfected quality,that is they
do not work electronically to manufacturers specifications, simply return them to
us for replacement or refund.
3.If the items is defective, pls notify us within 3 days of delivery items
4.Any must be returned in their original condition to qualify for a refund or buyer
the replacement
5.The buyer is responsible for all shipping cost incurred.
Why choose us?
Our manufacturing and quality control processes are ISO 9001:2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best."
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, " To be the most reliable supplier of PCB and PCBA."
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.
As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.
Our main services include offering
Rigid PCB (up to 64 Layers)
Flexible PCB/FPC (1~6 Layers)
Rigid-Flex (3~18 Layers)
Aluminum-based PCB (1~6 Layers)
High Density Interconnection/HDI PCB
High frequency material PCB
DIP, COB, SMT assembly Services
Components Sourcing
We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.
Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.
Our Principle is simple, "Act by heart, Make the best. "
Our strength is distinct, "Years of experiences in PCB and PCBA field"
Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "
Our orientation is clear, "Focus on prototypes and low to medium volume business "
Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.
We are look forward to working with you!
