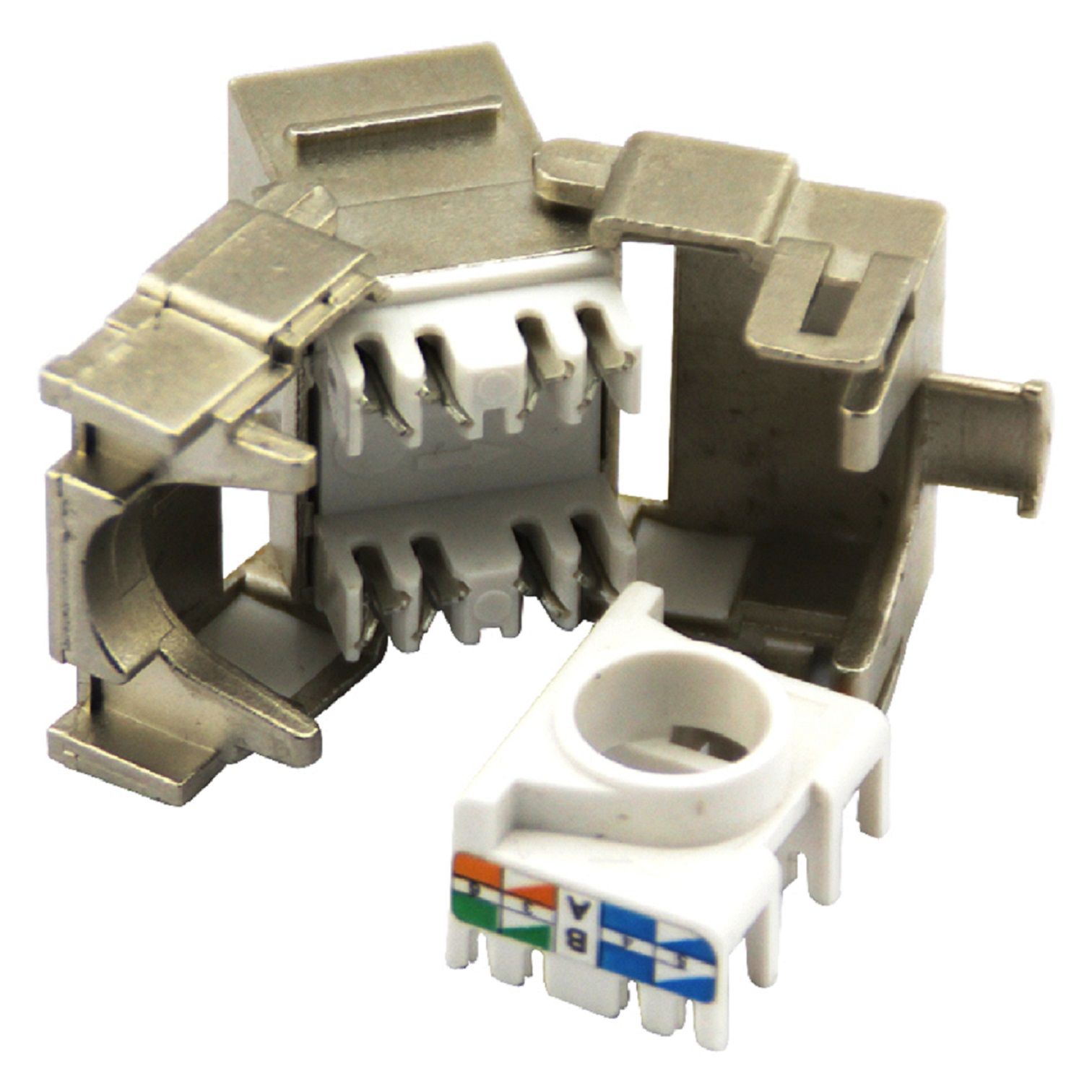

Keystone Jack (8P8C) for RJ45 Connector

Keystone Jack (8P8C) for RJ45 Connector
Price: US $ 1-3/Piece
Trade Terms: FOB,others
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: keystone Jack
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Packing: Box
Temperature Storage: -40° C - + 70° C
Temperature Operation: -10° C - +60° C
Relative Humidity: 93%
Application: Cable
Installation Mode: Automatic Pop-up
Type: Multi-Tube Jack
Shape: Rectangular
Production Process: Injection
Customized: Non-Customized
Working Frequency: High Frequency
Feature: Fire/Flame Retardant
Cards Support: Dual Card
Interface Type: RJ45

Product Description

Environmental conditions:
Temperature storage: -40° C - + 70° C
Temperature operation: -10° C - +60° C
Relative humidity: 93%
Electrical characteristics:
Insulation Resistance: 500 Mohm min 100 V d. C.
Dielectric Voltage: 1000 V d. C. Or a. C., 60 Hz for 1 min (Contact-Contact) or 1500 V d. C. Or a. C., 60 Hz for 1 min (Contact-Panel)

Contact resistance: 20 mohm max
IDC Contact resistance: 2, 5 mohm max
Current rating: As figure

Materials:
Housing: Zinc-alloy, fully shielded
Spring Wire: Phosphor Bronze Alloy Plated with 50 micro-inch of Gold Over 70-100 micro-inch of Nickel
IDC: Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy.


Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Angle: 180 Degree
Termination: 110&Krone Type
Electrical:
According to UL 1863
Current rating:1.5 Amp Max.
Voltage rating:150 Volts
Contact resistance:20 m-ohm
Insulation Resistance:500M-ohm
Dielectric Withstand Voltage:1000 V AC RMS, 60Hz 1min

Materials:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
