GUANGDONG SIMPACT TECHNOLOGY CORP. >> Keystone Jack (8P8C) (RJ-45)

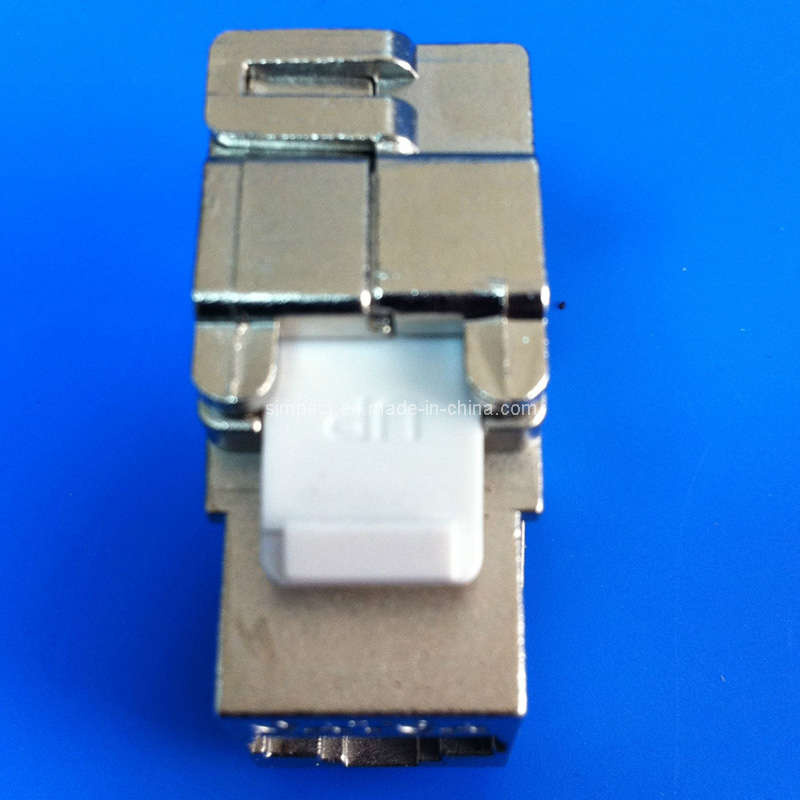

Keystone Jack (8P8C) (RJ-45)

Keystone Jack (8P8C) (RJ-45)
Price: Negotiable/Piece
Trade Terms: FOB,others
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: S-001568700221
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Package: Box
Temperature Storage: -40° C - + 70° C
Temperature Operation: -10° C - +60° C
Relative Humidity: 93%
Type: Multi-Tube Jack
Application: Cable
Shape: Rectangular
Interface Type: USB
Installation Mode: Automatic Pop-up
Working Frequency: High Frequency
Cards Support: Dual Card
Customized: Non-Customized
Production Process: Injection
Feature: Fire/Flame Retardant

Product Description

Environmental conditions:
Temperature storage: -40° C - + 70° C
Temperature operation: -10° C - +60° C
Relative humidity: 93%
Electrical characteristics:
Insulation Resistance: 500 Mohm min 100 V d. C.
Dielectric Voltage: 1000 V d. C. Or a. C., 60 Hz for 1 min (Contact-Contact) or 1500 V d. C. Or a. C., 60 Hz for 1 min (Contact-Panel)

Contact resistance: 20 mohm max
IDC Contact resistance: 2, 5 mohm max
Current rating: As figure

Materials:
Housing: Zinc-alloy, fully shielded
Spring Wire: Phosphor Bronze Alloy Plated with 50 micro-inch of Gold Over 70-100 micro-inch of Nickel
IDC: Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy.

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Angle: 180 Degree

Termination: 110&Krone Type

Electrical:

According to UL 1863

Current rating: 1.5 Amp Max.

Voltage rating: 150 Volts

Contact resistance: 20 m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:

Housing: PC UL94V-0

IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.

PCB: FR4 1.6mm(0.04") thickness, 2 layers
