| Prod Model: |
S22 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black, Blue, Pink, Orange |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Integration Type |
| Carrier Frequency: |
Dual-Frequency |
| Certification: |
ISO/TS16949, ISO14001, ISO2000 |
| Screen Size: |
0.66 |
| Chip: |
Mtk6260-364MHz |
| Brand: |
OEM/ODM |
Product Description

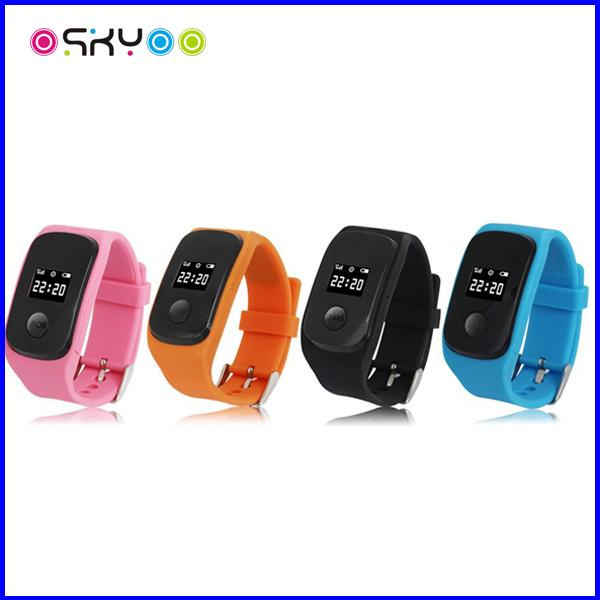

Kids GPS Watch Smart SIM Card Phone Tracker
Function description:
1. Real-time GPS monitoring of positioning /timing positioning Tracking(SMS/GPRS/TCP/UDP)
2.SOS function: 3 sos numbers available, can positioning by SOS button in emergency
3.Support Phone APK/APP
4.Support photo frame function,can display pictures automatically
5.Alarm clock: remind you on time for important daily schedule
6.Support single location and continuous tracking support to achieve real-time positioning/timing positioning
7.Support setting two family phone numbers, total 250 phone numbers available
8.Support phone call/SMS locating directly,no need platform(website) locating to tracking
9. Exactly real-time path tracking can accurate to seconds
10.Support SMS / PC / phone-client queries, SMS and the Internet to check the location information, Google plane and satellite maps
11.Emergency alarm / lectronic Geofences alarm/remote monitoring/lower battery alarm;Record and playback history contrail
12.Remote monitoring, High sensitive microphone, can monitor the person tracked without distrub, real-time tracking.
Suitable for children's hand type design, import silica gel material strap,very good feeling.
Accessories:
High-quality wired headset;
Data line;
1pcs High capacity battery;
Brochures in English
Packing:
Whole set packing weight:0.4KG
Packing box size:155*95*70mm
Packing carton size: 49*32.5*37cm
Product amount per Carton:50pcs
| Feature 1 | GSM 850/900/1800/1900 |
| Feature 2 | SOS |
| Feature 3 | tracking by SMS |
| Feature 4 | tracking online |
| Feature 5 | replaying of historical running data |
| Feature 6 | electronic fence |
| Feature 7 | remote monitoring |
| Feature 8 | GPS and LBS tracking way |
Introduction |
| Basic info: | |
| Key words | GPS tracking watch phone,SOS watch phone, kids gps watch |
| Model NO. | S22 |
| Colors | Black,Pink, Blue, Orange |
| Size | 32.5*23 mm |
| Weight | 41g |
| Screen type | 0.66", no touch Screen, |
| Battery | 3.7V/370mAh Li-ion--Built-in, can not take out to change battery. |
| Standby time | 60hours |
| Talk time | 6hours |
| GPS Tracking time | single time get gps position about 1-2days, if open gps all time every 60sec update data:6hours. |
| Take way | Handfree(speaker) |
| Input Method | NO |
| Material | Plastic+Silicon |
| | |
| Hardware info: | |
| CPU | MTK6260-364MHz |
| ROM | NO |
| RAM | NO |
| Sim card slot | yes--Mirco sim card |
| TF card slot | NO |
| Andriod OS | NO |
| WIFI | NO |
| GPS | Yes-- GPS MTK3337. accuracy(5-10M) |
| Sensor type | NO |
| Speaker | 8Ω/0.7W speaker x 1 |
| MIC | Yes |
| Vibrate motor | NO |
| FM radio | NO |
| Camera | NO |
| Bluetooth | NO |
| Buttons | one button(SOS) |
| USB port | Yes--for charge. |
| Stylus pen | NO |
| waterproof | NO |
| | |
| Main functions: | |
| Tracking: | wacth open GPS, get GPS coordinates, send this data to platform, platform explain out address, send back to watch. |
| Frist use | Insert( 2G) sim card in the watch, make sure watch can call ,can send SMS,can go internet by GRPS. |
| How to tracking this watch | Set SOS phone NO. then send SMS command to the watch to get watch's position. |
| Tracking Way | Send SMS command, Android phone tracking APK, PC platform tracking online, Website. |
| Tracking version | singal tracking to get map link or detail address. tracking all times(can set every 60sec(interval time) update data) |
| Platform | tracking online,check the watch how to moving. Alarm, history (save 1year data) ,Geo-fences,user's info. |
| Platform demo | www.gps1166.com 325285060552506 123456 |
| Safely | each watch have one account/psw, only sos phone can send sms command to set/tracking this watch. |
| GPS or LBS tracking | outdoor tracing by GPS( very accuracy), indoor tracking by LBS ( not accuracy) |
| LBS | LBS: tracking by base stations.(GSM singal) get a theory address,(some countries can not use LBS tracking since google map not have the local LBS data) |
| Key Features: | | | | | |
| SOS button | press SOS, will call sos phone 3times, also send SMS(SOS+ detail address) to sos phone. |
| Call back | SOS phone send SMS command"02" to watch, the watch will auto call back to sos phone -two-way conversation |
| Monitor/Listen | SMS command"03", the watch will auto call back, sos phone can listen sound around watch-one-way conversation |
| Get map link SMS | SMS command"01", the watch auto reply map link SMS to sos phone.( no need GPRS send data to platform) |
| Get GPS detail address | SMS command"05", when the watch outdoor get gps signal will auto reply addresss SMS to sos phone. |
| Low battery Alarm | SMS command"04", watch auto send SMS to1SOS phone when low battery. |
| tracking on buyer's platform | need buyer according our watch's protocol amend their own platform, change upload data IP and port. |
| | | | | | |
| APK support | Yes-- have settings APK software and tracking APK software for android phone. |
| smart BT sync | NO |
| Change clock interface | NO |
| MP3 Play | NO |
| MP4 Play | NO |
| Recording | NO |
| Profiles | NO |
| Alarm | NO |
| Calculator | NO |
| Calendar | NO |
| FM radio | NO |
| Schedule power on/off | NO |
| pedometer | NO |
| QR-code | QR code for APK tracking software on the user's manual, user can scan to get tracking apk software easily. |
| Go internet | Not have brower, but for tracking, the sim card insert the watch must have GPRS to send data to platform. |
| Languages | No need language support. watch only display Time interface, not have other menu, so can use for any area/ countries. |
| Package box/carton size | box: 105X98X84MM carton size: 513*220*435MM 50pcs / carton |
| Package | watch x1, usb cable x1, manual x1 |
| Warranty | Non-artificial damage for one year |
