| Prod Model: |
IEC 1.5-1000mm2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Jinshui |
Product Description
Quick Details
- Place of Origin: China (Mainland)
- Brand Name: jinshui
- Model Number: VV
- Insulation Material: PVC
- Type: Low Voltage
- Application: Construction
- Conductor Material: copper or aluminum
- Jacket: PVC
Packaging & Delivery
| Packaging Details: | wooden drum, steel&wooden drum |
|---|
Specifications
PVC insulated power cable with perfect chemical stability, resistant against acids, grease and organic solvents,flame resistant
1. Product Performance:
(1). The long-time permissible operation temperture of conductor shall not be higher than 70oC.
(2). Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
(3). The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 oC.
(4). Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
(5). Light weight, perfect bending properties, installed and maintained easily and conveniently.
Voltage rating: 0.6/1kV3.6/6kV.
Conductors: Copper or aluminum.

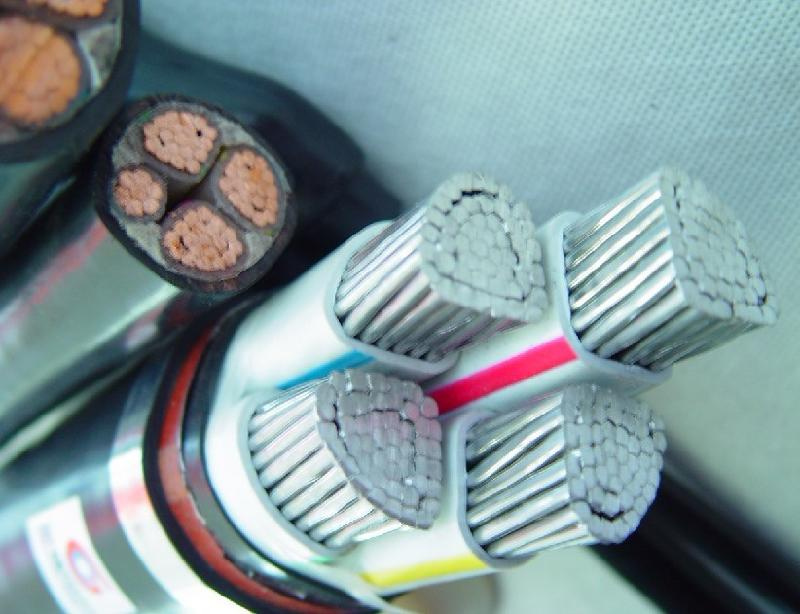

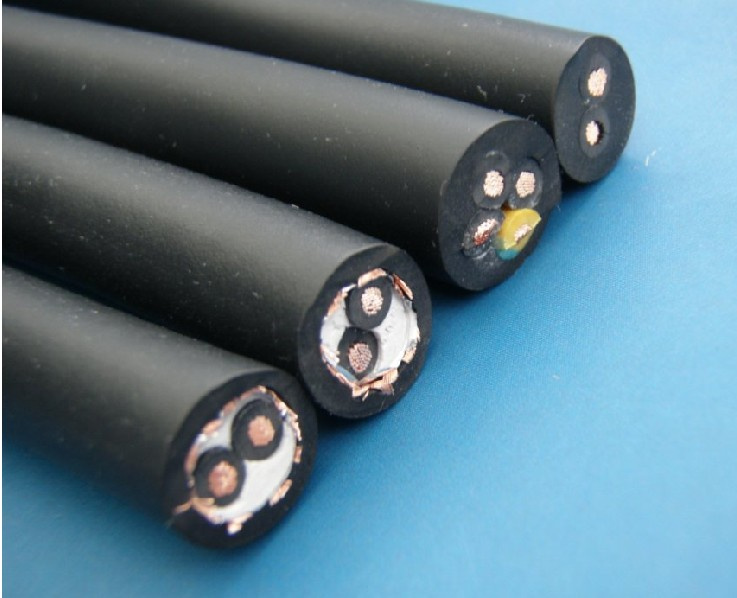

Number of cable cores: One core(Single core), two cores(Double cores), three cores, four cores(Four Equal-section-area cores or three equal-section-area cores and one smaller section area neutral core), five cores(Five equal-area cores or three equal-section-area cores and two smaller section area neutral cores). We provide armoured trpe and non-armored type for the power cables above.
Our company has been carrying out Chinese national standard GB 12706 and GB 12666.6(equivalent to IEC 60502 and IEC 60331)for PVC insulated power cable and fire resistant cable needed by domestic customer, and for foreign customers we can manufacture in accordance with BS, DIN and other countries, standards. In addition, we can design and manufacture PVC insulated power cable with special characteristics according to needs of customers.
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
