| Prod Model: |
HTW-21-23 |
| Casing Color: |
White |
| Set Temp Range: |
5 C to 40 C |
| Display: |
at 20 C ≤1 C |
| Temp Accuracy: |
±1 C |
| Current: |
Max 16A, 3600W |
| Figure Size: |
86×86×13mm |
| Temp Sensor: |
Inflated Film Case |
| Electric Appliance Parameter: |
2A 220V AC±10%,50/60Hz |
Product Description

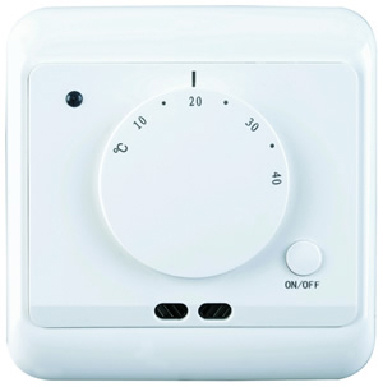

Generalnob Mechanical Underfloor Heating Thermostat-HTW-21-23 Series are the international universal heating electronic thermostat. It use installation of direct wall and have a wide range of controlling temperature. Fool type control interface is easy to use. LED indicates the working state and it is easy for users to understand operation of the thermostat. It is applicable to the heating system of the temperature automatic controlling and provides users with a comfortable, safe, energy-saving and high standard heating environment.
Access to external sensors can realize double temperature double controlling (Built-in sensor measures temperature and external sensor makes the over-temperature protection).Features• 16A 3600W Large load
• Double temperature double controlling
• Easy to use and cheapestTechnical Parameters•Voltage: 230VAC 50/60Hz
•Power waste: <2VA
•Range of temperature: 5°C-40°C
•Ambient temperature: -5°C-50°C
•Protective casing: IP20
•External sensor: B=3380 10K@25°C Lead length:3M Temperature protection
•Shell material: Flame-retardant PC
•Installation height:1.2M
•Installation location:To be fitted in the surrounding air to flow freely on the wall, shall not be affected by other heat effect(Such as sunlight, windows and doors airflow and wall temperature).Size
