Knock Down Cabinet (BJHE-A)

Name: Knock Down Cabinet (BJHE-A)
Brand: all-electronics-online.com
SKU: 645689265
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BJHE-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	From 1600x800x300mm to 2200x1800x1000mm
Type:	Power
Structure:	Open Frame

Product Description

1. Matterial: Sheet steel
2. Paint finish: Both externally and internally
3. Protected with epoxy polyester coating
4. Textured finish RAL7032 or RAL7035
5. Mounting plate: Powder coated similar to RAL2000 or galvanized
6. Base: Powder coated similar to black
7. IP rate: IP54

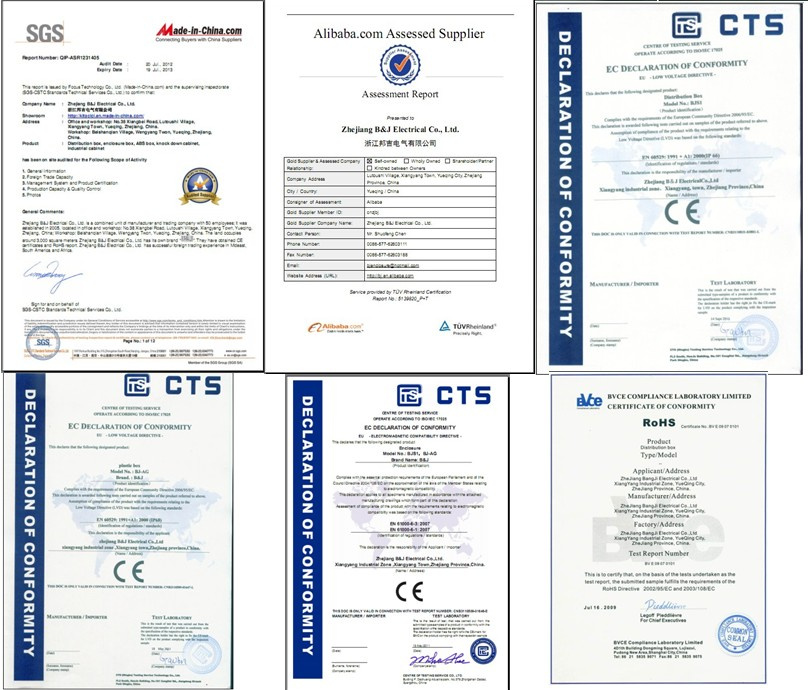

8. Certificate: CE, RoHS

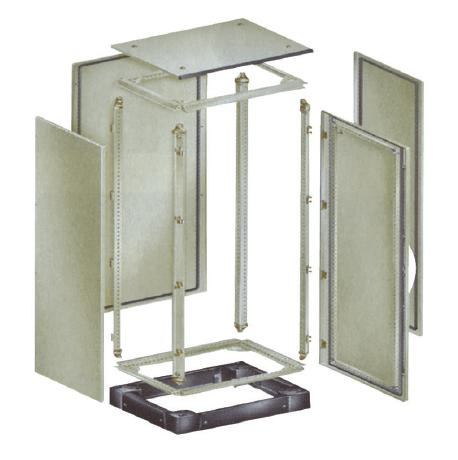

9. Supply include: Frame, fron door, back panel, side panels, top and bottom cover, mounting plate, base

NO.	Code no.	HEIGHT	WIDTH	DEEP	Brand
mm
Himel assembled cubicle
130	BJHE-A 166/30	1600	600	300	B& J
131	BJHE-A 166/40	1600	600	400	B& J
132	BJHE-A 168/30	1600	800	300	B& J
133	BJHE-A 168/40	1600	800	400	B& J
134	BJHE-A 1610/30	1600	1000	300	B& J
135	BJHE-A 1610/40	1600	1000	400	B& J
136	BJHE-A 1612/30	1600	1200	300	B& J
137	BJHE-A 1612/40	1600	1200	400	B& J
138	BJHE-A 186/30	1800	600	300	B& J
139	BJHE-A 186/40	1800	600	400	B& J
140	BJHE-A 188/30	1800	800	300	B& J
141	BJHE-A 188/40	1800	800	400	B& J
142	BJHE-A 1810/30	1800	1000	300	B& J
143	BJHE-A 1810/40	1800	1000	400	B& J
144	BJHE-A 1812/40	1800	1200	400	B& J
145	BJHE-A 1816/40	1800	1600	400	B& J
146	BJHE-A 208/40	2000	800	400	B& J
147	BJHE-A 2010/40	2000	1000	400	B& J
148	BJHE-A 2012/40	2000	1000	400	B& J
149	BJHE-A 228/40	2200	800	400	B& J
150	BJHE-A 2210/40	2200	1000	400	B& J
151	BJHE-A 2212/40	2200	1200	400	B& J
152	BJHE-A 2216/40	2200	1600	400	B& J
153	BJHE-A 2218/40	2200	1800	400	B& J

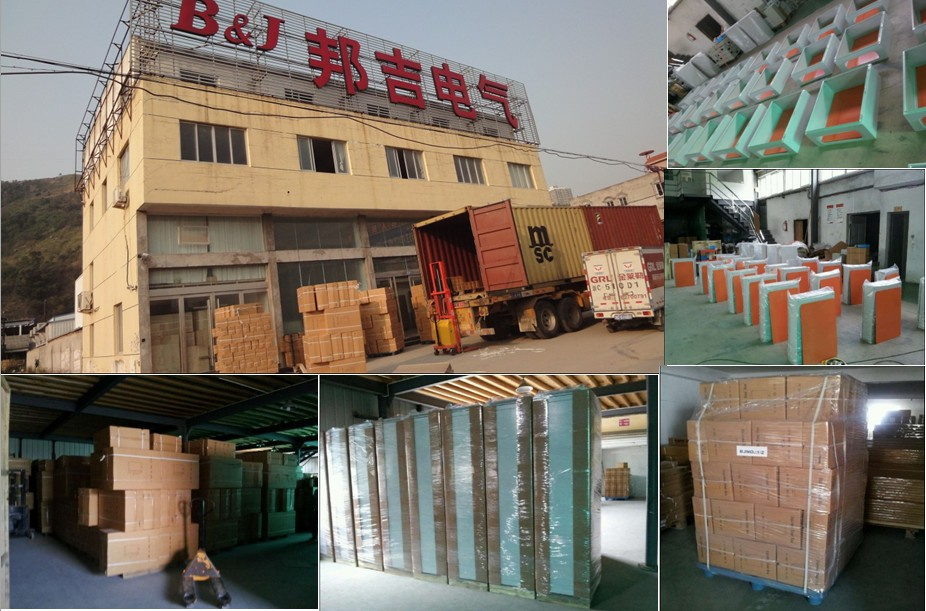

Zhejiang B&J Electrical Co., Ltd. With 20 years' experience in electrical industry, is the leading manufacturers of distribution boxes in China, specialized in producing and reserching all kinds of distribution box, wall mounting distribution box, knock down cabinet, floor standing cabinet, stainless steel box and plastic box. We have a professional team of engineers; Salemans. Service group and highly developed production and researching equipments. For our products, we have CE, RoHS, TUV and IP66, IP68 certificate. We established good commercial relationships with company from American, Europe, Asian pacific, Middle East etc. Our comprehensive product range got compliment from our customers of more than 50 coutries and areas around the world

The company aim to 'Excellent design, Excellent manufacture, Excellent service' With our professional technologies, production expertise and spirit of innovation, we can assure you that our products will meet your requirement.

Sincerely hope we can have a good cooperation in nearly future and assisting in growth for mutual benefit.
