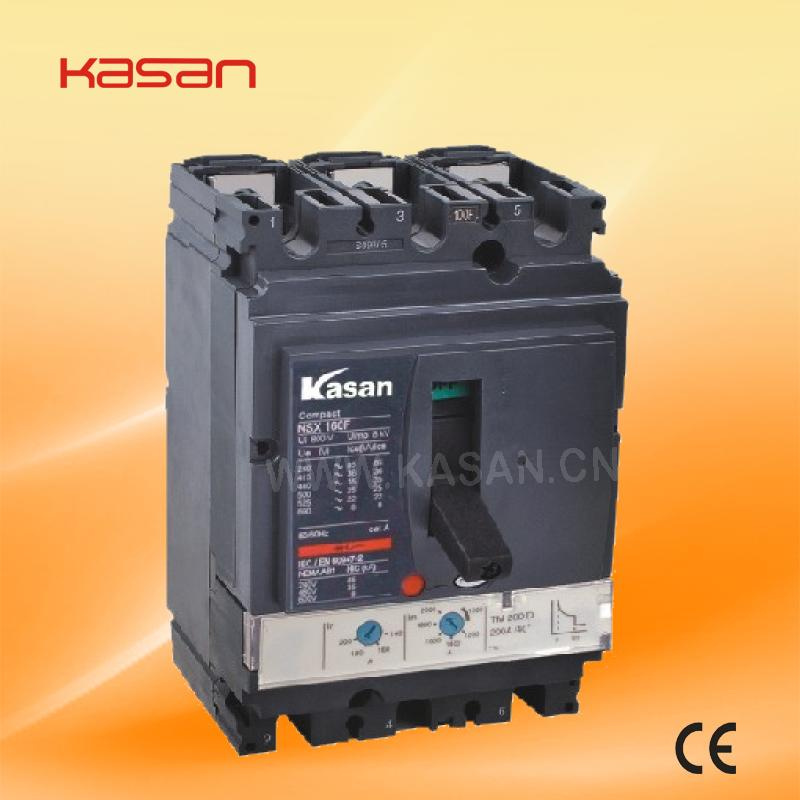

Knsx Series Moulded Case Circuit Breaker MCCB

Name: Knsx Series Moulded Case Circuit Breaker MCCB
Brand: all-electronics-online.com
SKU: 690343542
Availability: InStock
Rating: 4.7 (124 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,others
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NSX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole:	2.3.4p
Standard.:	IEC60947-2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Certification:	CE
Structure:	Moulded Case Circuit Breaker
Function:	Overcurrent Protection

Product Description

100A 3P NSX type of MCCB Moulded Case Circuit Breaker

Working environment
The altitude belows 2000m;
Circuit breaker may be used between -25°C and + 70°C. For temperatures higher than 40°C, devices must be derated;
It can withstand teh impact from humid air, salt spray, oil mist and mold;
It should be installed in places with no danger of explosion, no conductive dust, and no substance enough to corrode metal or damage the insulation;
In places with no rain and snow erosion;
Compliance with standards

International standards
IEC947-1: general rules
IEC947-2: circuit breakers
IEC947-4: contactors and motor starters;
IEC947-5.1: control circuit breaker devices and switching elements; automatic control components.

National standards
GB14048.1: general rules
GB14048.2: circuit breaker

Detail data

Item No.: NSX100	Number of poles: 3P	Type: Moulded Case
Frequency: AC50/60Hz	Ue: 690V	Ui: 750V
Uimp: 8 kV	Rated current: 100A	Installation: fixed
Release type: thermal magnetic	Accessories: SHT, UVR, OF, SD etc.	Control: manual
Dimension(mm): 105 X 161 X 86	Service: OEM is available	Guaranty: 18 months
