| Prod Model: |

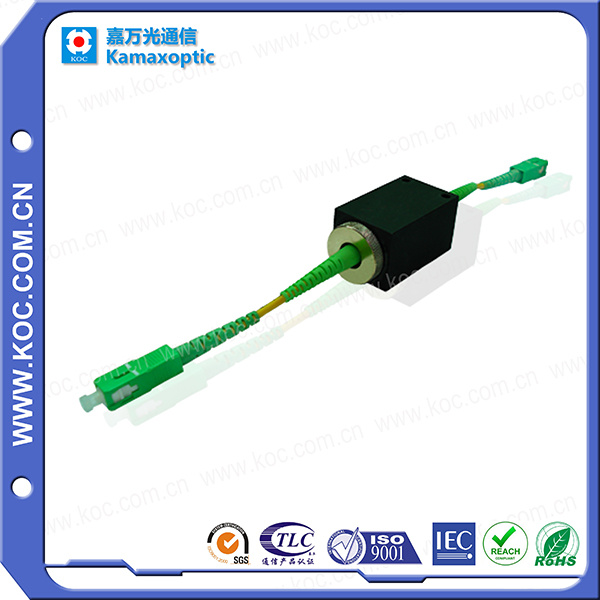

In-line Variable Fiber optic attenuator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connection Structure: |
Sc, FC, LC, St, Mu |
| Attenuation Range: |
0~35dB |
| Resolution: |
0.1 dB(Typ) |
| Return Loss: |
<-50dB(PC) |
| Attenuator Applications: |
CATV Networks |
| Transmission Medium: |
Single-Mode |
| Number Of Cores: |
Single-Core |
| Structure: |
Any Connector Available |
| Ferrule Endface: |
PC and APC |
| Light Source TYPE: |
Fiber Optic |
| Connector Type: |
Any Connector Available |
| Brand: |
Koc |
Product Description
In-line Variable Attenuator
Quick Details:
Brand Name: DYS/OEM
Model Number: Dual Window
Adjustment Precision (dB): 0.02
PDL (dB): ≤ 0.15
Dimensions (mm): 26× 18× 8
Storage temperature ('C): -40~+85
Applications
· Optical Network
· Telecom Munication
· Systems Testing
· Laboratory R&D
Features
· WideWavelengthrange
· Wide attenuation rangee
· High precision
· High stability and reliability
SPECIFICATIONS
| Parameter | Value |
| Attenuation range | 0~35dB |
| Resolution | 0.1 dB(typ) |
| Return Loss | <-50dB(PC) |
| PDL | <-60dB(APC) |
| Operation Temperature | -40ºC~75ºC |
| Storage Temperature | | Type | 1310 | 1550 | 1310/1550 Dual window | 850 / 1310 | | Wavelength (nm) | 1310 ± 50 | 1550 ± 50 | 1260~1650 | 850± 40 or 1310 ± 40 | | Attenuation range (dB) | 0.6 ~ 60 | 0.6 ~ 60 | 0.8 ~ 60 | 0.8 ~ 40 | | Original loss (dB) | ≤0.6 | ≤0.6 | ≤0.8 | ≤0.8 | | Return loss (dB) | ≥ 50 | ≥ 30 | | Adjustment Precision (dB) | 0.02 | | Fiber type | SMF-28e(9/125) | 50/125 or 62.5/125 | | PDL (dB) | ≤0.15 | | Dimensions (mm) | 26×18×8 | | Operating temperature ('C) | 0~+70 | | Storage temperature ('C) | -40~+85 |
|
Termination: Any connector available.
