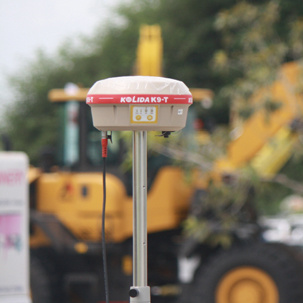

Name: Kolida Rtk Gnss Rtk GPS K9t Rtk GPS
Brand: all-electronics-online.com
SKU: 684744431
Availability: InStock
Rating: 5 (28 reviews)

Price:	Negotiable/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	K9T
Name And Model:	K9t
Horizontal:	2.5mm+0.5ppm RMS
Vertical:	5mm+0.5ppm RMS
Type:	GPS Receiver
Use:	Automotive&Hand Held

Product Description

Kolida RTK GPS Models:K96T

Prism System

Prism Set
Mini Prism
Tribrach and Adapter

Accessories

Tripods

Prism Pole & Bipods
Leveling Staff
Range Pole
Collimator

K96T GNSS

Models:K96T
Product Downloads

FEATURE
PARAMETER
ONLINE INQUIRY
220 channels, Pacific Crest GNSS Motherboard, support GPS/GLONASS/Galileo/BeiDou
Built-in Transreceiver Radio with 2-5 km emitting range
Built-in GPRS (3G optional) modem and UHF data link
Superior waterproof and dustproof IP67
Small, lightweight and rugged design for demanding environment field work
4G Internal Memory Space

Satellite Signal Tracked Simultaneously

GPS: L1C/A,L1C,L2C, L2E, L5

GLONASS: L1C/A, L1P, L2C/A, L2P, L3

SBAS: WAAS, EGNOS, MSAS

Galileo: E1, E5A, E5B (test)

Beidou: B1, B2

Positioning Accuracy

Real Time Kinematic (RTK): Horizontal: 8mm+1ppm RMS
Vertical: 15mm+1ppm RMS
Initialization time: typically<8s
Initialization reliability : typically >99.9%

Static Surveying (Post-processing): Horizontal: 3mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS
Baseline Length: ≤300km

Communication & Data Storage

Standard USB 2.0 Port
RS-232 Port: Baud rate up to 115200
Integrated Bluetooth ® Class 2
Integrated Trans-receiver Radio 430-450/ 450-470 Mhz
Internal Radio Working Range: 2-5 km
External Radio Working Range: 15-20km

Data Storage: Internal Memory 4GB
Update Rate: 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz positioning output.
Reference Output: CMR, CMR+, RTCM2.1, RTCM2.2, RTCM2.3, RTCM3.0, RTCM3.1

Physical & Environmental

Dimension(LxWxH): 190mmx 190mmx 98mm
Weight: 1.58kg (include all module and battery)
Working Temp. : -45ºC to +60ºC
Storage Temp.: -55ºC to +85ºC
Humidity: 100% condensing
Water/ Dust Proof: IP67
Shock and Vibration: designed to survive from a 2.5m drop onto concrete

Electrical

External Power Input: 12-15V DC (not less than 36Ah)
Internal Battery Capacity: 3400mAh
Internal Battery Life: 6-12 hours for 2 batteries
