| Prod Model: |
T875 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Type: |
Lead-Acid Batteries |
| Usage: |
Solar Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
Deep Cycle Battery
Golf cart battery
Deep cycle
Specially design for home & office power or lighting system
In central American market
Specifications

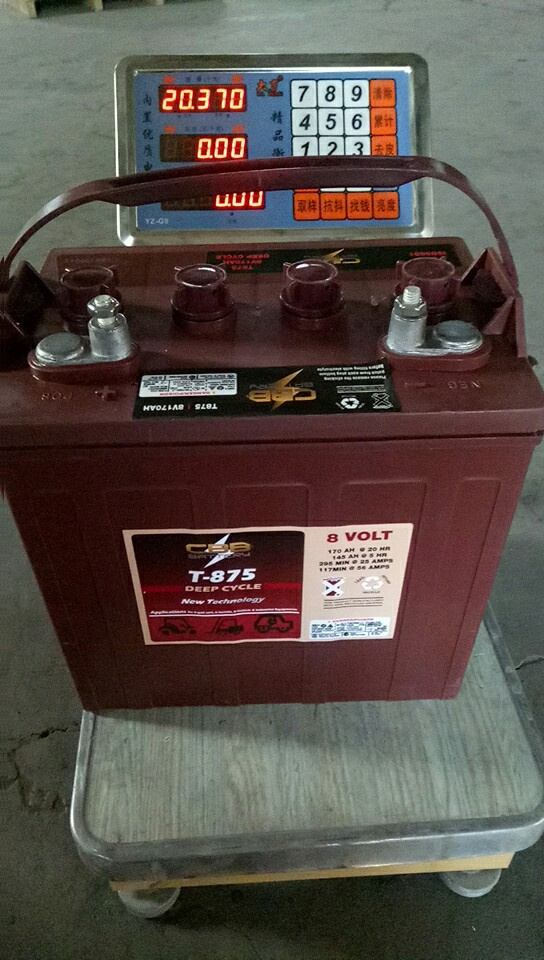

T875 8V170AH Deep Cycle Battery for UPS
Lead Acid Battery for Electric Traffic Vehicles
Good quality Pb+Ca battery
T875 8V170AH Deep Cycle Battery for UPS
Standard: IEC, America's BCI standard
Sort: Dry charge & MF battery
Size ( mm ): L*W*H*TH=259*180*283mm
Voltage ( V ): 8
Rated Capacity ( 20HR, AH ): 170 AH
RC & Reserve Capacity ( Min ): 135(75A)
Approx Wt. ( Kgs ): 21kgs dry weight
Layout: 2 ( - |+ )
Terminal Type: T ( Type WNT / UT / LT )
OEM: OK
| 6/8V VOLT DEEP-CYCLE FLOODED BATTERIES |
| BCI Group Size | Type | Capacity Minutes | Capacity Amp-hour(AH) | Voltage | Terminal | Dimensions | Weight |
| @25Amps | @75Amps | inches(mm) | Kgs |
| 5 Hr | 10Hr | 20Hr | Volt | Type | L | W | H | DRY |
|
|
| GC2 | T-605 | 383 | 105 | 175 | 193 | 210 | 6 | 1,2,3,4 | 10.30 (262) | 7.13 (181) | 11.15 (283) | 17.5 |
| GC2 | T-105 | 447 | 115 | 185 | 207 | 225 | 6 | 5 | 10.30 (262) | 7.13 (181) | 11.15 (283) | 19.5 |
| GC2 | T-125 | 488 | 132 | 195 | 221 | 240 | 6 | 1,2,3,4 | 10.30 (262) | 7.13 (181) | 11.15 (283) | 21.0 |
| GC2H | T-145 | 530 | 145 | 215 | 239 | 260 | 6 | 2,4 | 10.30 (262) | 7.11 (181) | 11.90 (302) | 24.0 |
| GC8 | T-875 | 295 | 117 @56Amps | 145 | 155 | 170 | 8 | 1,2,3 | 10.21 (259) | 7.10 (180) | 11.14 (283) | 21.0 |
| GC8H | T-890 | 340 | 132 @56Amps | 155 | 175 | 190 | 8 | 1, 2 | 10.21 (259) | 7.10 (180) | 11.14 (283) | 24.0 |
Features
-Superior Deep Cycle Design
-High Power Density
-Thick Plates and High-density Active Material
- Excellent energy storage capacity combined with high reliability
-Designed in accordance with IEC 60254-1
-700 Cycles at 75%DOD
Applications:
-Golf/NEV/Utility Vehicles
-Aerial Work Platforms/Access
-Floor Machine
-Material Handing
-Marine/Recreational Vehicle
-Transportation
-Renewable Energy
Certificates: ISO9001 ISO14001 CE UL
Deep cycle AGM battery model list for golf cart:
| Model No | Industry No | Rated Voltage(V) | Rated Capacity (Ah) | Dimension | Weight | Terminal Type |
| Length | Width | Height | Total Height | kg |
| mm | mm | mm | mm |
| 6V DEEP CYCLE AGM BATTERY |
| DC200-6 | N/A | 6 | 200/20HR | 306 | 168 | 220 | 222 | 30 | T5/AP |
| DC210-6 | GC2/T105 | 6 | 210/20HR | 260 | 180 | 247 | 252 | 29.5 | T5/AP |
| DC220-6 | N/A | 6 | 220/20HR | 306 | 168 | 220 | 225 | 31.5 | T5/AP |
| DC225-6 | (DIN) | 6 | 225/20HR | 243 | 187 | 275 | 275 | 30.5 | T5/AP |
| DC226-6 | GC2/T105 | 6 | 226/20HR | 260 | 180 | 247 | 252 | 30 | T5/AP |
| DC250-6 | GC2/T105 | 6 | 250/20HR | 260 | 180 | 265 | 272 | 34.5 | T5/AP |
| DC310-6 | 902/J305 | 6 | 310/20HR | 295 | 178 | 354 | 360 | 46.0 | T5/DT |
| DC330-6 | 902/J305 | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.6 | T5/DT |
| DC380-6 | L16 | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.3 | T5/DT |
| DC420-6 | L16 | 6 | 420/20HR | 295 | 178 | 404 | 410 | 56.8 | T5/DT |
| 8V DEEP CYCLE AGM BATTERY |
| DC170-8 | GC8H | 8 | 170/20HR | 260 | 182 | 295 | 301 | 34.0 | T5 |
| DC200-8 | GC8H | 8 | 200/20HR | 260 | 182 | 295 | 301 | 38.0 | T5 |
Features
1) Maintenance-Free Operation
Absorbent Glass Mat (AGM) technology ensures efficient gas recombination up to 99%
And f reedom from electrolyte maintenance. During the expected float service life of CBB
Batteries, no need to check the specific gravity of the electrolyte or add water.
1) Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
3) Long Service Life
A unique corrosion-resistant grid alloy ensures CBB batteries have long service life.
4) Low Self Discharge
Using high purity raw materials ensures CBB batteries have less self-discharge.
5) Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can
Prevent the acid fog from separating out.
6) Safe & Reliable
Efficient venting system automatically release excess gas when the pressure rises abov
The normal level & reseals the valves when it returns to the normal rate, which can protect
The battery from bursting.
Applications
-Portable VTR/TV, tape recorders, radios, etc.
-Power tools, lawn mowers and vacuum cleaners
-Cameras and photographic equipment
-Computers etc.
-Portable measuring equipment
-Portable telephone sets
-Various power toys and recreational equipment
-Lighting equipment/ system
-Uninterruptible Power Supply (UPS)
-Communications and electric equipment
-Emergency lighting equipment
-Fire alarms and security systems
-Various telemeter equipment
-Office computers, processors and other office automation equipment
-Robots, control equipment and other factory automation equipment, Electric Toys, Electric Tools & Portable Vacuum Cleaners
-Solar & Wind Power Generation Systems
-Emergency power supplies in power generation plants and substations
Lead time: 15-30day after getting payment
Warranty: 6/12 months Batteries: 2 years
Certificates: ISO, CE, UL
We are one of the leading manufacturers of Deep Cycle batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
| Model NO. | Nominal | Rated | Dimensions(±2mm) | Weight | Terminal Type |
| Voltage | Capactiy | (Kg) |
| (V) | (Ah) | Length | Width | Height | Total | ±5% |
| Height |
| NP1.3-6 | 6 | 1.3 | 97 | 24 | 52 | 58 | 0.31 | F1 |
| NP3.3-6 | 6 | 3.3 | 134 | 34 | 60 | 66 | 0.59 | F1/F2 |
| NP3.6-6 | 6 | 3.6 | 70 | 47 | 101 | 107 | 0.68 | F1/F2 |
| NP4-6 | 6 | 4 | 70 | 47 | 101 | 107 | 0.69 | F1/F2 |
| NP4-6CUT | 6 | 4 | 70 | 47 | 101 | 107 | 0.69 | CUT |
| NP4.5-6 | 6 | 4.5 | 70 | 47 | 101 | 107 | 0.75 | F1/F2 |
| NP4.5-6CUT | 6 | 4.5 | 70 | 47 | 101 | 107 | 0.75 | CUT |
| NP5-6 | 6 | 5 | 70 | 47 | 101 | 107 | 0.8 | F1/F2 |
| NP7-6 | 6 | 7 | 151 | 34 | 95 | 101 | 1.11 | F1/F2 |
| NP8.5-6 | 6 | 8.5 | 99 | 57 | 118 | 118 | 1.34 | F1/F2 |
| NP10-6 | 6 | 10 | 151 | 50 | 94 | 100 | 1.63 | F1/F2 |
| NP12-6 | 6 | 12 | 151 | 50 | 94 | 100 | 1.75 | F1/F2 |
| NP130-6 | 6 | 130 | 260 | 180 | 247 | 251 | 20.5 | T5 |
| NP180-6 | 6 | 180 | 260 | 180 | 247 | 251 | 28 | T5 |
| NP180-6(I) | 6 | 180 | 306 | 168 | 220 | 226 | 27 | T5 |
| NP200-6 | 6 | 200 | 260 | 180 | 247 | 251 | 30 | T5 |
| NP200-6(I) | 6 | 200 | 323 | 178 | 224 | 229 | 29.5 | T5 |
| NP0.8-12 | 12 | 0.8 | 97 | 25 | 63 | 62 | 0.34 | cable&Bullet |
| NP1.3-12 | 12 | 1.3 | 97 | 43 | 52 | 58 | 0.5 | F1 |
| NP2-12 | 12 | 2 | 178 | 35 | 61 | 67 | 0.82 | F1/F2 |
| NP3.3-12 | 12 | 3.3 | 134 | 67 | 61 | 67 | 1.35 | F1/F2 |
| NP4-12 | 12 | 4 | 90 | 70 | 101 | 107 | 1.38 | F1/F2 |
| NP4.5-12 | 12 | 4.5 | 90 | 70 | 101 | 107 | 1.48 | F1/F2 |
| NP5-12 | 12 | 5 | 90 | 70 | 101 | 107 | 1.6 | F1/F2 |
| NP5.5-12 | 12 | 5.5 | 151 | 65 | 94 | 100 | 1.9 | F1/F2 |
| NP6.5-12 | 12 | 6.5 | 151 | 65 | 94 | 100 | 1.95 | F1/F2 |
| NP7-12 | 12 | 7 | 151 | 65 | 94 | 100 | 2.05 | F1/F2 |
| NP7.2-12 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.15 | F1/F2 |
| NP7.5-12 | 12 | 7.5 | 151 | 65 | 94 | 100 | 2.25 | F1/F2 |
| NP9-12 | 12 | 9 | 151 | 65 | 94 | 100 | 2.4 | F1/F2 |
| NP10-12 | 12 | 10 | 152 | 99 | 96 | 102 | 3.2 | F1/F2 |
| NP12-12 | 12 | 12 | 152 | 99 | 96 | 102 | 3.4 | F1/F2 |
| NP15-12 | 12 | 15 | 152 | 99 | 96 | 102 | 3.8 | F1/F2 |
| NP17-12 | 12 | 17 | 181 | 77 | 167 | 167 | 5.2 | L1 |
| NP18-12 | 12 | 18 | 181 | 77 | 167 | 167 | 5.5 | L1 |
| NP20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 6 | L1 |
| NP24-12 | 12 | 24 | 165 | 126 | 174 | 174 | 7.7 | L6/T3 |
| NP26-12 | 12 | 26 | 166 | 175 | 126 | 126 | 8.4 | L2/T3 |
| NP28-12 | 12 | 28 | 166 | 175 | 126 | 126 | 8.5 | L2/T3 |
| NP33-12 | 12 | 33 | 196 | 130 | 155 | 179 | 10 | L7/T3/L4 |
| NP38-12 | 12 | 40 | 197 | 166 | 174 | 172 | 12.3 | L6/T3/L7 |
| NP42-12 | 12 | 42 | 198 | 166 | 174 | 174 | 12.9 | L7/T3/L3 |
| NP45-12 | 12 | 45 | 198 | 166 | 174 | 174 | 13.1 | L7/T3/L3 |
| NP50-12 | 12 | 50 | 258 | 134 | 200 | 200 | 15.5 | L8 |
| NP50-12(I) | 12 | 50 | 229 | 138 | 208 | 212 | 15.5 | T3 |
| NP55-12 | 12 | 55 | 229 | 138 | 208 | 226 | 17.4 | L3/T3 |
| NP60-12 | 12 | 60 | 350 | 167 | 178 | 178 | 17.7 | L9/T3 |
| NP65-12 | 12 | 65 | 350 | 167 | 178 | 178 | 20.2 | L9/T3/L4 |
| NP70-12 | 12 | 70 | 350 | 167 | 178 | 178 | 21.3 | L9/T3 |
| NP75-12 | 12 | 75 | 260 | 169 | 211 | 215 | 21.7 | L11/T3 |
| NP80-12 | 12 | 80 | 260 | 169 | 211 | 231 | 23.3 | L11/L4/T3 |
| NP85-12 | 12 | 85 | 331 | 174 | 214 | 240 | 24.8 | L12/T4/L4 |
| NP90-12 | 12 | 90 | 307 | 169 | 211 | 227 | 26.7 | L13/T3 |
| NP100-12 | 12 | 100 | 331 | 174 | 214 | 219 | 28 | L12/T4 |
| NP100-12(I) | 12 | 100 | 328 | 172 | 217 | 222 | 30 | L5/T4 |
| NP120-12 | 12 | 120 | 407 | 174 | 210 | 233 | 33 | L14/T5 |
| NP120-12(I) | 12 | 120 | 331 | 174 | 214 | 219 | 32.3 | L12/T4 |
| NP150-12 | 12 | 150 | 484 | 171 | 241 | 241 | 41 | L16/T4 |
| NP160-12 | 12 | 160 | 532 | 206 | 216 | 240 | 49.5 | L17/T4 |
| NP180-12 | 12 | 180 | 532 | 206 | 216 | 221 | 52.5 | T4 |
| NP200-12 | 12 | 200 | 522 | 240 | 219 | 244 | 58.8 | L17/T5 |
| NP220-12 | 12 | 220 | 522 | 240 | 219 | 244 | 61 | L17/T5 |
| NP250-12 | 12 | 250 | 520 | 268 | 220 | 245 | 70.5 | L17/T5 |
CBB Battery Technology Co Ltd is a large modern comprehensive power enterprise, specializing in production, R&D and sales of the full line of lead acid battery, with a factory area of 65mu and production area more than 30000m2. Our production capacity has reached more than 3 million KVAH per year.
We mainly produce VRLA battery, automotive battery, Motorcycle battery, Motive power battery, Tricycle battery, Electric vehicle battery and various plates thereof. All batteries are widely used in UPS, Power station, solar power system, telecommunication, vehicles, boats, motorcycle and other applications. All battery can meet a variety of standby, storage, deep cycle, starting, sports, new energy system and other power requirements.
In the past few years, by adopting a lot of advanced production lines and testing devices, we have developed to gain the competitive advantage in the field, which owns first class infrastructure, strict production management, unique know-how and special formula.
We attach importance to scientific and technological personnel, integrating production and research. With the efforts of professional experienced engineers, a well-trained management team and a lot number of skilled production workers, we have established the complete quality management system, which guarantees all battery quality is reliable and long-term stable. Our battery has been sold not only throughout China, but also many foreign countries, its quality have been well recognized by users both at home and abroad.
As one of the leading industrial battery manufacturers, we are keeping quality and environment protection first and foremost in our minds. With a proven track record of this dedication to protect both the earth, our employees for years has propelled us to be the industry leader in environmental protection while still maintaining the highest quality products on the market. With the recertification of Chinese Environment Ministry to Chinese battery industry in 2011, we have been becoming the best company on the environmental protection in South of China. We have been certified by IS09001, IS014001, CE, UL, RoHS, and OHSMS18001.
With the spirit of Unity, Development, Trust and Quality First, Our Team would offer you the best quality battery and services. It is our eternal pursuit to continuously meet all customer''s expectation and demands, with unremitting efforts to offer high-quality battery and excellent after-sales for all users at home and abroad.
Your any cooperation is highly appreciated
