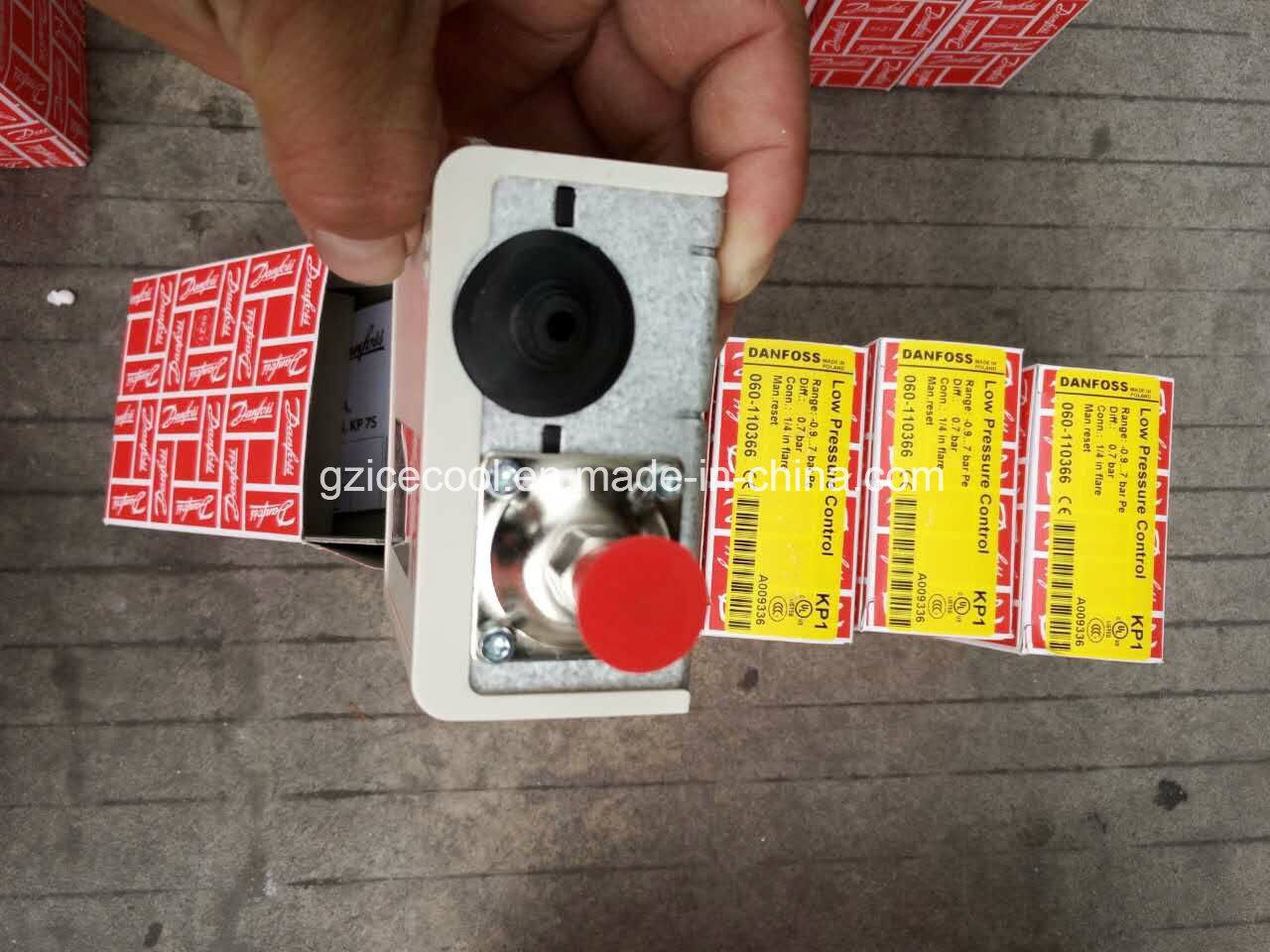

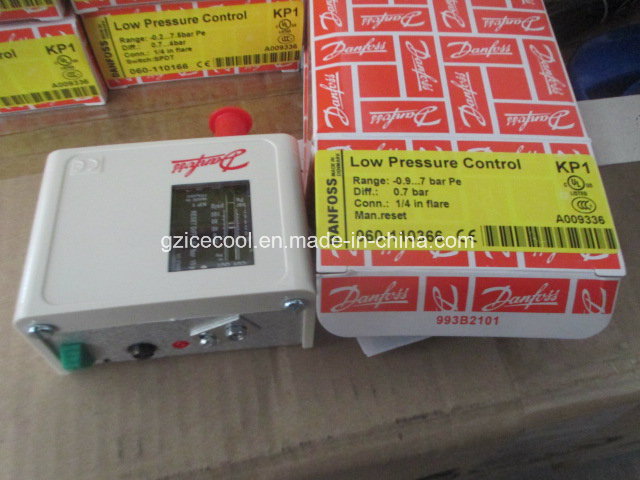

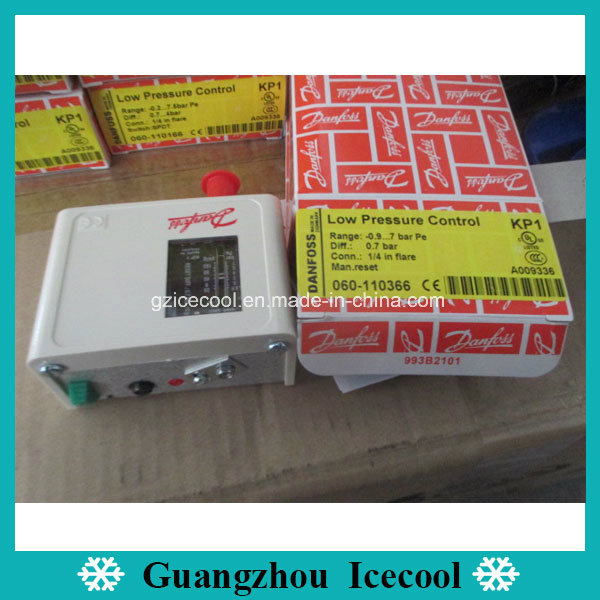

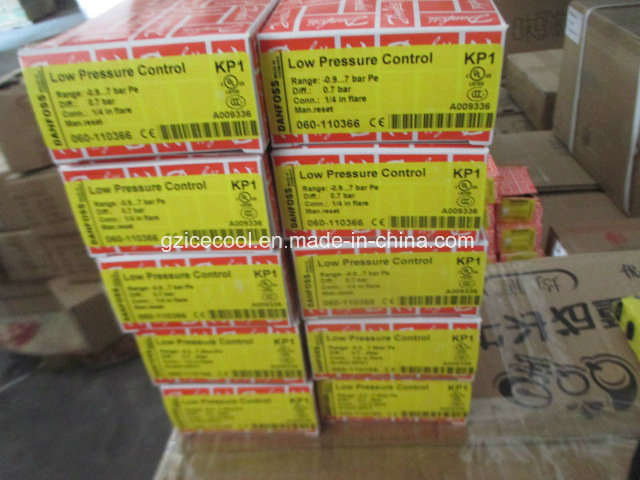

Kp1 Danfoss Hand Movement Single Pressure Switch Low Pressure Control

Kp1 Danfoss Hand Movement Single Pressure Switch Low Pressure Control
Price: US $ 13.5-15.89/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: KP1
Product Name: Single Pressure Control
Model: Low Pressure
Connection: 1/4 in Flare
Model Number: Kp1 060-110366
Dif.: 0.7 Bar
Original: China/Poland/India
Type: Mechanical
Application: Industrial
Explosion-proof Type: Flameproof
Contact: Normally Open
Brand: Danfoss

Product Description

KP1 Danfoss hand movement Single pressure switch low pressure control




Pressure controls are pressure-activated switches, with basic function to make or break an electrical

circuit which control a solenoid coil, a contactor or some other functioning part of the system.The set

point at which a control closes a contactor and makes a circuit is called the cut-in point.The point at

which the control opens the switch and breaks the circuit is called the cut-out point.The difference

between the cut-in and cut-out point is known as the differential.

Features:

1) P series air compressor pressure switch can protect compressors in refrigeration and air-condition

plant, and keep them from over-low pressure or over-high suction pressure.

2) P series air compressor pressure switch can start and stop refrigeration compressors and fans of air condensers.

3) P series air compressor pressure switch can be used not only in fluoride refrigeration, but also in air

and liquid.

4) P series air compressor pressure switch are fitted with a single pole double throw (SPDT)

changeover switch. The position of the switch is determined by the pressure control setting and

the pressure at the connector.

Product description:

Cross reference list-pressure and temperature controls,type KPU
KPUUS adopted KPStandard KP
TypeCode no.TypeCode no.TypeCode no.
KPU1060-5231KP1060-200166KP1060-110166
KPU1060-5233KP1060-205166KP1060-110566
KPU1060-5236KP1NoneKP1None
KPU1060-5232KP1060-200266KP1060-110366
KPU1060-5234KP1060-205266KP1None
KPU2060-5237KP2NoneKP2None
KPU2060-5235KP2NoneKP2None
KPU2060-5239KP2060-201366KP2060-112066
KPU2060-5240KP2060-206366KP2060-503766
KPU5060-5241KP5060-201466KP5060-117166
KPU5060-5242KP5060-206466KP5060-001866
KPU15060-5247KP15060-200866KP15060-124166
KPU15060-5248KP15060-205866KP15060-119966
KPU15060-5249KP15060-202666KP15060-114866
KPU15060-5250KP15060-203066KP15060-000766








FAQ:
1.   Where is your company?

we are located in Guangzhou, the capital city of Guangdong Province, near to Shenzhen, Foshan & Hong Kong, very convenient for shipping.

2.  How about the MOQ?

1 unit is ok.
3.  Shipping methods and lead time?

By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).

By Air: 7-10 working days to your airport.

By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.

Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).

4.  What is the term of Payment?

T/T, L/C,Western Union, Paypal;

30% T/T in advance,70% before delivery.

5.  What are your main products?

Compressor;

Refrigeration gas;

Refrigeration spare parts ;

Cold room panels and equipments .

6.  Packaging & Shipping:

Packing: wooden pallet, wooden case or with outer carton, or as per customers' specific requirements.

7.  Cooperate Partners:

Copeland, Maneurop,Performer,Bitzer, Danfoss, Sanyo, Daikin, Toshiba GMCC, Hitachi Highly, Embraco, Mitshubishi, SECOP,etc

Our company is specialized in refrigeration equipment production and sales, also we are agent for many brands compressors, refrigerants &refrigeration accessories, with reliable quality and service. At the same time, we can provide export transportation, export & custom clearance services, etc.

We are looking forward to providing our esteemed customers with one-stop sourcing experience.
