Kp22-3 Pins Thread Connecting IP68 Connector

Name: Kp22-3 Pins Thread Connecting IP68 Connector
Brand: all-electronics-online.com
SKU: 835911785
Availability: InStock
Rating: 4.3 (21 reviews)

Price:	US $ 1.9-2.7/Set
Min Order:	10/Set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KP22-3
Type:	Cable to Cable Plug
Material:	Plastic Plug
Size:	Fs2-3
Current:	10A

Product Description

Plastic plug, water proof plug, KP22(fs2) series circular connectors made of plastic shell, It can be useed in the water-proof place. We use the reliable cage clamp connection instead of the traditional wire spring. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof and strong seal etc. They are widely used for the electrical connection between electrical equipment. It has protection IP68., KP22(FS2) can be used under water 1m. Meet CE, RoHS.UL certification:E308558.
Product Ordering
KP 22 - 4 T - 6
1 2 3 4 5
1. Name of series: KP
2. Design No.: 22
3. Number of contacts: 2, 3, 4, 5,6
4. T: Plug with sockets, Z: Receptacle with pins, ZP: Cable receptacle with pins
5. Cable od: 5, 6, 7

Technical characterristics

Temperature	Relative humidity		Atmosphere		Vibration		Shock
-55°C~+100°C	(90~96)% at40°C		4.4KPa		10~500Hz,100m/s²		200m/s²
Current		Voltage		Contact resistance		Endurance
7A(FS2-2,3)		190-250V		≤5mΩ		500cycles
5A(FS2-4,5,6)		190-250V		≤8mΩ		1000cycles

Environment	Voltage proof	Insulation resistance
Normal	1500V	≥100MΩ
High temperature	900V	≥50MΩ
Moisture	600V	≥20MΩ
Low pressure	400V	-

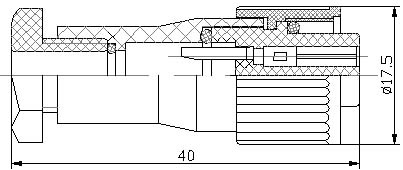

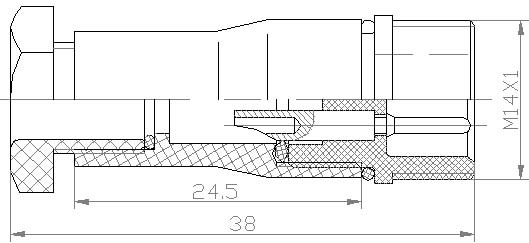

Dimensions

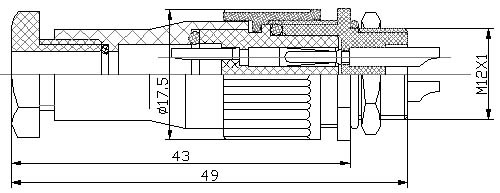

1.Plug + Receptacle, Board Drillings:KP22-T-X+KP22-ZM/ZM1

2.Plug + Cable receptacle:KP22-T-X+KP22-ZP-X:

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
