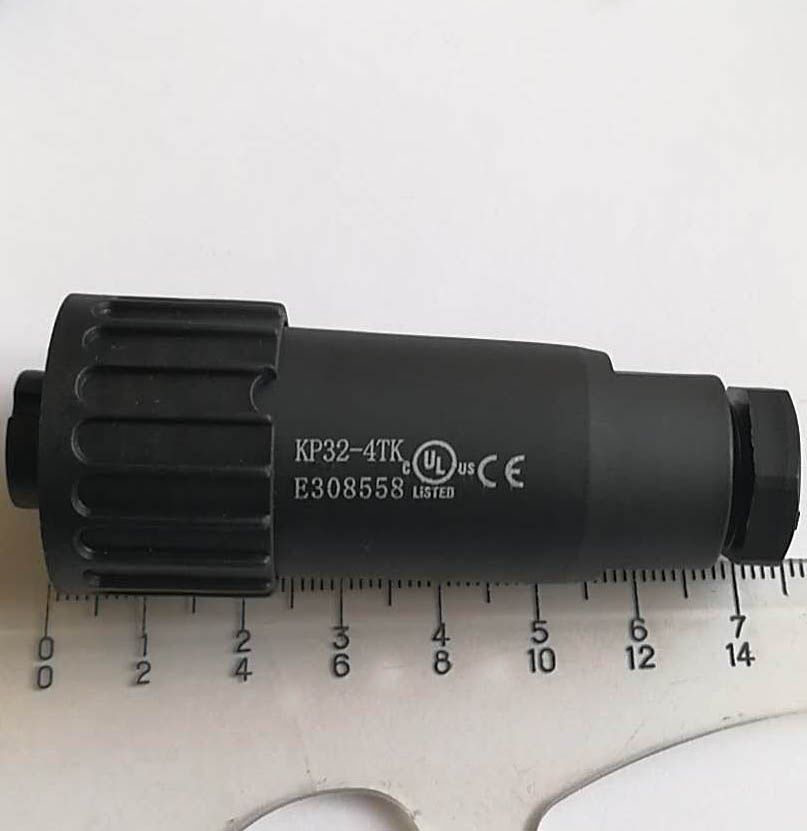

Kp32-4tk Female Circular Connectors

Name: Kp32-4tk Female Circular Connectors
Brand: all-electronics-online.com
SKU: 779827215
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 4-5/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	kp32-4TK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	16A Current
Number Of Contacts:	4 Pins
Protection:	Water Proof Connector
Material:	Plastic Shells

Product Description

1. Products introduction
KP32 series circular connectors made of plastic shell, It can be useed in the water-proof place. It have new type contacts - schrauben contacts. These connectors have the features of lower contact resistance, anti-libration, shock proof, water proof etc. They are widely used for the electrical connection between electrical equipment. It has protection IP67, It can be interchanged with Binder's series 693 &hneol's C16, UL 94 V-0. UL file: E308558.

2. Product Ordering
KP 32 - 4 T - 8
1 2 3 4 5
1. Name of series: KP
2. Design No.: 32
3. Number of contacts: 4
4. T: Plug with female socket, ZM: M25X1.5 receptacle with sockets, Z1J: Receptacle with male contacts;ZP:Cable receptacle with male contacts.
5. Wire gauge: 7, 8, 9(Can fit 8.5-9.3mm cable OD. ),10,11,12

4.Dimensions

5.material

Pin contact	HPb59-1 brass	Socket contact	HPb59-1 brass
Contact & screw plating	Ag(Silver)	Ring nut	PA 66 UL 94 V-0
Male insert	PA 66 UL 94 V-0	Cable clamp	PA66 UL 94 V-0
M25X1.5 Receptacle	PBT UL 94 V-0	Contacts screw	Steel plate nickel
Housing cable connector	PA 66 UL 94 V-0	Seal rubber & O ring	Butadience-acry Rubber
Press screw	Nylon 66	Cable clipper	H62 brass

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
