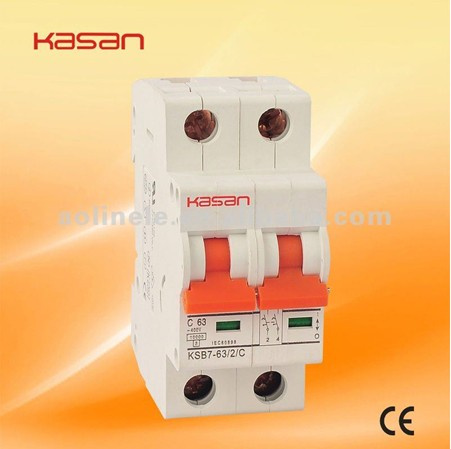

Ksb7 High Breaking Miniature Circuit Breaker (2P 63A)

Name: Ksb7 High Breaking Miniature Circuit Breaker (2P 63A)
Brand: all-electronics-online.com
SKU: 694904792
Availability: InStock
Rating: 4.5 (130 reviews)

Price:	US $ 0.9-0.95/Piece
Trade Terms:	FOB,CIF
Min Order:	240/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KSB7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number:	1p 2p 3p
Breaking Capacity:	Low Voltage Circuit Breakers
Structure:	MCB
Poles Number:	1
Certification:	CE

Product Description

The products of L7 belong to the advanced level of the nineties in the world instead of the older generation of kl7. They have protective function as shortage as overload, and are used in lighting distribution system in industry, commerce and dwelling, and protect fractional electric motors. And they also have many merits of high protective grade (up to IP20), high break capacity, reliable sensitive action, convenient, multiple assembling, long life etc. They are mainly adapted to the circuit of AC 50Hz, 230V in single pole, 400V in double, three, four poles for protecting overload and short circuit. Meanwhile, they are also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Specification Electrical Specification
Conforms To Standard Of Electrical: En60898(Iec898) GB10963-99
Rated Current(Ue): 230V/440V; 50/60Hz
Rated Breaking Capacity: 10ka Iec898(0.5~63A)
15ka Iec947-2(0.5~63A)
Short Circuit Breaking Capacity Of DC: Max. 48V(Kl7...., 10ka)Single Pole
Max. 250V(Kl7-DC, 6ka)Single Pole
Perfermance: C, D Charactisistic Curve
Max. Fuse That Can Be Connected To: 100agl(10ka)
Selective Grade: 3
Working Ambient Temperature: -5 To+40
Enclosed Protective Class: P40(Under Mounting)
Life: Electrical Mechanical Not Less Of 8000times Switching Operation
Not Less Of 20000 Times Switching Operation

Mechanical Specification
The Length Of Exposed Plane: 45mm
Enclosure Height: 80mm
Enclosure Width: 17.5mm Per Pole(Single Pole)
35mm: 1p+N(Two Poles)
Mounting Manner: Used For Track Of 35mm Of Iec Standard
Terminal Manner: Two-Function Terminal Can Connect With Busbar And Conducting Wire
Terminal Block Capacity: Wire 1-25mm2
Conducting Wire 0.8-2mm

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
