KSD301 Manual Reset Thermostat Switch Bakelite Temperature Controller with VDE certification
| Price: |
Negotiable/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
KSD301 bakelite manual reset |
| Reset: |
Manual Reset |
| Shell: |
Bakelite |
Product Description
KSD301-C Thermostat is one of our company products with bakelite shell, manual reset and VDE, CQC certification. The parameters of this model are as follow:
Features:Stabilized performance, high precision temperature controlling, small bulk, light, high reliability and little interference to wireless, etc.Technical parameters:
(Subject to product acknowledgement)1. Electrical performance: 10A/250V resistance load;
2. Operating temperature range: 45-150ºC optional, manual reset type. Tolerance of the operating temperature: ±(2.5-5%)ºC;
3. Terminal type: 250#, insert terminal,bowlegged 0-90º angle,optional; 187# insert terminal bowlegged 0-90º angle, optional, thickness: 0.5mm,0.8mm optional;
4. Durability: 10A/250V, 6000 cycles;
5. Electrical strength: no breakendown and flashorer under AC 1500V for 1 min;
6. Contact resistance: ≤50 mΩ;
7. Insulation resistance: >100 MΩ;
8. Type: normal closed type - the contacts open when the temperature raises, manual reset;
9. Shell protection grade: IP00;
10. Grounding type: connect the metal shell of the thermostat with the grounded metal parts;
11. Installation type: the same as the auto reset type.Approvals: TUV, CQCCompany profileXC Electronics(Shenzhen) Co., Ltd. was founded in 1996, located in Shenzhen, China. We produce and sale a full range of fuse tubes, blade fuses, fuse holders, KSD series thermostats, Car thermostats and ect.
We have a factory area of 15000 square meters, more than 600 employees, and all kinds of production testing equipments, annual production capacity reach 1.5 billion pieces. The company passed the ISO9001:2000 quality system certification in 2004, and has got the "CCC", "CQC", "TUV", "VDE", "UL", "UR", "CSA", "PSE", "KC" product safety certifications. At the same time we meet the requirements of RoHS, we passed the TS16949 certification in 2009, passed the ISO14000 certification in 2011 and accessed national high-tech enterprise certification in 2013.

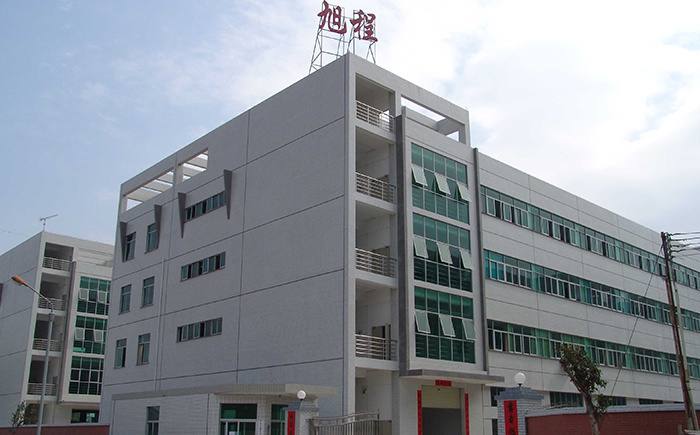

Since the establishment of company, we have established long-term cooperation relationships with many famous enterprises, such as Samsung, ACBEL, Glanze, Greatwall, Hisense, LG, Mideal, Motorala, Panasonic, Philips, ROHM, Skyworth, Bosch, etc. Factory photo

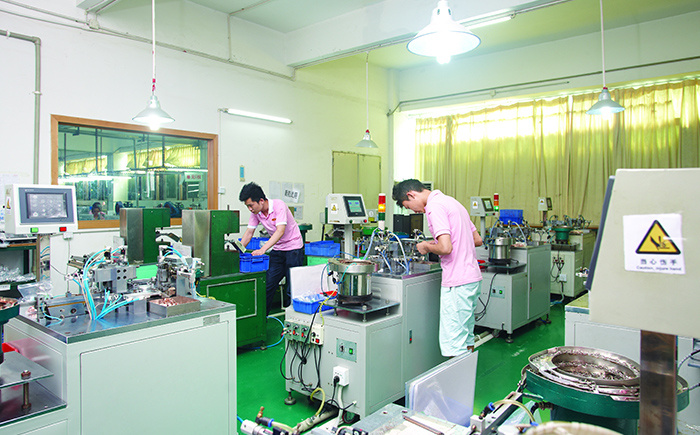

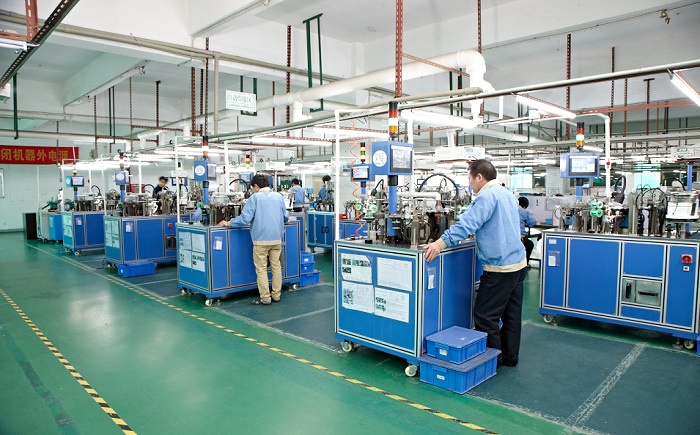

Production workshop
VDE Registered Manufacturer's Laboratory
XC Electronics(Shenzhen) Co., Ltd. Was founded in 1996, located in Longgang district, Shenzhen, solely owned by HongKong XGH Electronics Company. We produce and sale a full range of fuse tubes, blade fuses, fuse holders, KSD series thermostats, SSD series miniature thermostats, Car thermostats and ect.
We have a factory area of 15000 square meters, more than 600 employees, and all kinds of production testing equipments, annual production capacity reach 1, 300 million pieces. Base on the concept of "quality of survival", since the company established, we build a sound management to ensure the quality of each product. The company passed the ISO9001: 2000 quality system certification in 2004, and has got the "CCC", "CQC", "TUV", "VDE", "UL", "UR", "CSA", "PSE", "KC" and other international and domestic product safety certifications. At the same time we meet the requirements of RoHS and other environmental protections, we passed the TS16949 certification in 2009, passed the ISO14000 certification in 2011 and accessed national high-tech enterprises certification in 2013.
Since the establishment of company, we have established long-term cooperation relationships with many famous enterprises, such as ACBEL, Glanze, Greatwall, Hisense, LG, Mideal, Motorala, Neo-neon, Panasonic, Philips, ROHM, Skyworth, T&W, etc. Now we are establishing initial relationships with Bestec, Canon, Chicony, DELL, Delta, Flestronics, FujiXEROX, Haier, Huntkey, liteon, Sharp, Toshiba and so on.
XC company has always pursued the policy of "excellent quality, preferential price, quality service" to meet the needs of customers.
