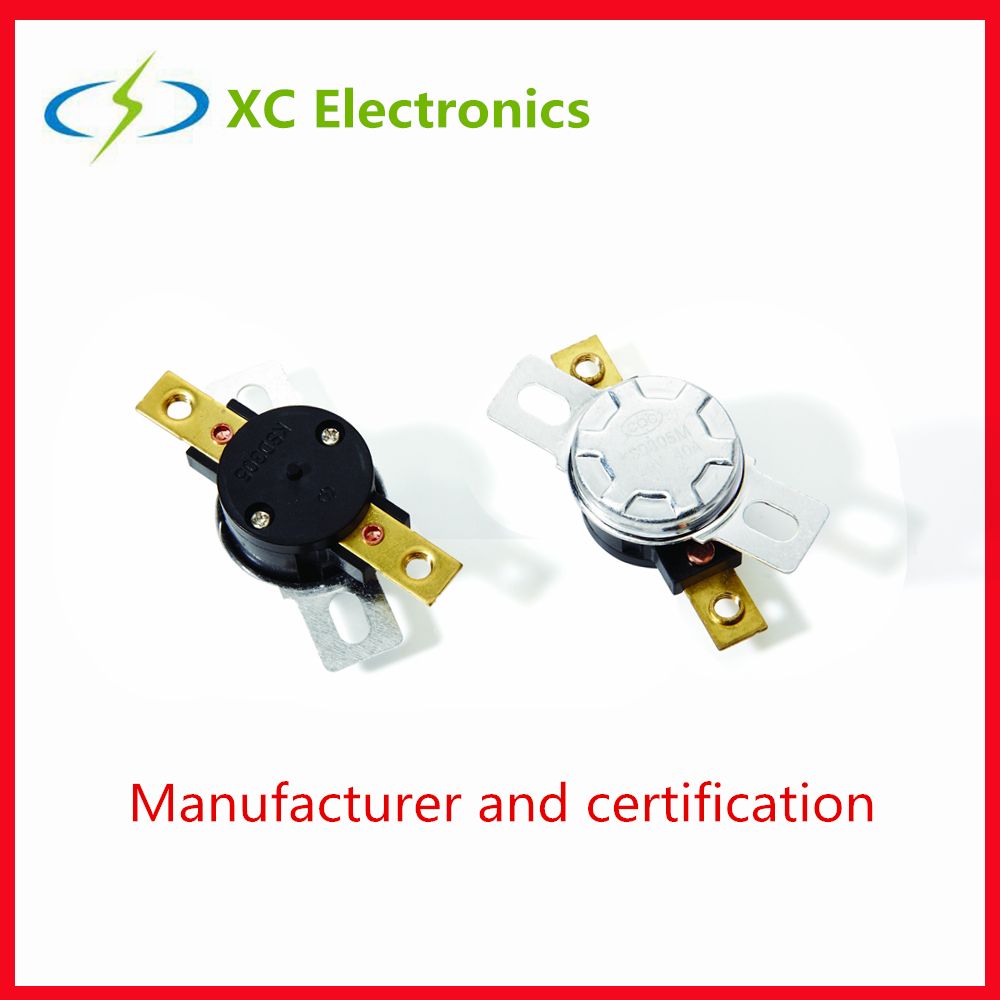

KSD305 Manual Reset Thermostat Switch Bakelite Temperature Controller 40A250V

Name: KSD305 Manual Reset Thermostat Switch Bakelite Temperature Controller 40A250V
Brand: all-electronics-online.com
SKU: 834472985
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KSD305
Reset:	Manual Reset
Shell:	Bakelite

Product Description

KSD305 Thermostat is one of our company products with bakelite shell, manual reset and big current endurance. The parameters of this model are as follow:

Application:
This series products are used in electric water heater ,electric heating equipment, electric welder, steam generator and other high power electric equipments which need to be protected.

Technical parameters:
(Subject to product acknowledgement)
1. Product model : KSD 305;
2. Rated electeic performance : AC 250V/50Hz, ≤40A(Resistive Load);
3. Regular electric strength : AC 50Hz 1500V/1min without puncture, flashover;
4. Regular isolation resistance : >300 M Ω
5. Contact type : SPST;
6. Type : Normally closed, temperature raises, contactors open;
7. Durability : CQC 6000 cycles;
8. Operation temperature range : 55ºC-140ºC;
9. Temperature tolerance: ±3ºC,±5ºC(can be customerized);
10. Connection type :Fastening screw;
11. Structure:Built-in;
12. Shell protection grade : IP00;
13. PTI of insulating material : PTI 175;
14. Heating and fire resistance : B

Approvals: CQC

Company profile
XC Electronics(Shenzhen) Co., Ltd. was founded in 1996, located in Shenzhen, China. We produce and sale a full range of fuse tubes, blade fuses, fuse holders, KSD series thermostats, Car thermostats and ect.
We have a factory area of 15000 square meters, more than 600 employees, and all kinds of production testing equipments, annual production capacity reach 1.5 billion pieces. The company passed the ISO9001:2000 quality system certification in 2004, and has got the "CCC", "CQC", "TUV", "VDE", "UL", "UR", "CSA", "PSE", "KC" product safety certifications. At the same time we meet the requirements of RoHS, we passed the TS16949 certification in 2009, passed the ISO14000 certification in 2011 and accessed national high-tech enterprise certification in 2013.
Since the establishment of company, we have established long-term cooperation relationships with many famous enterprises, such as Samsung, ACBEL, Glanze, Greatwall, Hisense, LG, Mideal, Motorala, Panasonic, Philips, ROHM, Skyworth, Bosch, etc.

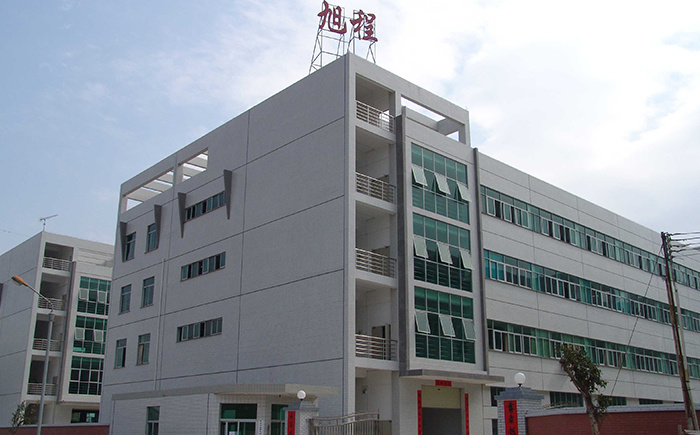

Factory photo

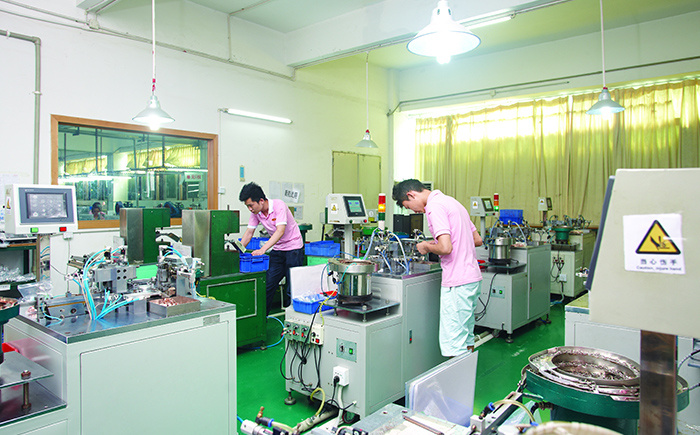

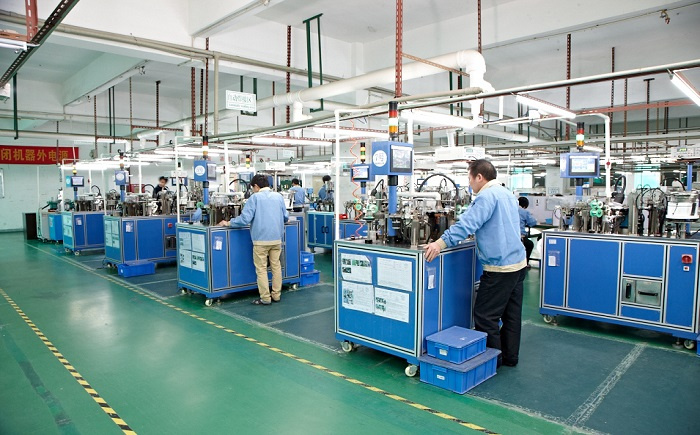

Production workshop
