Enping City Baofeng Electronic Equipment Factory >> Kx-D3822 Professional UHF Wireless Microphone

Kx-D3822 Professional UHF Wireless Microphone

Kx-D3822 Professional UHF Wireless Microphone
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: KX-D3822
Brand: Bkr
Frequency Range: 500-900MHz
Channels: 2*200 Channels
Type: Discussion
Suitable: PA System, Stage, Conference
Size Of Receiver: 480*180*44mm
Using Distance: 50-80m
Hi-Fi: Hi-Fi
Application: Commercial
Certification: CCC
Monitor: LCD Screen

Product Description

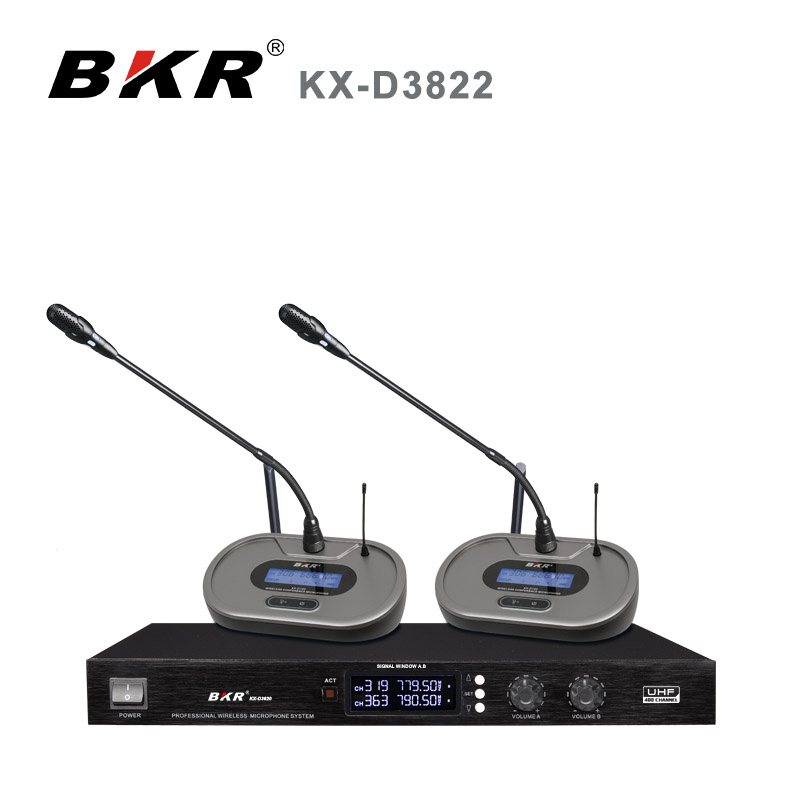

KX-D3822 Professional UHF Wireless Microphone

Function:

*2 channels wireless microphone.Digital UHF adjustable frequency.
*IR automatic. totally 400(2*200) frequency.Stepping up/down by 0.25MHz.
*Every microphone can use in every channel.
*20 controllers can used simultaneously.
*LCD screens(black background and write word) show working status on the receiver and emitter.
*Microphone have mute key.
*There are 2 balanced output and 1 mixed unbalanced output,2 rubber antennas.
*Consumption is 80mA. AA 1.5V*3 battery power supply,support 8 hours.
*Light ring on the microphone head will display working status.
*Working distance: 50-80 meter
*It's suitable for various kinds of conference and performance occasion.


The whole wireless microphone parameter:
Channel number: 2
Oscillation Mode: PLL syntheized
Modulation Mode: FM
Carrier Frequency Range: UHF 500~900MHz
Frequency Stability: +0.001%
Max. Deviation Range: +50kHz
S/N Ratio: > 105dB
T. H. D: < 0.5%@1kHz
Sensitivity: 1.2/UV@S/N=12dB
Power Supply: DC 12~17V
Audio Output: Independent: 0-400mV
Mixed: 0-300mV

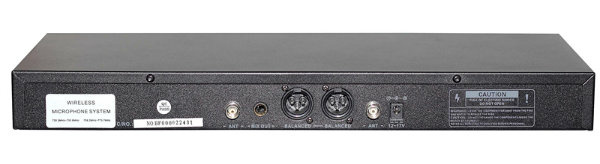

Back panel of the wireless microphone receiver:

Balanced XLR output:    2
Unbalanced 6.3 output: 1

Transmitter of wireless microphone:



Two function keys: one for mute(left) and one for power on/off(right)

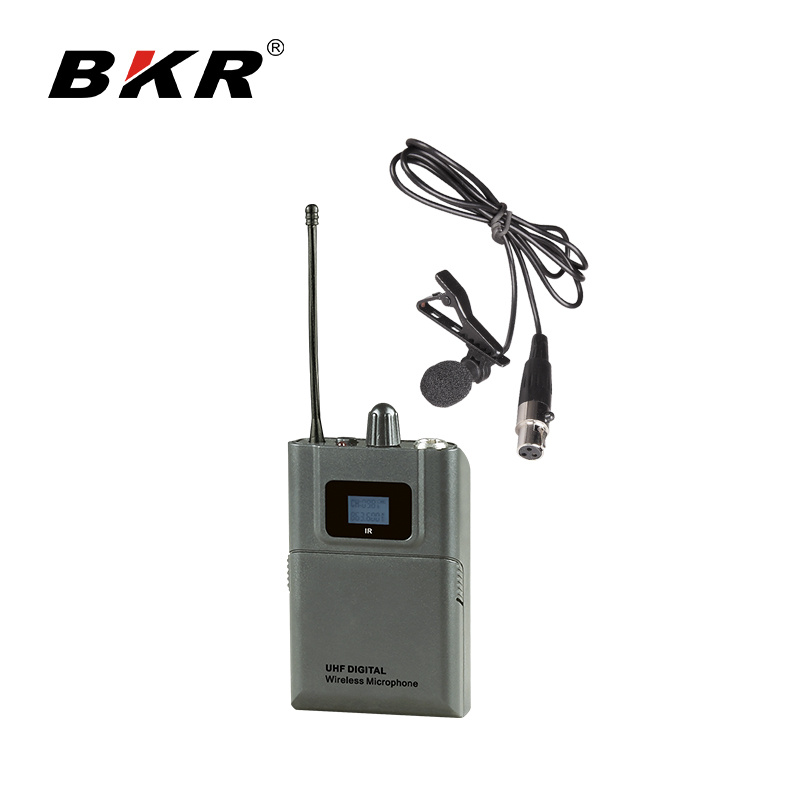

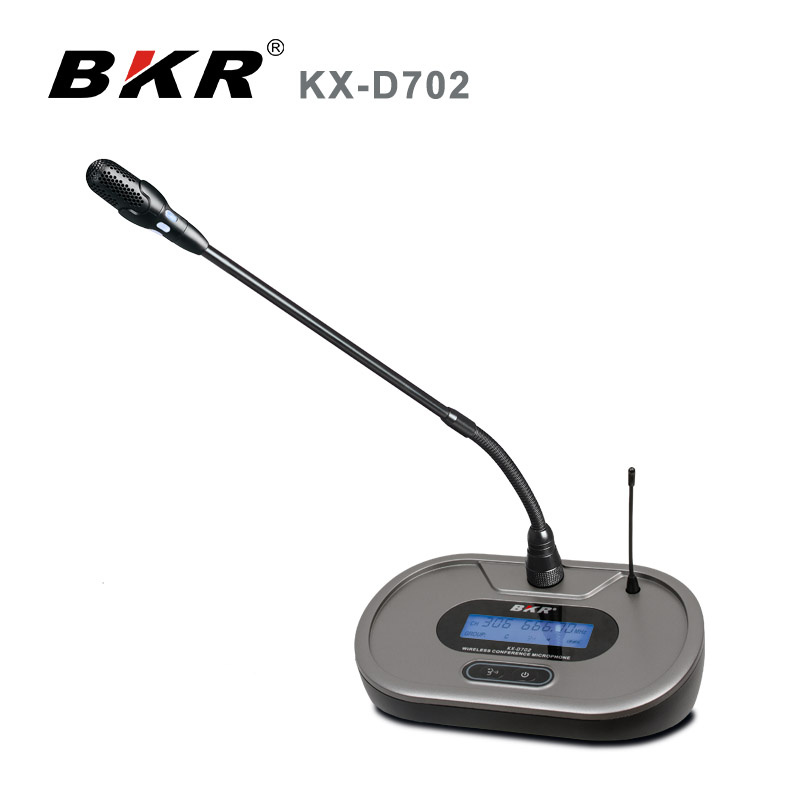

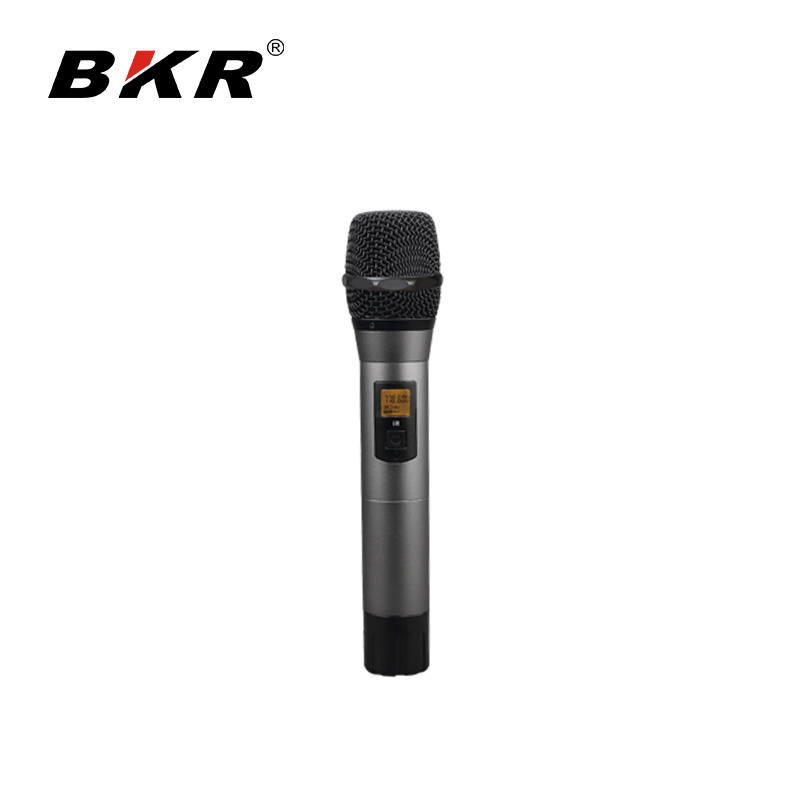

Option wireless microphone transmitter as following:







Enping BaoFeng Electronic Equipment Factory was established in 2006 and located in microphone town -Enping city, Guangdong Province. We are a high-tech enterprise which assembling of designing, developing, manufacturing, selling and after-sale serving as a whole. Our products mainly include digital wireless conference system, wireless conference microphone, wireless microphone and other audio equipment etc.

Through our efforts, our R&D group had already developed more than 30 products and gained several national patents. Out products sell well in domestic and oversea. The quality of our products has got much affirmation from our customers.

Our company has got mature experience of OEM and ODM. We take "Technique Advanced, Investigate Bravely, Quality First and Customers Superior" as our principle to provide the best products and service to customers.

We sincerely welcome worldwide clients to cooperation with us and create mutually beneficial business relation in the future.
