Kx-D712 Bodypack Wireless Microphone System

Name: Kx-D712 Bodypack Wireless Microphone System
Brand: all-electronics-online.com
SKU: 725383852
Availability: InStock
Rating: 4.4 (60 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX-D712
Hi-Fi:	Hi-Fi
Application:	Commercial
Certification:	CCC
Monitor:	LCD Screen

Product Description

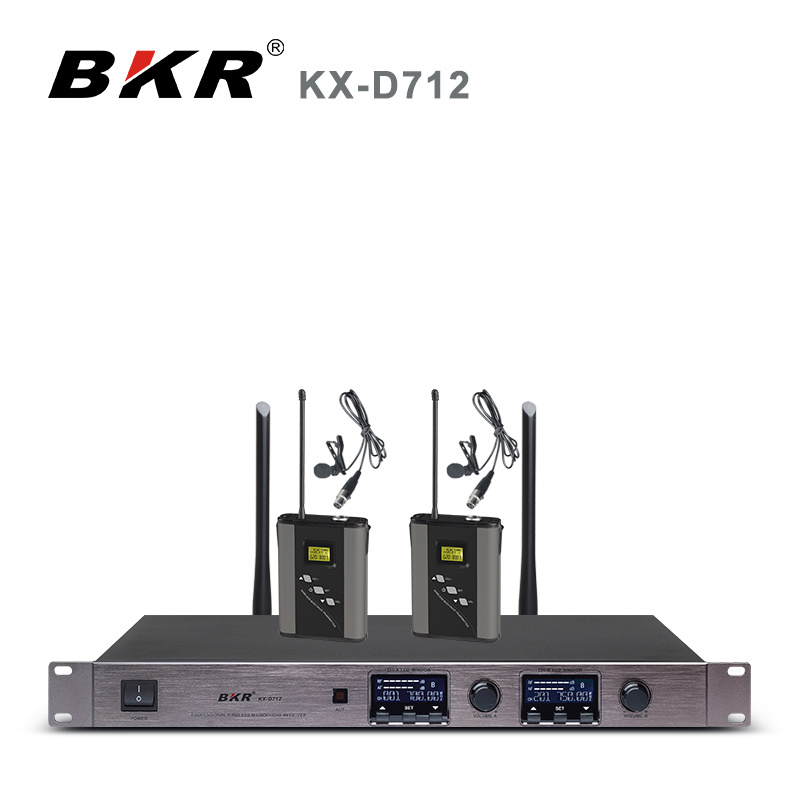

KX-D712 bodypack wireless microphone system

Function:
*Digital technology designed.
*2 channels.Adjustable frequency.
*IR automatic. totally 400(2*200) frequency.
*Microphone can be used in every channal.
*20 controllers can used simultaneously.
*LCD screens show working status on the receiver and emitter.
*There are 2 balanced output and 1 mixed unbalanced output,2 rubber antennas.
*Consumption is 100mA. 1.5V AA*3 battery power supply,support 10 hours.
*Light ring on the microphone head will display working status.
*Working distance: 50-80 meter
*It's suitable for various kinds of conference and performance occasion.

Paramter:
Channel number: 2
Oscillation Mode: PLL synthesized
Modulation Mode: FM
Frequency Range: UHF 500~900MHz
Frequency Stability : ±0.001%
Max. Deviation Range: ±50KHz
S/N Ratio : >105dB
T.H.D: <0.5%@1KHz
Sensitivity: 1.2/UV@S/N=12dB
Power Supply: DC 12~17V
Audio Output: Independent: 0-400mV
Mixed: 0-300mV

Back panel of the receiver:

Balanced XLR output: 1
SQ sensitivity adjustment knob: 2
Mixed unbalanced 6.3 output : 1

Option transmitter as following:

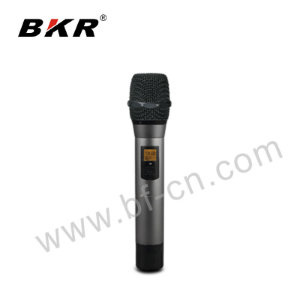

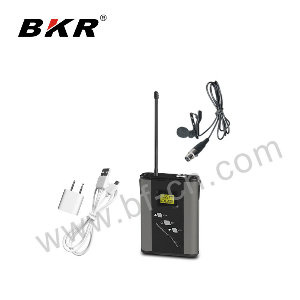

wireless handheld microphone(KX-GLD07H) wireless bodypack microphone(KX-BLD05T) LI-battery
