| Prod Model: |
KYN28-12 |
| No. Of Phase: |
3 |
| Application: |
Power Transmission |
| Rated Voltage: |
12kv |
| Product Name: |
Switchgear Cubicle |
Product Description

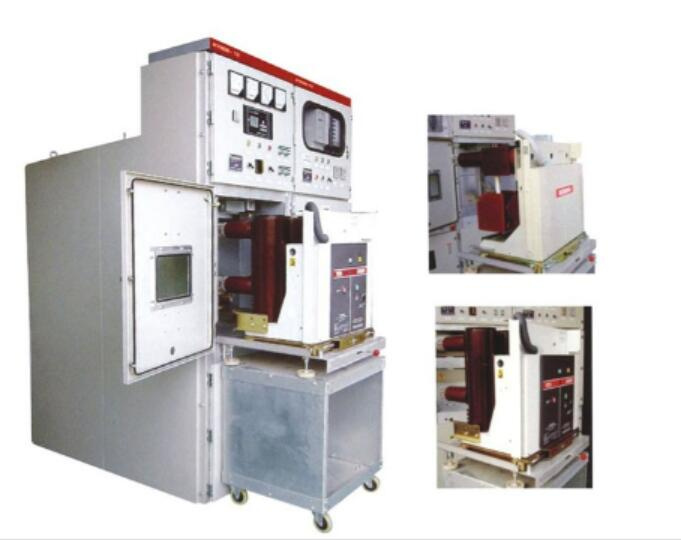

KYN28 indoor metal-clad withdrawable 3 Phase switchgear
1.Product descriptions
It is a complete set of power distribution devices for 3.5kV ~ 12kV with three-phase AC 50Hz single bus ,single busbar with bypass system or dual bus system for power receiving and transmission. It can meet the request for all kinds of power plants, substations or mining and industrial enterprises. This switchgear is indoor device, which can be equipped with various models of the main circuit breaker, with the features of double-sided maintenance, and vertical self-stand installation, it is especially for frequent operation occasions.
2. Techical Specification
| No | Item | Unit | Data |
| 1 | Rated voltage | KV | 12 |
| 2 | Rated current | A | 630,1250,1600,2000,2500,3150,4000 |
| 3 | Rated short -circuit current | KA | 20,25,31.5,40,50,63 |
| 4 | Rated peak withstand current | KA | 50,63,80,100,125,160 |
| 5 | Short-time withstand current(4S) | KA | 20,25,31.5,40,50,63 |
| 6 | Insulation:Power frequency/lightning | KV | 42/75 |
| 7 | Protection class | | IPX4 |
| 8 | Optional circuit bearkers | | ZN63A(VS1),VD4,VBP,EV12 ect |
| 9 | Operating mechanism | | Spring mechanism,Permanent magnetic actuator |
| 10 | Operational power supply | V | DC:110,220;AC:110,220 |
| 11 | Overall dimension(Width*Depth*Height) | mm | 800(650,1000)X1500(1700)X230 |
| 12 | Weight | kg | 800 |
3.Normal Operating Conditions
Ambient air temperature : -5°C ~ +40°C;daily average ≤35ºC ;
Altitude: ≤1000m;
Relative humidity: daily average ≤95%, monthly average ≤90%;
Earthquake intensity: ≤8 degree
Applicable occasions should be free from inflammables, explosives, corrosives and severe vibration
4.Payment and shipment
| Trade Terms: | FOB,CIF.EXW |
| Payment Terms: | T/T,L/C.Western Union,Paypal |
| Payment Condition: | 30% as deposit Paid in advance.the Balance paid before the Shipping |
5.Main characteristics
Concise and coordinating product appearance
Frame structure with high strength and high precision.
Safe and tidy auxiliary trunking
Valve mechanism with high strength and high precision
Perfect and reliable preventing misoperation system
Quick action of pressure relief plate
Simple and reasonable design for metering room
Scientific and delicate metal plate manufacturing technology
