Kyn28 Switchboard Gas Insulated Switchgear (GIS) Electrical High Voltage Switchgear
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
KYN28A-12 |
| Name: |
Electrical High Voltage Switchgear Kyn28 |
| Reted Frequency: |
50Hz/60Hz |
| Application: |
Industrial, High-Rise Buildings |
| Standard: |
ISO9001:2008/IEC Standard |
| Rated Voltage: |
12kv |
| Room Design: |
H.V.Transformer and L.V.Room |
| Switch: |
Cabinet Box |
| Special Service: |
Customized |
| Switchgear: |
Hv/LV |
| Model: |
Kyn28 |
Product Description
Manufacturer Factory Price Gas Insulated Switchgear(GIS) electrical high voltage switchgear KYN28
Product Description | High and Low Voltage Complete Sets of Series Products |
| Model KYN28A-12 (GZS1-12) |
| Indoor AC Metal Clad Intermediate Switchgear Cabinet |
KYN28A-12 (GZS1-12) Model Indoor AC Metal Clad Intermediate Switchgear Cabinet. It is suitable for three-phase AC rated voltage 12KV, rated frequency 50Hz power system to receive and distribute the electrical energy and to control, protect and monitor the circuit.
Meet the standard: GB3906-97 3-35KV AC Metal-enclosed Switchgear, GB11022-89 High-voltage Switchgear General Technical Conditions, IEC298 (1990) AC Metal-enclosed Switchgear and Control Equipment With Rated Voltage Above 1kv and 50kv or Below , DL404-97 Order Technical Conditions for Indoor AC High Voltage Switchgear Cabinet.
Features:1. Metal-enclosed and separately arranged, with high protection Category
2. Enclosure with Front -Cabinet protection and back-cabinet protection, the Board can be arranged and fixed along with the wall to save the spaces
3. Protection Category of enclosure reaches to IP4X,
4. Elec.Line Cabinet with full spaces for mount and arrange in-coming and out-going lines for the convenience of Fixing, protecting and maintaining |
| Item | Unit | Specification |
| Rated Working Voltage | kV | 7.2,12 |
| 1Min Power Frequency Withstand Voltage | kV | 32, 42 |
| Lightning Pressing Voltage (Whole-Band) | kV | 60, 75 |
| Rated Frequency | Hz | 50 |
| Main Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
| Sub-Busbar Rated Currenct | A | 630, 1250, 1600, 2000, 2500, 3150* |
| 3S Thermal Stability Currenct (Effective Data) | kA | 16, 20, 25, 31.5, 40, 50 |
| Rated Dynamic Stability Currenct (Peak Value) | kA | 40, 50, 63, 80, 100, 125 |
| Protection Categoty | | Enclosure:IP4X, CB Compartment open: IP2X |
Environmental Requirement | Normal Operation Conditions | 1. Altitude 1000m
2. Ambient temperature: -10°C ~ +40°C (temperature can be as low as -25°C during transportation and storage)
3. Relative humidity: daily relative humidity 95% on average; monthly relative humidity 90% on average
4. Seismic scale of earthquake 8
5. The electrical high voltage switchgear KYN28 is applicable to category II contaminated environment.
|
| Special Operation Conditions | If the Gas Insulated Switchgear will be used in conditions that exceed the normal environmental conditions, users shall
negotiate with the manufacturer. |
ApplicationThe electrical high voltage switchgear KYN28 is mainly used in power plants, small- and mediumsized power generators, industrial and mining enterprises, and secondary substations of power system for power receiving, power transmission, and startup of large-sized high-voltage motor in order to implement control, protection, and monitor.
|
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. is located in Baoding City,Hebei Province,China. with an advantageous geographical location and convenient transportation. Our company covers an area of 30,000 square meters, the building area of 16,000 square meters. The registered capital of the company is RMB 81,000,000. oil-immersed power transformers,
dry-type transformers,
box-type substation,
electrical high voltage switchgear KYN28
and a variety of special-type transformers.
The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.

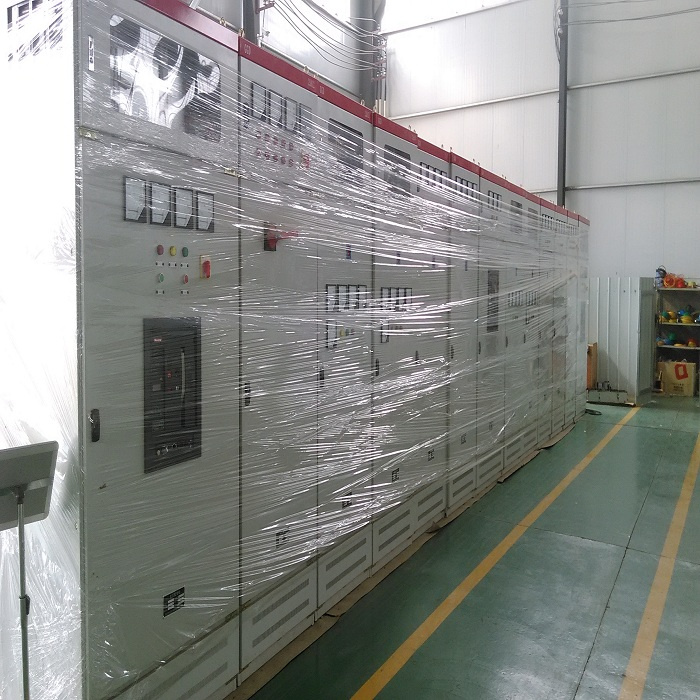

The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product . Packing:1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement
Delivery Details : 10-20 days according to order quantities
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.

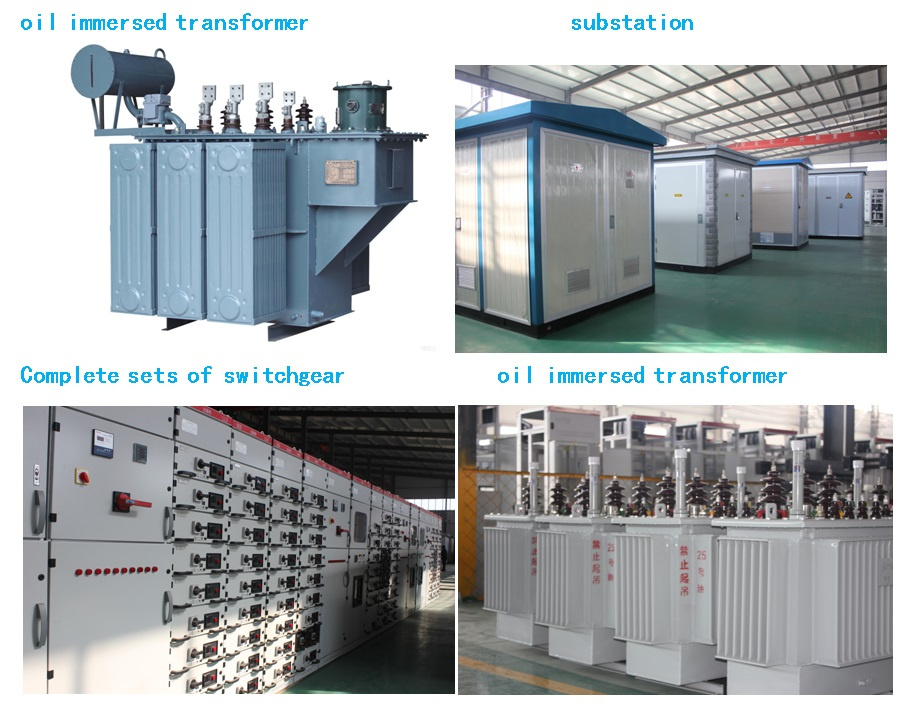

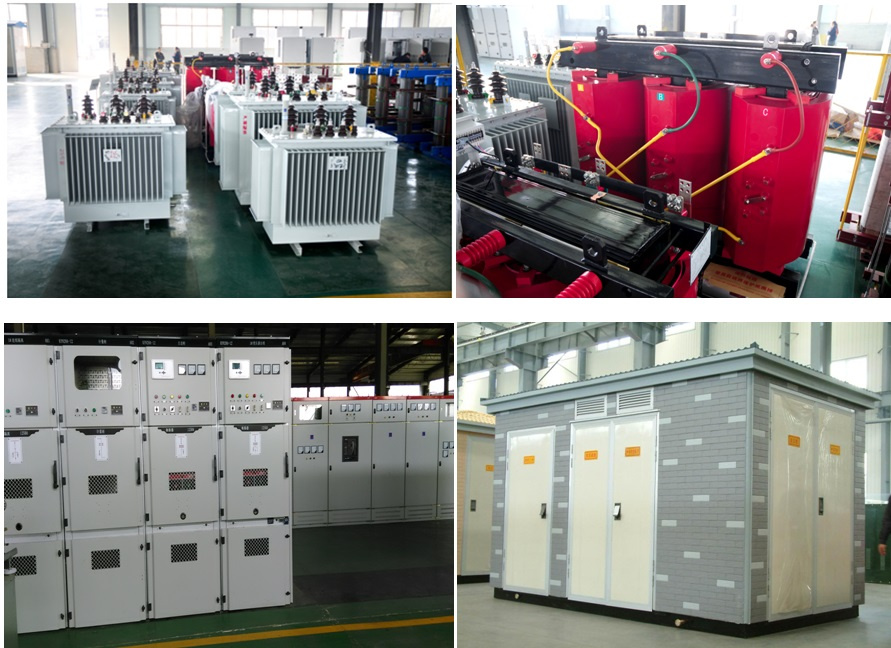

The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
