Yueqing City Full Imp. & Exp. Co., Ltd. >> KYZ 35 Diode

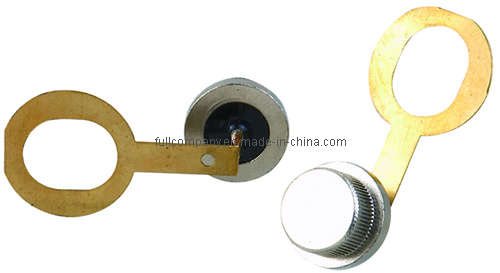

KYZ 35 Diode

Name: KYZ 35 Diode
Brand: all-electronics-online.com
SKU: 683655415
Availability: InStock
Rating: 4.3 (119 reviews)

Price:	Negotiable/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KYZ35 Diode
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Optoelectronic Semiconductor
Material:	Compound Semiconductor
Type:	N-type Semiconductor
Package:	SMD

Product Description

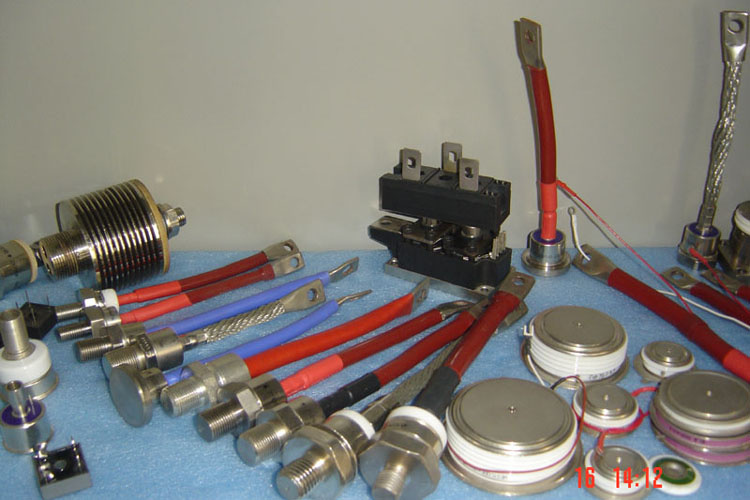

We are manufacturer in China wenzhou city, our main products are kind of diode, thyrostor, rectifier bridge, power module. etc. Hope we can have chance to enter business with you at last.

DIODE:
Standard Recovery Discrete
Standard Recovery Module

SCR:
Phase Control Discrete
Phase Control Module
Fast Discrete
Fast Module
Triac

BRIDGES:
Single Phase
Three Phase

Standard Recovery Discrete 2

Features
Wide current range
Peak reverse voltage up to 1600V
High surge current capability
Stud cathode and stud anode version

Typical Applications
Power supplies
Machine tool controls
Power supplies
Battery chargers
Welders

Parameter	Value				Units
Type number	D6N(R)..	D12N(R)..	D15N(R)..	D25N(R)..
VRRM	400 to 1600	400 to 1600	400 to 1600	400 to 1600	V
IF(AV)	6	12	15	25	A
@ TC	85	85	85	85	°C
VFM @ 25°C	1.50	1.50	1.50	1.50	V
IFSM (50Hz)	120	200	210	260	A
IFSM (60Hz)	130	220	230	280	A
Rth(JC)	2.50	2.00	1.5	1.2	K/W
T J	-40 to 150	-40 to 150	-40 to 150	-40 to 150	°C
T Max. allowed mounting torque +0 -20%	1.5	1.5	1.5	1.5	N.m

Fivefine power Established in 1998, which is the national non-regional corporation that have the advantages of install-ing simply, using conveniently, beautiful apprearance, high reliability, easy to whole loyout, simply outline design, shorten the R & Dperiodes, etc, We are going in for the development, production and sale of the electric connection protection system products of industrial automated equipment.

Business items: Kind of machine tool energy chains, various rectifiers, diodes, thyristor, power semiconductor modules, and cable accessories & power fitting, such as cable lugs, clamps, connector, heat shrinkable tube, cable tie, egg incubator. etc.

The corporation has been certified to ISO9001: 2000 and ISO 14000. The products have owned production license and manufactured according to international standard. All products have passed test by center of Quality inspection of electric power of nation electric power corporation, China electric Power research Institute and Xian high-voltage Research Institute. etc.
