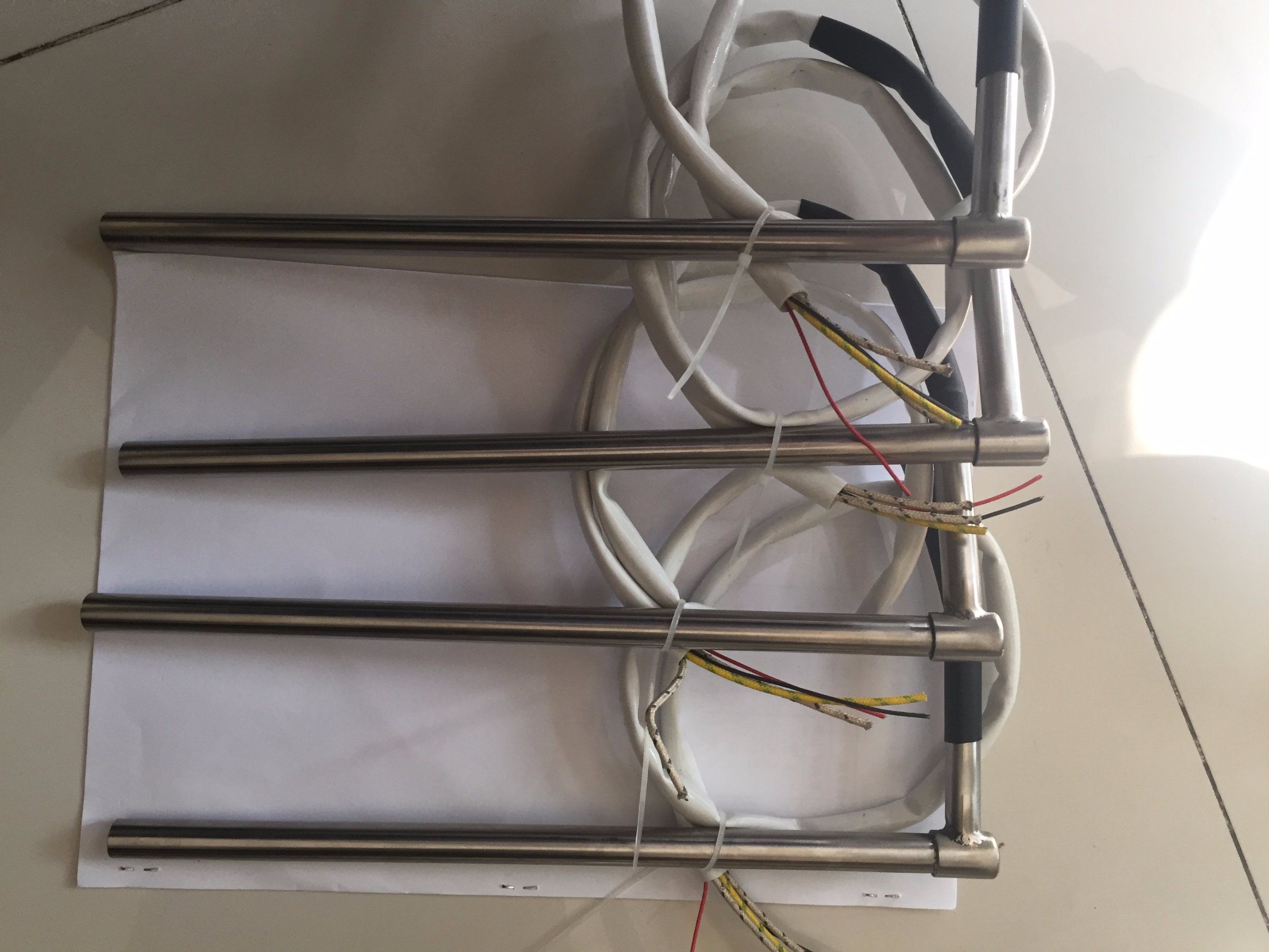

L Type Cartridge Heater with K Type Thermocouple

Name: L Type Cartridge Heater with K Type Thermocouple
Brand: all-electronics-online.com
SKU: 727059022
Availability: InStock
Rating: 4.9 (140 reviews)

Price:	US $ 6-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	JY-CH012
Voltage:	110V or Customized
Wattage:	700W or Customized
Name:	Cartridge Heating Element
Logo Mark:	Make as Customer Required
Sheath Material:	SUS304, 321, 316, 310
Resistance Tolerance:	+10%, -5%
Max Working Temp:	800 Degree
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Heating Resistance Wire Heating
HS Code:	85168000

Product Description

High Immersion Qualified Cartridge heating element
is cylindrical electrical heating elements. Protected with a stainless steel sheath, their watt density can reach 25 W/cm2 and their operating temperature can go up to 800°C (1472°F)

Mostly cartridge heater is used for heating up solids such as injection presses heating plates or various tools, cartridge heater can also be used for heating up water of gases under certain conditions. Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry, etc . cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries

Various cartridge heater technologies are available. The choice of technology will depend on technical specifications required and the application. Unless you know exactly which product you are looking for, we will recommend you the best solution for your needs.

Technical Detail:

1 Tube diameter: Φ3mm-Φ30mm
2 Tube Material:SS304;SS316,SS321,NICOLOY800 etc
3 Insulation Material:High-purity Mgo
4 Reisistance wire element:Ni-Cr or FeCr
5 Lead Connection Option: Crimped or Swaged leads
6 Lead and type of connection leads, 10" Fiberglass Standard(Wire options,silicone high temperature frberglass).

Heat intensity	Not exceeding 30Wcm2 (advisable)
Power	Depends on the dimension
Escape of current (when cold)	<=0.1mA a 242 v.
Insulation (when cold)	5 Min Ohmios 500 Watts minimum
Dielectric strength	1500v. 1/seg
Working temperature	750ºG max.
Tolerance of length	+/-1.5%
Tolerance of diameter	-0.01 a -0.06 m/m
Tolerance of cut of connexion	+/-15 mlm
Power tolerance (w)	5 % - 10 %
Cold areas	Depends on length and diameter 5-25mm

Features:
Commom cartridge can be devideded :
1) High power density (heat area sufuce power 10~25w/cm2)
Working temperature≤450 degrees.
2) Middle,low power density (heat area sufuce power 5~11/cm2)
working temperature≤ 300 degrees
Voltage:12~250V (or as requirment)
High Density Construction
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments
Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°C.

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
