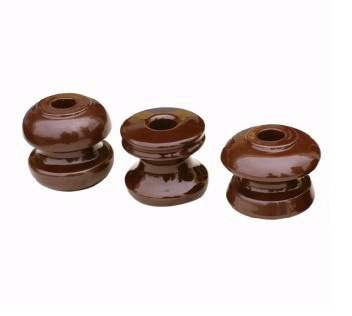

L. V. Shackle Insulator

L. V. Shackle Insulator
Price: US $ 0.28-0.3/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50000/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: 1617
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight: 0.4kg: Size Can Be Customized
Structure: Shackle Insulator
Material: Porcelain
Type: A Type Insulator
Application: Low-voltage
Size Of Bearing Capacity: 9kn
Brand: Refine
Color: Brown

Product Description

Model No.: 1617
Material: Porcelain
Rated Voltage: Low Voltage
Power frequency withstands voltage-dry: 20KV
Power frequency withstands voltage-wet: 10kV
Minimum Creepage distance (mm): 460mm
Minimum mechanical transverse strength: 13.5kN
Standard: BS/ANSI

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.


Shackle insulators have more model types, for your reference under below is the main technical parameter of each model type.
Fig No. 2 1 1 3 3 3
Class ANSI ED-2(C) ED-2(B) ED-2(B)1 1617 1618-1 1618-2
Main Dimension (mm) H 80 76 76 65 75 75
D 80 89 89 76 89 89
d 50 48 48 46 55 55
d1 22 21 17.5 17.6 17 17
R 6 10 10 9 10 13
Mechanical Failing Load (kN) 13 12 12 9 10 13
Minimum Flashover Voltage Power Frequency Dry (kV) 25 25 25 20 20 25
Wet(kV) 15 15 12 10 10 12

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
