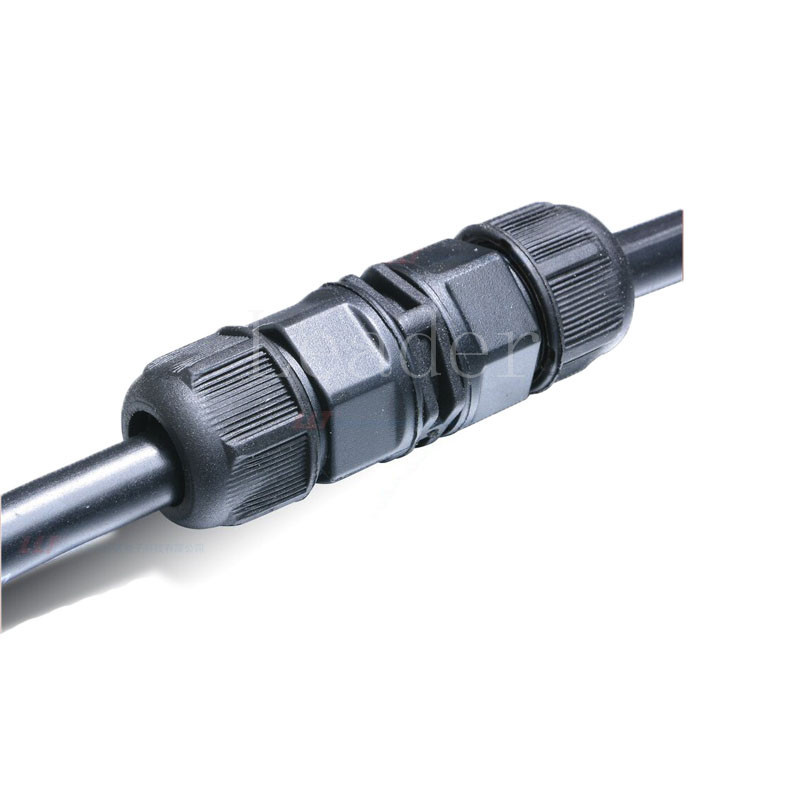

L16 3 Pole Screw Pin LED Light Waterproof Wire Connector

Prod Model:	121
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	16 3 Pin Waterproof Connector
Material (External):	Nylon
Color:	Black
Degree Of Protection:	IP67
Pollution Degree:	2
Pin:	3
Max Cable Od:	7.5mm
Contact Material:	Phosphor Copper with Nickel Plated
Feature:	Screw Pins
Sealing Material:	Silica Gel
Type:	Socket Terminals
Material:	Copper
Application:	Power
Certification:	Ce,RoHS,CCC
Brand:	Leader

Product Description

L16 3 pole led light coupler screw pin wire connector

Specifications:

Model No.	L16C03
Material	Connector Shell	Nylon (PA66)+GF UL94V-01/16''
	Contact	Phosphor copper with nickel plated
	Sealing	Silica Gel
Property	Current Rating	15A
	Voltage Rating	300V
	Contact Resistance	<5m
	Insulation Resistance	1000M at DC 500V
	Breakdown Voltage	1000V/1minute
	Temperature Rating	-40ºC~+105ºC
	Waterproof Rating	IP67
	Cable Max. Diameter	7.5mm
	Pins Range	2,3
Certificate	CCC; CE; ROHS




Our service:

We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your questiong detailed.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which items you are interested and the reasonable price will be provided you upon.
