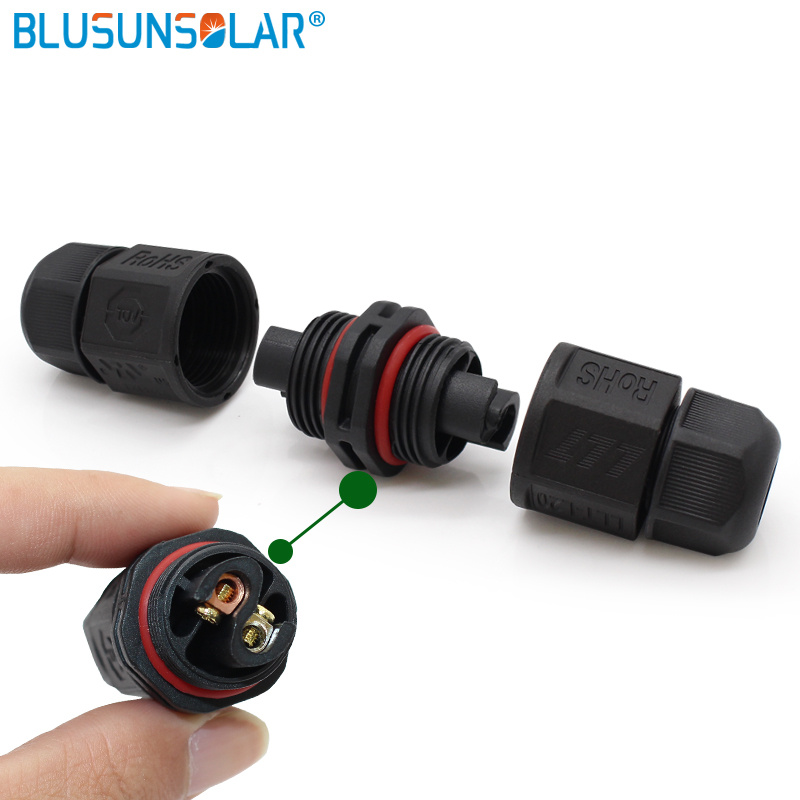

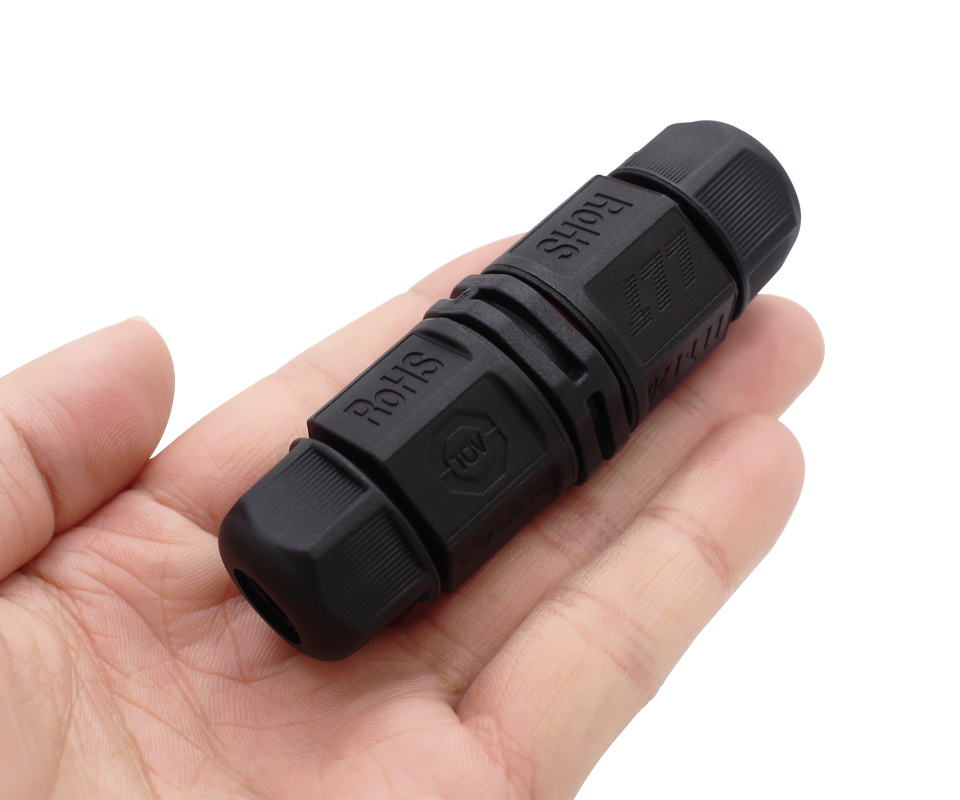

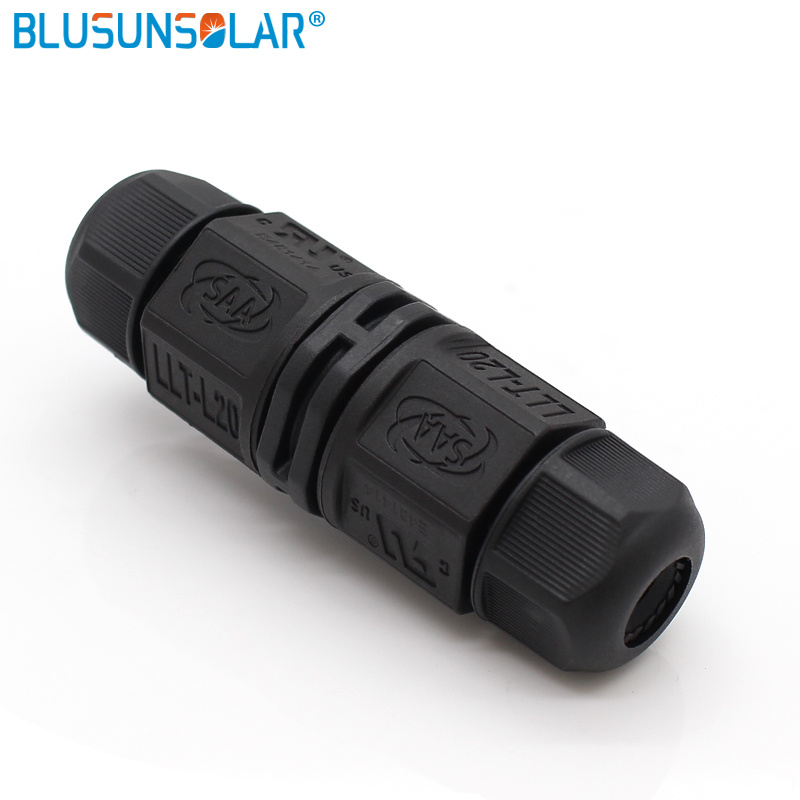

L20 Lock Wire 2 Pole Male Female Connector LED
| Price: |
US $ 3.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
L20-2P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Contact No: |
2 Pin |
| Voltage Rating: |
250V |
| Current Rating: |
20A-5A |
| Wire Gague: |
1.0mmsq - 0.2mmsq |
| Panel Thickness: |
1mm-3mm |
| Mechanical Life: |
3000 Mating Cycles |
| Operating Rating: |
-40 Degree - +105 Degree |
| Waterproof Level: |
IP68 |
| Pin Layout: |
2p/3p/4p/5p/6p/7p/8p |
| Cable Range: |
3.5mm - 12mm |
| Type: |
Socket Terminals |
| Material: |
Copper |
| Application: |
Conduct Electricity |
| Certification: |
Ce |
| Brand: |
Llt |
Product Description

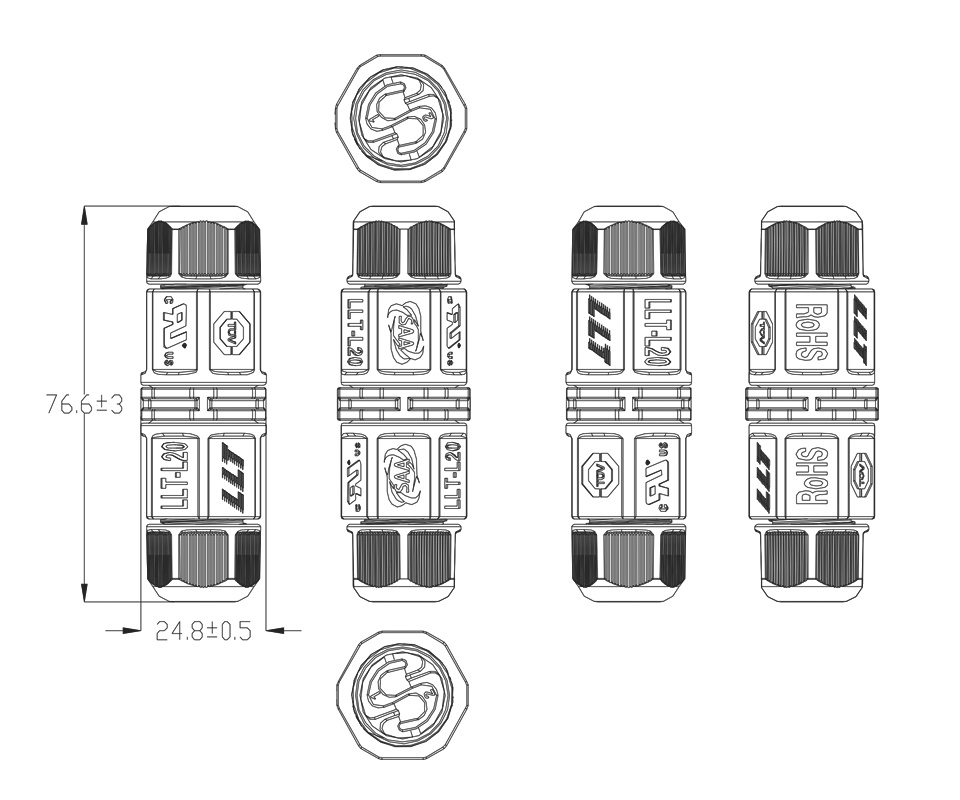

Specifications
wire to board waterproof connector
* IP68 protection degree
* Max. Cable OD: 3.5mm-8.5mm
* 25A-15A, 250V
* Factory price
| Contacts No | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Voltage rating | 250V | 250V | 250V | 110V | 110V | 110V | 110V | 110V |
| Current Rating | 15A | 15A | 15A | 5A | 5A | 5A | 5A | 5A |
| Wire Gange | <=1.0mmsq | <=1.0mmsq | <=0.75mmsq | <=0.5mmsq | <=0.3mmsq | <=0.2mmsq | <=0.2mmsq | <=0.2mmsq |
| Mechanical life | 3000 mating cycles |
| Operating rating | -40 degree -- +105 degree |
| Waterproof level | IP 67 |
| Pin layout | 2 Pole | 3 Pole | 4 Pole | 5 Pole | 6 Pole | 7 Pole | 8 Pole | |
| Cable range | 7.5mm-10.0mm |
2 pole M14 male panel, rear mounted, wire to panel connector
* IP68 protection
* CCC, CE,ROHS certificated
* 3.5-12mm Max. Cable OD
* Panel rear mounted, soldering connection
* 12 months quality waranty | Applications |
| PV inverter |
| Electric vehicle |
| Medical equipment |
| Interactive Smart Grid |
| Automation machine |
| Industrial PC |
| Marine device |
| Outdoor LED display |
| Outdoor LED lighting |
