L29 Connector 7/16 RF Connector

Name: L29 Connector 7/16 RF Connector
Brand: all-electronics-online.com
SKU: 778605695
Availability: InStock
Rating: 4.4 (130 reviews)

Price:	US $ 0.01-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	XT-L 009
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	L29 Connector 7/16 RF Connector
Withstanding Voltage:	500V RMS
Impedance:	75ohm
Insulation Resistanc:	More Than The 1000mohm
Frequency Range:	DC-1GHz
Vswr:	Max 1.3
Usability:	500 Cycles Min
Temp.Range:	-25~+65
Applicable Standard:	RG6 Rg11
Product Number:	Gold-Plated Pure Copper

Product Description

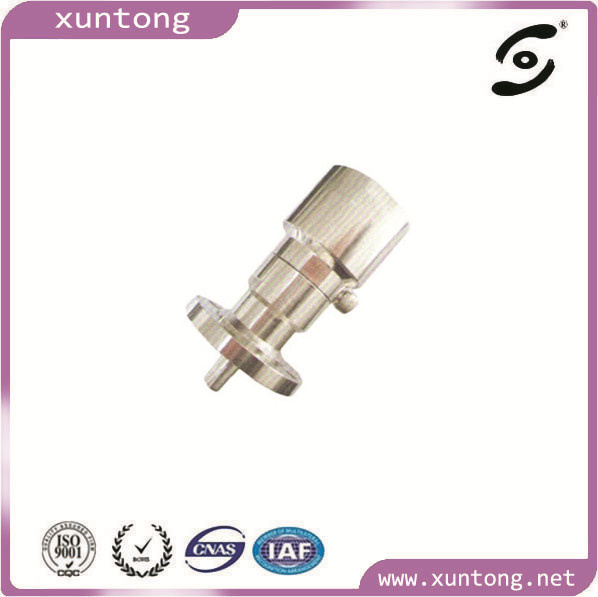

L29 connector 7/16 RF Connector

PRODUCT SPECIFICATIO

Matching Impedance	75 ohm unbalanced coaxial to 120 ohm balanced twisted pair
Bit Rates	2Mbit/s,8Mbit/s and 34Mbit/s as ITU-T Recommendation G 703 Line Code
Return Loss	2Mbit/s and 8Mbit/s as per G.703 requirements
Insertion Loss	<0.9dB for 2Mbit/s service(51kHz to 10MHz)
Cross Talk	>50dB from 51kHz to 10MHz between 2 baluns mounted 15mm apart
Pulse Shape	2Mbit/s,8Mbit/s and 34Mbit/s as per G.703
Material Data
Coax Connector Outer Contact	Brass. Finish Cu/Ni/Au Cu/Ni
Coax Connector Body	Brass.Finish Cu/Ni
Coax Connector Insulator	PTFE
Coax Connector Inner Contact	Male Brass or CuPh.Finish Cu/Ni/Au
Injection molding body	PP Black
Shell	Brass.Finish Cu/Ni
Pin	Brass.Finish CuSnZn

OUR SERVICE

1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.

FAQ

A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.

B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.

C :I dont know if your product is suitable for us.

XT: Dont worry,we can give our samples to you if you need.

Xuntong Electronics Co., Ltd

Yangzhou Xun Electronics Co., Ltd. Was established in 2003, in the connector field has many years of production experience and superb product technology,

About the RF coaxial connectors, F head series (RG58, RG59, RG6, GR11), PAL (TV), BNC, N, RCA, SMA, SMB, TNC, L9 (1.6 / 5.6). L27, L29 (7/16), L36, L52., UHF (PL259), 1 / 2, 7 / 8, IF45Q type (15 / 8), IF70Q type (15/8), C6X, Q6, NEC (C4.6), MCX, MMCX, CC4 (1.0 / 2.3) and communication network products series of RF coaxial connectors between different series adapter, fiber optic connectors, filling micro-series connectors, coaxial attenuators coaxial tone attenuator, coaxial load, etc., can also be designed according to customer needs and processing of various special requirements of the connectors, copper nuts and other various copper pieces!
