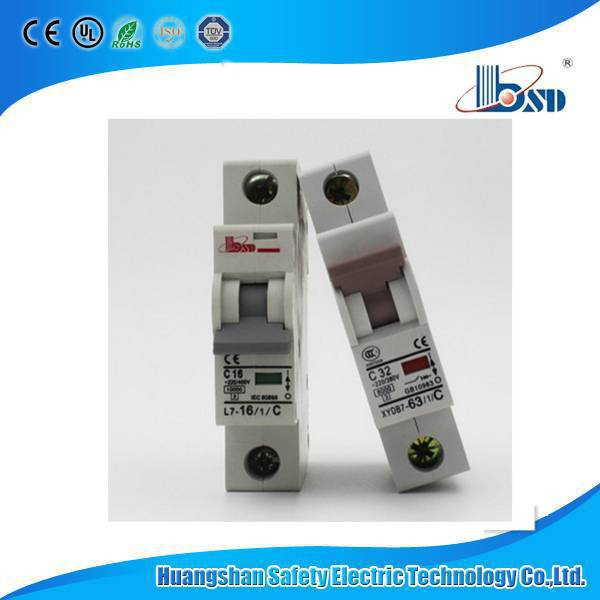

L7 MCB, 1p 32A, 10ka Breaking Capacity, Miniature Circuit Breaker

Prod Model:	L7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pole Number:	1,2,3,4 P
Warranty Time:	3 Years
Service:	OEM & ODM
Certificate:	Ce ,CQC
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	MCB

Product Description

Model NO.: New L7 MCB 1P ,2P 3P
Arc-extinguishing Medium: Air
Type:Circuit Breaker
Structure: MCB
Breaking Capacity:6KA or 10KA
Certification: ,CE,CB,CCC,ISO9001
Operation: Electric Type
Tripping Characteristics:B(1-5ln), C (5-10ln), D (10-15ln)
IP Grade:IP20
Color: According to Customer Requirement
Inner Material: According Customer Need
Product Description

Application:
 L7 series circuit breaker belong to the advanced level of the nineties in the world instead of the older generation of kl7. They are used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is nineties in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single pole 230V or two, three, four poles 400V circuit for overload and short-circuit protection as well as for unfrequented on and-off switching electric equipment and lighting circuit in normal case. The products Comply with IEC 60898. They are also used in industry,commerce and dwelling, and protect fractional electric motors.


Product specification and model	L7
Standard	IEC60898/GB10963
Product Certifications	CE,,ISO9001
Product Function	Short circuit protection, Over current protection
Number of Poles	1P,2P,3P
Rated Current(A)	1,3,6,10,16,20,25,32,40 ,50,63
Breaking Capacity(A)	6KA or 10KA
Rated Voltage(V)	230/400
Rated Frequency	50/60HZ
Endurance	≥20000
Circumstance Temperature	-5 °C ~+40 °C
Electrical Life	No less than 8000 operations
Mechanical Life	(o-c)no less than 20000 operations
Protection Degree	IP20
