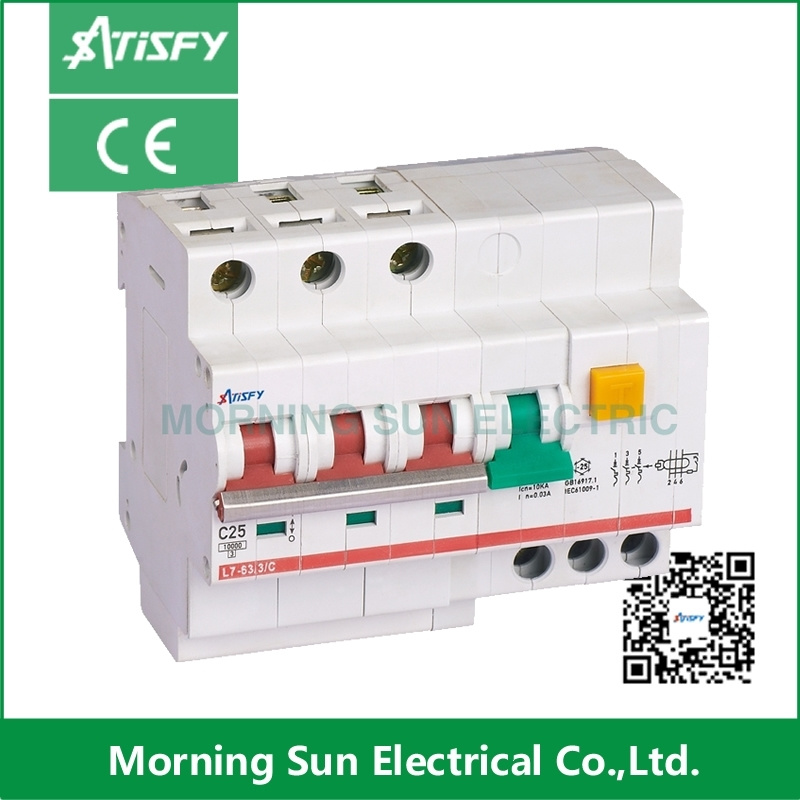

L7 RCBO

Prod Model:	L7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Energy-storage Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Structure:	Conventional Circuit Breaker

Product Description

1. Residual Current Circuit Breaker: Circuit Breaker With Overcurrent Protection
2. Electrical Type
3. Compact structure, small volume, (two modules in width)
4. With short circuit, overload and residual current protection
5. Action function has nothing to do with main circuit voltage
6. With midline cut-off functions, it is safer and more reliable
7. With double functional connection terminals, it has strong connection ability.
8. With contact state indicator, it is easy to recognize the contact situation
9. Different handle colors are used to indicate different rated current.
10. High breaking capacity: 10KA
11. With wide range of rated current, it can be used as family main switch
12. United accessories series
13. Type C can provent the error tripping caused by electric equipment

Specification
Standard:	IEC1008, GB16916
· Rated Voltage(Un):	2 pole: 230V(240) AC
· Rated Current(In):	63A
· Rated residual operating current(In):	100, 300mA
· Rated residual non-operating current(In):	0.5In
· Rated current off-time:	≤ 0.1s
· Minimum #118alue of rated making and breaking capacity(Im):	m): 1000A
· Endurance:	on load: 2000cycles
	off load: 2000cycles
