| Prod Model: |
LA110-B2-BW |
| Color: |
Red Green |
| Operating Temperature: |
+55° to -25° |
| Operating Condition: |
Instantaneous Type |
| Outline Dimension: |
Dia 29 |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Structure: |
Self-Locking or Self-Rest |
| Brand: |
Utl |
| Certification: |
TUV Ce |
Product Description
Push button

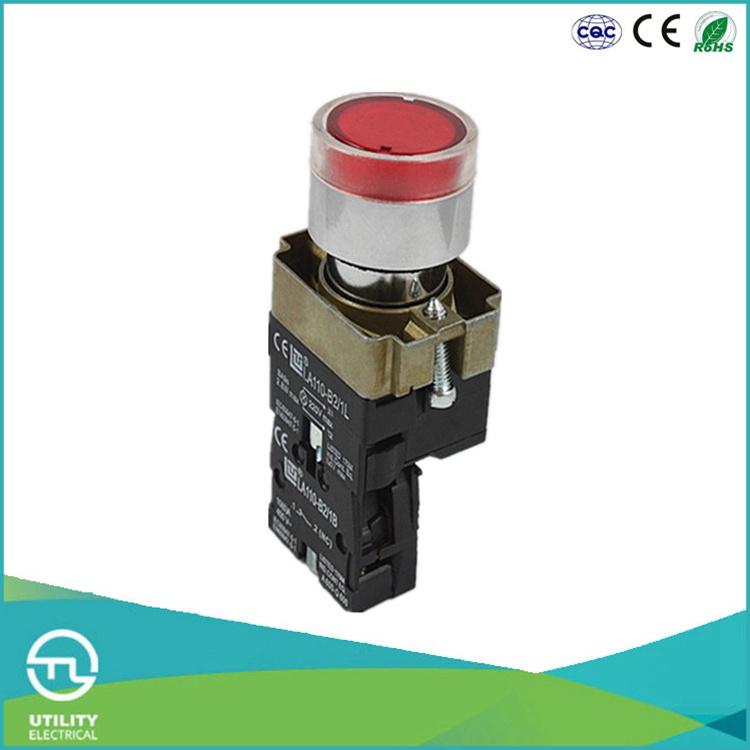

UTL LA110-B2-BW 220V Push button Switch UL
Parameter
| Textural cladification | Derivation type | Size number |
| A:Flat button P:Anti-fouling button L:High-order button | 1:white 2:black 3:green 4:red 5:yellow 6:blue | 1:NO 2:NC 3:two NO 4:two NC 5:NO+NC |
C:Dia40 mushroom self-reset button
R:Dia60 mushroom self-reset button | 2:black 3:green 4:red 5:yellow 6:blue |
| S:Mushroom self-lock reset after turning | 4:dia30 5:dia40 6:dia60 | 4:red | 2:NC |
| S:Mushroom self-lock with key to release | 7:dia30 84:dia40 1:dia40 94:dia60 2:dia60 | 2:NC |
| T:Dia40 push and pull type emergency button D:Dia60 push and pull type emergency button | ------- | 2:NC 5:NO+NC |
| D:Short handle turn button J:Long handle trun button G:Key button | 2:twoposition lock 3:three position lock 4:self rest on the two position 5:self rest on the three position | 1:NO 2:NC 3:two NO 4:two NC 5:NO+NC |
| W3:Turn button with light | 1:white 3:green 4:red 5:yellow 6:blue | 6:Flat type 7:Resistance type 4:Transformer type 1:NO 2:NC 5:NO+NC |
| L8:Two position push button L9:Two position push button with protector | 3:Push button 4:push button+high button | 5:NO+NC |
| W8:Two position push button with light | 2:Two position push button 6:Flat type 7:Resistance type 4:Transformer type 5:NO+NC |
| V:indicator lamp | 4:220v transformer type 5:380v transformer type 6:Flat type 7:Resistance type | 1:white 3:green 4:red 5:yellow 6:blue |
| BE:Annex(no structure &class) | 101:NO contact group 102:NC contact group | --------- |
| Voltage(max) | 660V |
| Ui Rated Insylation Voltage | AC660V 50HZ |
| Ith Conventional Current | 10A |
| Contact Resistance | ≤50mΩ |
| Solid(mm2) | -- |
| Strand(mm2) | -- |
| Protective | IP65 |
| Insulation Material | PA66 |
| Operdtion Category | AC-15 DC-13 |
| Installation Height | 2000M |
| Polution Class | 3 |
| Operation Temperature | -25°c~+55°c |
| Viberation Durability | 10~200HZ 1mm.10g
|
