Lab6-35 Type Current Transformer
| Price: |
US $ 480-8000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
LAB6-35 |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Ville |
Product Description

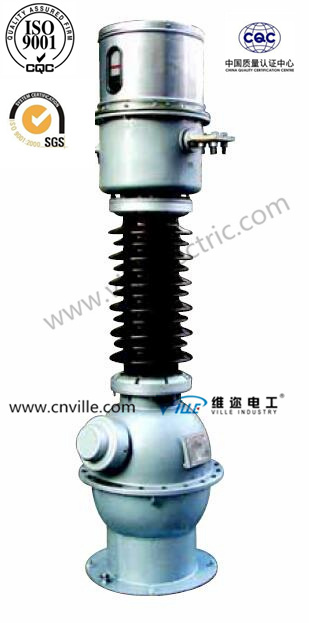

LAB6-35 type Current Transformer

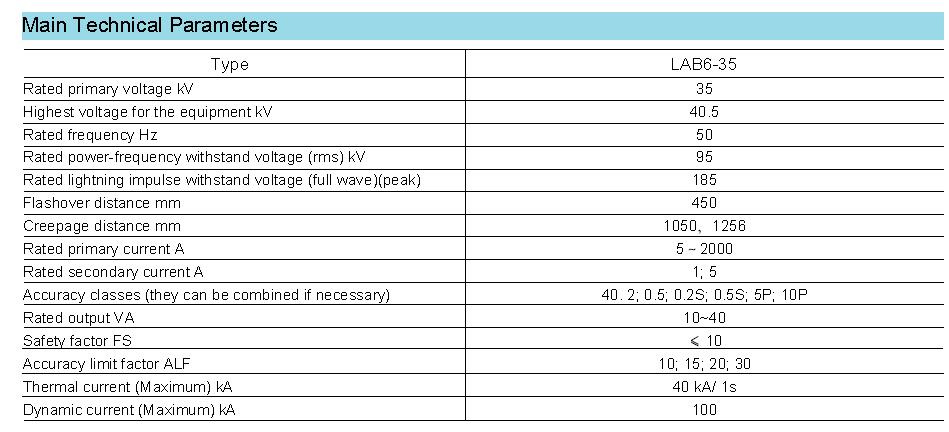

LAB6-35 type current transformer uses oilpaper insulation for outdoor use, it is a fully sealed product. It is used as a current,
electric energy measurement and relay protective device for AC power system with highest voltage for the equipment of the
equipment 40.5 kV and rated frequency 50Hz.
The product can have three or four secondary coils, the magnetic core uses microcrystalline alloy with high magnetic
conductivity, the measurement precision of secondary coil can be up to 0.2 grade or 0.2S grade.
The oil conservator of this product is made of aluminum alloy. The oil tank is made by high-quality steel plate stretching
to form as a whole, in order to reduce welding seam leakage points; it has not exposed sealing structure, so it can lengthen
the aging period of seal ring, ensure that the sealing performance is reliable, improve the run quality of insulation oil, and
ensure that the run is safe and reliable.

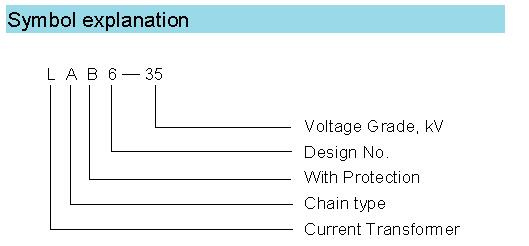

Except for the above basic symbol, suffix W2 means that it is suitable for using in Grade polluted III area, suffix W3 means that it is suitable for using in Grade IV polluted area.
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
