Prod Model:	LAD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type.:	New,Old
Electricity Type.:	AC
Number Of Pole.:	3, Triple
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	ACB
Poles Number:	3
Certification:	CCC

Product Description

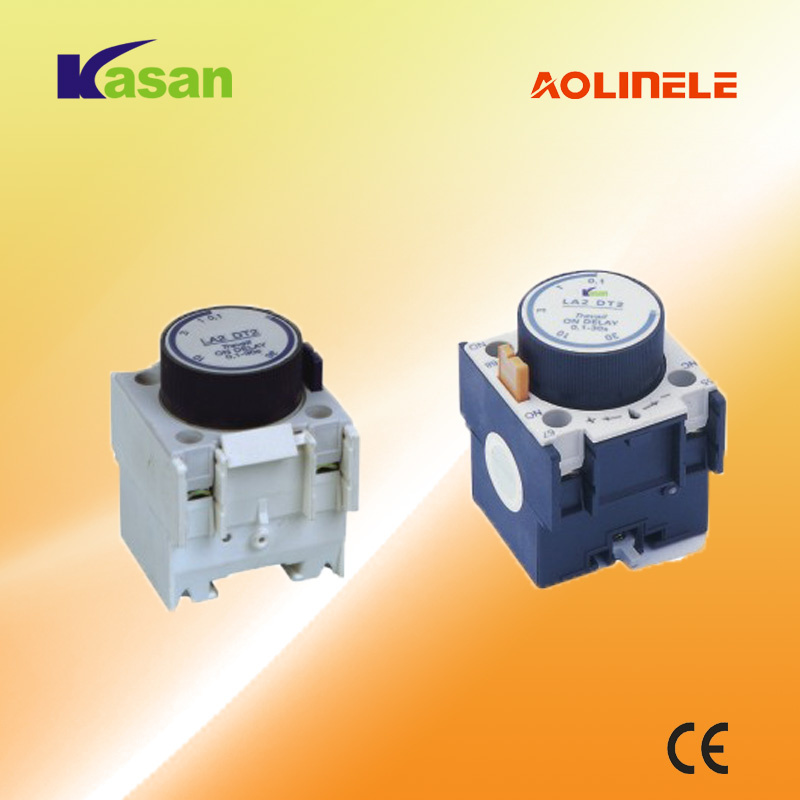

LAD Time delay auxiliary contact block

Specifications:
LADT2 Time delay auxiliary contact block
Unit Reference:LADT2
Certificate: CE certificate
LAD series time delay auxiliary contact blocks are installed on the top of CA2-D control relay and of LC1-D AC contactor for expanding the couples of auxiliary contacts points.

Reference	Delay range	Number of the delay contacts	type
LADT0	0.1~3s	NO+NC	ON
LADT2	0.1~30s
LADT4	10~180s
LA3DT0N	0.1~3s		OFF
LA3DT2N	0.1~30s
LA3-DT4N	10~180s
