Name: Lamp Capacitor, Motor Run Capacitor, Motor Parts
Brand: all-electronics-online.com
SKU: 812494365
Availability: InStock
Rating: 4.6 (123 reviews)

Price:	US $ 5.5-7.5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB80
Voltage:	Voltage 250VAC to 630VAC
Certificate:	Ce ,RoHS
Standard:	IEC61048&IEC61049 Standard
Delivery Time:	2 Weeks
Service:	OEM and ODM
Warranty Time:	3 Years
Capacity:	1-50UF
Temperature:	-40 to 105
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

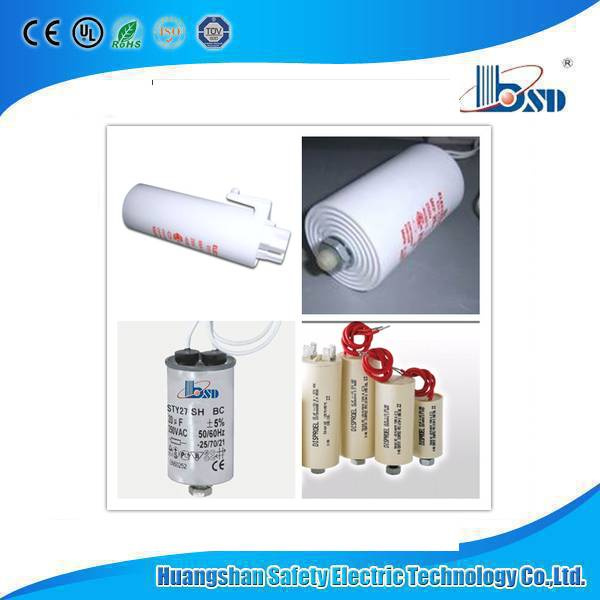

CBB80 series lighting capacitor /for sodium vpor lamp

1 Applications
This series are particularly suitable for parallel compensation of discharge lamps.
Dielectric consists of self-healing polypropylene film,case and cover are made of self-extinguishing

2. Package&Delivery
    Packaging Details:
    Exporting Standard Packing for self-healing type cbb80 super capacitor Brown carton.
    50pcs or 100pcs/inner box, 2boxes or 4boxes/outer carton.
    Can offer bulk packing, Individual box packing, then use pallet.
    TBA by clients.
    Delivery Detail:
    Shipped in 15 days after payment

3.Features for self-healing type cbb80 super capacitor:
    -Low loss and non-inductive winding;
    -Self-healing property avoiding short curcuits;
    -Excellent safety performance;
     -Operating temperature can reach 105ºC;
     -No leakage risk.

4 Technical Performance

Rated Voltage	250V AC 50Hz 280V AC 50Hz
working Temperature range	-25~+85ºC
Dissipation factor (20ºC ,50Hz)	tg δ≤ 0.002
Discharge resistor	on request
Test voltage between terminals	2.15 Un for 2 seconds
Between terminal and case	2kV for 60 seconds (type test)
Reference standards	En 61048 ; Type B En 61049
Protection	Case in self-extinguishing plastic material
Terminals	Unipolar leads insulated in pvc
Mounting devices	M8 stud, clamp, captive feet
Capacitance tolerance Different tolerance values are available on request	±5%; ±10%

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
