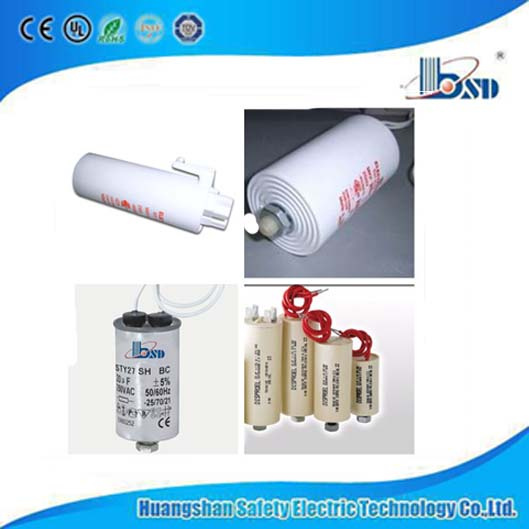

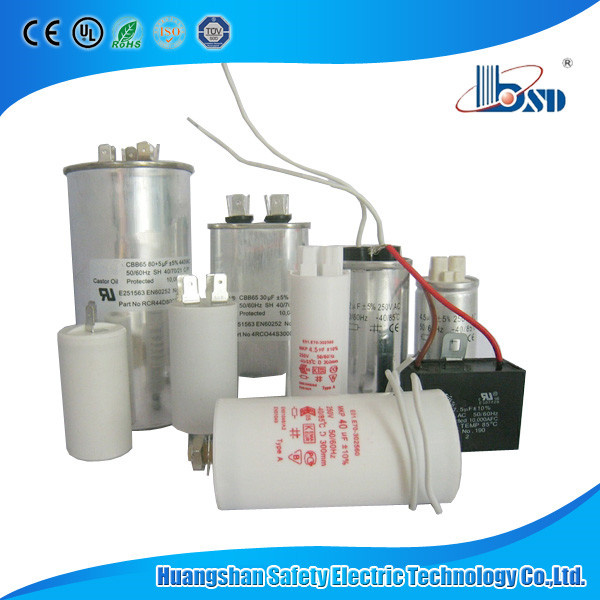

Lamp Capacitor with High Temperature

Name: Lamp Capacitor with High Temperature
Brand: all-electronics-online.com
SKU: 799979085
Availability: InStock
Rating: 5 (45 reviews)

Price:	US $ 0.23/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB80
Capacitance :1-50UF:	Voltage 250VAC to 630VAC
Temperature :-40 To 105:	Small Size and Top Quality ,Low Loss
Ce ,RoHS Certificate:	IEC61048&IEC61049 Standard
Offer OEM And ODM Service:	Delivery Time : 2 Weeks
Safety And Hard Packing ,:	Good Printing and Good Design
3 Years Warranty Time ,and Long Life:	Plastic Can or Al Can Design
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

CBB60 series lighting capacitor /for sodium vpor lamp
1 Applications
of this series are particularly suitable for parallel compensation of discharge lamps.
Dielectric consists of self-healing polypropylene film,case and cover are made of self-extinguishing
2 Technical Performance

Rated Voltage	250V AC 50Hz 280V AC 50Hz
working Temperature range	-25~+85ºC
Dissipation factor (20ºC ,50Hz)	tg δ≤ 0.002
Discharge resistor	on request
Test voltage between terminals	2.15 Un for 2 seconds
Between terminal and case	2kV for 60 seconds (type test)
Reference standards	En 61048 ; Type B En 61049
Protection	Case in self-extinguishing plastic material
Terminals	Unipolar leads insulated in pvc
Mounting devices	M8 stud, clamp, captive feet
Capacitance tolerance Different tolerance values are available on request	±5%; ±10%

3 Outline size (type A)

Capacitance Range(μf)	250 V. ac~280 V. ac D×H(mm)
3	34×68
3.5	34×68
4	34×68
4.5	34×68
5	34×68
6	34×68
8	34×68
10	34×68
12	34×68
15	34×68
16	34×68
18	38×70
20	38×70
21	38×70
22	38×70
25	45×70
30	45×92
31.5	45×92
35	45×92
36	45×92
40	45×92
45	50×100
47	50×100
50	50×100
55	50×117
60	50×117
65	50×117

* Leads Softor hardwin Cable win quick conncitor
4 Outline size (type B)

Capacitance Range(μf)	250 V. ac~280 V. ac D×H(mm)
3	40×60
3.5	40×60
4	40×60
4.5	40×60
5	40×60
6	40×60
8	40×60
10	40×60
12	40×60
15	40×60
16	40×70
18	40×70
20	40×70
21	40×80
22	40×80
25	40×80
30	45×80
31.5	45×90
35	45×90
36	45×90
40	45×90
45	50×100
47	50×100
50	50×100
55	50×100
60	50×100
65	55×130
70	55×130
75	55×130
80	55×130
85	60×130
90	60×130
95	60×130
100	60×130
