LAN Cable 4p 0.57mm CAT6 Communication Cable

Name: LAN Cable 4p 0.57mm CAT6 Communication Cable
Brand: all-electronics-online.com
SKU: 812291635
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 16-40/Box
Min Order:	200/Box
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Application:	Long Distance Symmetric Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	UL

Product Description

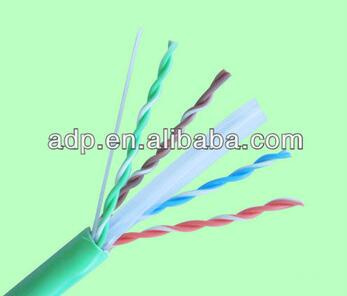

Lan cable 4p 0.57mm cat6 communication cable
Structure:
Conductor: Solid/stranded wire CU/CCA/CCS
AWG: 23AWG 0.57MM 24AWG 0.50MM
Twisted pair: 4
Shield: utp no, ftp sftp yes
Drain wire: Yes
Braid: Yes
Insulation: PE
Jacket: 5.8MM PVC
Rip cord: Yes
Center Splitter: Yes
Rated Temperature: 60cF, 75 cF, (140 TF, 167 TF)

Electrical Characteristic:
Impedance (ohms): 100 ohm+/- 15 ohm
DC Rersistance: <=6.58Ω/100M
Resistance imbalance: <=2.5%
Insulation resistance: 5000MΩ.KM

Standard:
TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO 11801 EN50173

Flame resistance level:
CMX. CM, MP, CMG, MPG, CMR, MPR

Packing:
305meters/roll/box, 2~3box/carton;
Weight: 8.2~11.7KGS/Box (different conductor)

Other:
Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.

OEM is available, we can give you competitive price , high quality products and excellent service through our cooperation.

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
