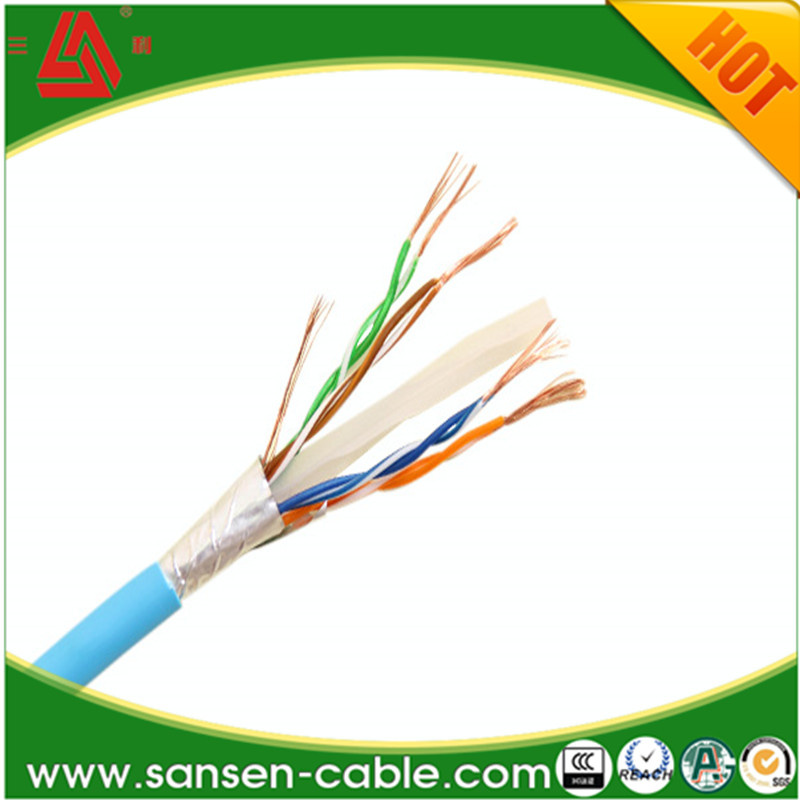

LAN Cable CAT6 Patch Cable Network Cable

Prod Model:	CAT6
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 6
Certification:	CCC
Brand:	Sansen

Product Description

UL, CE, RoHS Listed UTP LSZH CAT6 Network Cable

Specifications:
Meets ANSI/EIA/TIA 568-B. 2-1 requirements
Fire protection CM
The cable meets UL 1581 VW-1 fire safety standard

Description:
Unshielded Copper cable, 4 pairs, category 6
Cable is used for indoor installation

Materials:
Conductive material: Copper
Conductor insulation: HDPE, film-porous-film structure
The cable jacket: PVC

Technical characteristics:
Conductor diameter: 0.55+/-0.002mm
Insulated conductor diameter: 1.03 ± 0.2 mm
Outer cable diameter: 5.3 ± 0.2 mm


Performance Parameters
FREQUENCY	ATTENUATION		NEXT		PSNEXT		ELFEXT		PSELFEXT		RL
(Mhz)	(dB/100m)		(dB)		(dB)		(dB)		(dB)		(dB)
	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum
1	2	1.8	74.3	83.3	72.3	79.3	67.8	77.1	64.8	74.4	20	27
4	3.8	3.5	65.3	76	63.3	72	55.8	65.3	52.8	62	23	34.5
8	5.3	5	60.8	74.1	58.8	69.3	49.7	60.6	46.7	57.6	24.5	37.2
10	6	5.7	59.3	70.8	57.3	67.5	47.8	58.8	44.8	55.9	25	38.1
16	7.6	7.2	56.2	61.3	54.2	58.7	43.7	47.3	40.7	45.8	25	37.7
20	8.5	8.1	54.8	62.1	52.8	58.2	41.8	45	38.8	44.1	25	36.8
25	9.5	9.1	53.3	64.8	51.3	61.8	39.8	43.4	36.8	42.6	24.3	37
31.25	10.7	10.2	51.9	57.4	49.9	55.8	37.9	41	34.9	40.4	23.6	31
62.5	15.4	14.8	47.4	55.5	45.4	54.2	31.9	37.8	28.9	36.2	21.5	30.2
100	19.8	18.8	44.3	58.8	42.3	55.5	27.8	35.4	24.8	33.6	20.1	30.4
150	24.7	23.2	41.7	51.1	39.7	48.4	24.3	34.9	21.3	31.8	18.9	24
200	29	26.7	39.8	48.3	37.8	46.8	21.8	31.5	18.8	29	18	23.4
250	32.8	30.4	38.3	49.4	36.3	47.8	19.8	32.9	16.8	29.7	17.3	21.9



Jacket thickness:	0.4 mm
Weight per 1000 ft (304.8 m):	13.7 kg
Standard package:	305 m (1000 ft)

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
