LAN Cable Stpcat7/Computer Cable/ Data Cable/ Communication Cable/ Connector

Name: LAN Cable Stpcat7/Computer Cable/ Data Cable/ Communication Cable/ Connector
Brand: all-electronics-online.com
SKU: 814547135
Availability: InStock
Rating: 4.8 (59 reviews)

Price:	US $ 90-110/Roll
Min Order:	50/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	STP cat 7
Model No:	Cat7
Application:	Submarine Cable
Conductor Material:	Copper
Cover Material:	PVC
Type:	Cat 7
Certification:	RoHS
Model:	Cat5e
Brand:	Hanli

Product Description

Product Description

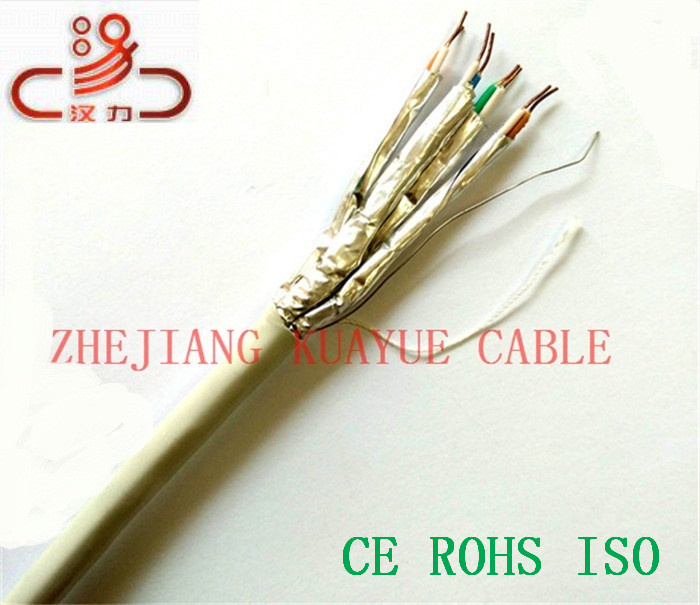

STP CAT7

SFTP CAT 7 PVC
Product Name/Code: SFTP Cat 7 PVC		Performance
Application:		Frequency	RL	Attenuation	NEXT	PSNEXT
100 Base-T4		(MHz)	(dB)	(dB/100m)
100 Base-TX			min.	max	min (dB)	min (dB)
100VG - AnyLAN		1.000	20.00	2.00	80.00	77.00
1000 Base-T (Gigabit Ethernet)		4.000	23.00	3.60	80.00	77.00
155 Mbps ATM		10.00	25.00	5.70	80.00	77.00
622 Mbps AT		16.00	25.00	7.20	80.00	77.00
Reference Standard		20.00	25.00	8.10	80.00	77.00
EIA/TIA 568B & ISO/IEC 11801		31.25	23.60	10.10	80.00	77.00
Cable Construction		62.50	21.50	14.50	75.50	72.50
Conductor	Solid Bare Copper	100.00	20.10	18.50	72.40	69.40
AWG	22/23	200.00	18.00	26.80	67.90	64.90
Conductor Diameter(mm)	0.64/0.574	250.00	17.30	30.20	66.50	63.50
Insulation	Solid PE	300.00	17.30	33.30	65.30	63.30
Insulation	Solid PE	600.00	17.30	48.90	60.80	57.80
Average Thickness (mm)	0.2	Frequency	ELFEXT	PSELFEXT		ACR
Insulation Diameter(mm)	1.00	(MHz)
Drain wire	Tinned copper		min (dB)	min (dB)
Construction (mm)	7/0.2	1.000	80.00	77.00		78.00
Al foil (Individual)	Aluminium/PET foil	4.000	80.00	77.00		76.40
Copper Braid	Copper Wire Braid 0.16 mm	10.00	74.00	71.00		74.30
Sheathing	PVC /FRPVC	16.00	69.90	66.90		72.80
Thickness(mm)	1.4	20.00	68.00	65.00		71.90
Diameter(mm)	9.1(22 AWG)	31.25	64.10	61.10		69.90
Diameter(mm)	8(23 AWG)	62.50	58.10	55.10		61.00
Core Identificatin/Color Code	According to customer request	100.00	54.00	51.00		53.90
Bending Radius	6xOverall Diameter	200.00	48.00	45.00		41.10
		250.00	46.00	43.00		36.30
		300.00	44.50	41.50		32.00
		600.00	38.40	35.40		11.90
Fire Performance		Electrical Performance
Flame propagation Test to IEC 332 Part 1(PVC) Flame Propagation Test to IEC 60332 Part 1 and Part 3(FEPVC)		Max.Conductor DC Resistance at 20 ºC(Ω/Km)				<93.8
		Operating Temperature( ºC )				70
		Velocity of propagation				79%
		Impedance(ohm)				100±15

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
  Contact:
Name:  Crystal Lan   Tel:+8657163865101  Mob:13575780642
Website: http://hanlicable.com   http://kuayuecable.en.made-in-china.com

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
