Yueqing Langir Electric Co., Ltd. >> Langir Dia. 19mm Ring Illuminated Latching Stainless Steel Pushbutton Switch

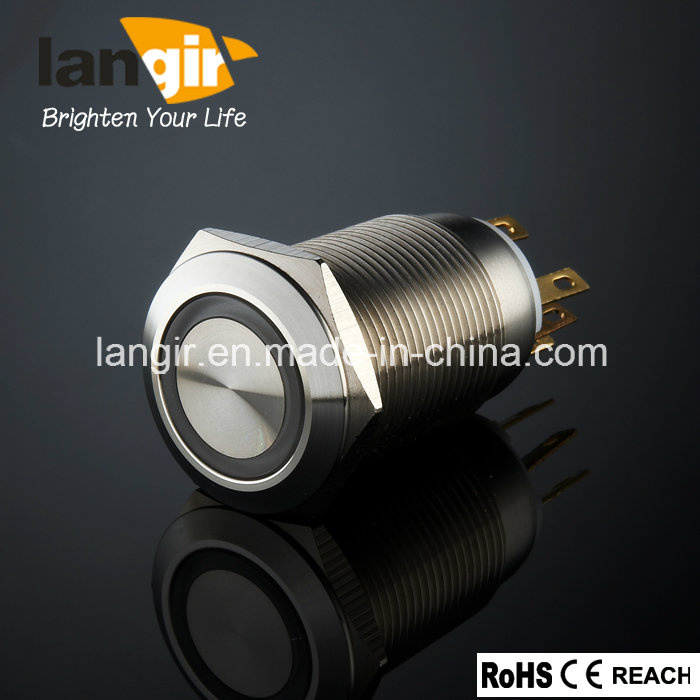

Langir Dia. 19mm Ring Illuminated Latching Stainless Steel Pushbutton Switch

Langir Dia. 19mm Ring Illuminated Latching Stainless Steel Pushbutton Switch
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 40/Piece
Pay Type: L/C,T/T
Prod Model: L19F-Z1-S-R
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Function: Momentary/Latching
Max Current: 5A
Max Voltage: 250VAC
Protection Level: IP65
Usage: Reset Button
Kind: Single-pole on-off Switch
Type: 1no1nc
Brand: Langir

Product Description

Anti-Vandal IK09 / Sealed IP65
- Normal Open / Normal Closed
- Domed / Flat / High Flat
Stainless Steel
- 1, 000, 000 Cycles Momentary

ModelL19FL19-F/RL19-F/D
Front ShapeFlat RoundFlat Round  Flat Round

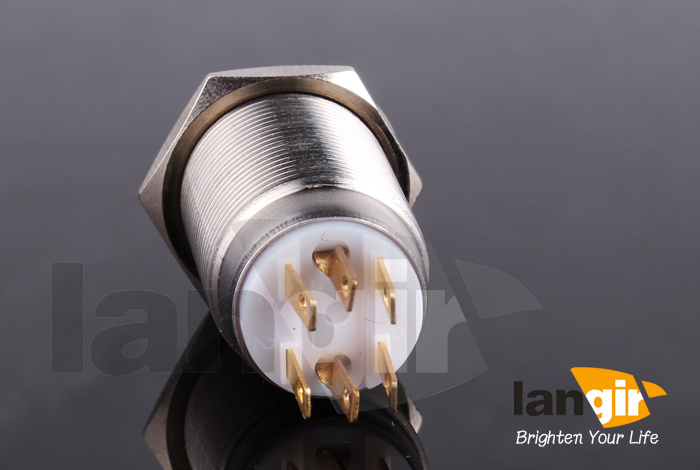

Terminal TypeScrew Pin (2.8x0.5mm)
Max. Switch Rating5A/250V AC
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temp.-20°c ~ +55°c
Mechanical Life1, 000, 000cycles
Electrical Life50, 000cycles
Contact MaterialSilver Alloy
Torque5~14Nm
Operation Pressure3~8N
IP DegreeIP65 / IK10
Material
ButtonStainless Steel  / *  Anodized Aluminum
Body
BasePA
LED Spec .
TypeRing Illuminated(LED)Dot Illuminated(LED)--
Rated Voltage
6V/12V/24V/36V/110V/230V

--
ColorR, G, Y, O, B, W--
LifeApprox, 40, 000hours--

RoHS,REACH Available

Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
