| Prod Model: |
Coban TK104 |
| Battery: |
6000 mAh |
| Standby Time: |
60 Days |
| Waterproof: |
Yes |
| Magnetic: |
Yes |
| OEM Or Not: |
Yes |
| Certificate: |
Ce FCC RoHS |
| Shipment: |
by Express or by Air |
| Dual GPRS Communication: |
TCP UDP |
| GPS Cargo Tracking Monitoring: |
Waterproof, Magnetic, Large Battery |
| GPS Module: |
Ns1315 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
104 |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
Ce, FCC |
Product Description

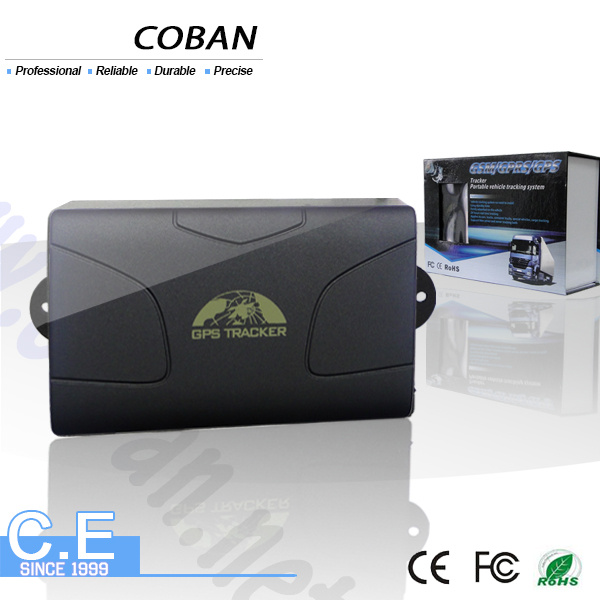

Large Battery GPS Tracker Coban TK104 Standby 50 days with Magnet
GPS104B
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Detailed description:
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by several ways.provide monitor software and global map.real-time track through the monitor software in your pc;track through your PDA cell phone and googleearth.
Features & Functions:
Waterproof shell
Built-in large capacity 6000MA battery, long standby time of 60 days.
Powerful magnets to absorb to vehicle firmly.
Real-time tracking, retrieve of lost vehicles, cargo.
Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
tracking function by timing and frequency
Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
Low battery alarm function
Remote Engine-stop and Resume.

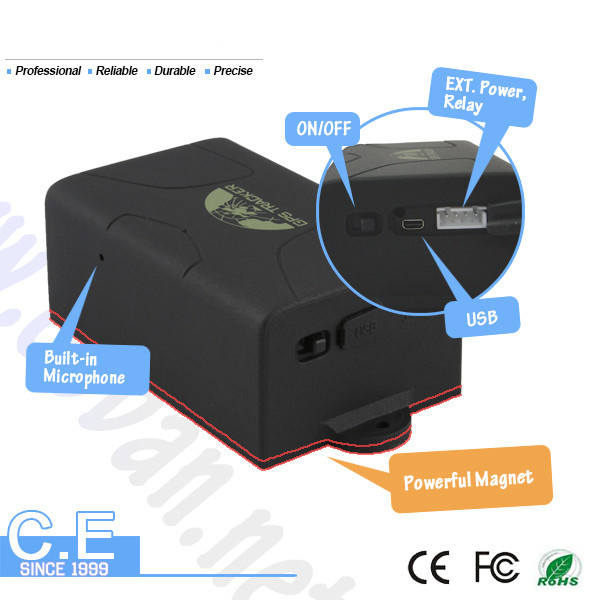

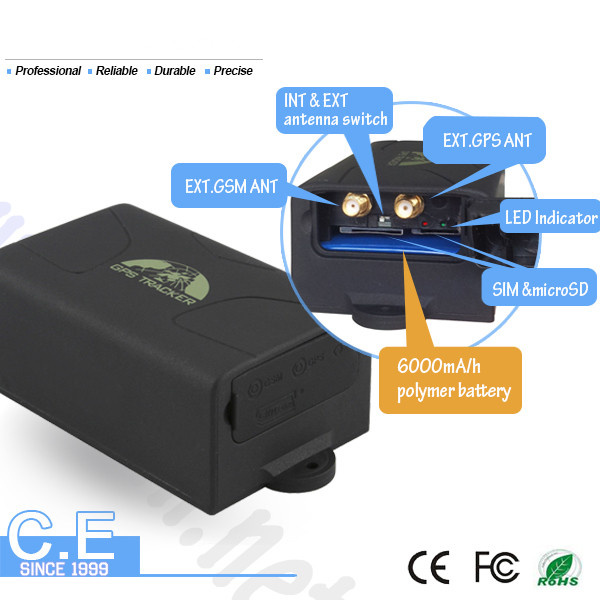

Detailed picture:
Applying directions:
Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Technology parameter:
| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| Deep sleep | 0.6mA |
| GSM operating Current | 68mA±3mA |
| GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |

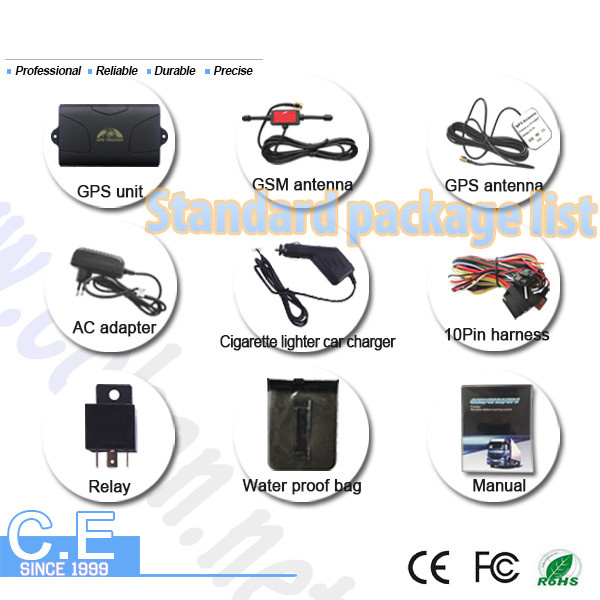

Part List:
1 X GPS Tracker 104
1 X AC adapter (Input: AC 100-240V,Output DC: 1.5A,12V)
1 X Lighter car adapter (Car 12V OR 24V power)
1 X GPS Antenna
1 X GSM Antenna
1 X Relay
1 X Harness
