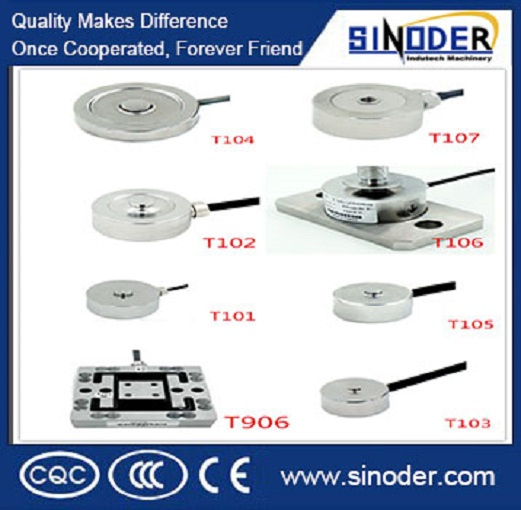

Large Capacity Force Sensor Can Be Customized at Your Needs
| Price: |
US $ 10-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P |
| Prod Model: |
T104 |
| Capacity: |
10,30,50,100,200,500n |
| Safe Overload: |
150%F.S |
| Rated Output: |
0.8~1.5mv/V |
Product Description
Features & Applications
•Miniature load cell,low profile,small deflection
•Made of stainless steel
•Tension and compression application
•Mainly used for pull and push dynamometer, hopper scale and industrial measuring system
Mounting Dimension
| Specifications | Technique |
| Capacity | 10,30,50,100,200,500N |
| Rated output | 1.0±10%mV/V |
| Zero balance | ±10% F.S. |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.2%F.S. |
| Creep(30min) | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 1000±100Ω |
| Output impedance | 1000±100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~80ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ2×1500mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| IP Class | IP66 |
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
FAQ:
We also provide other kinds of sensors, like weighing sensor , pressure sensor ,tension and compression sensor, compression force sensor ,amplifier and indicator etc.
