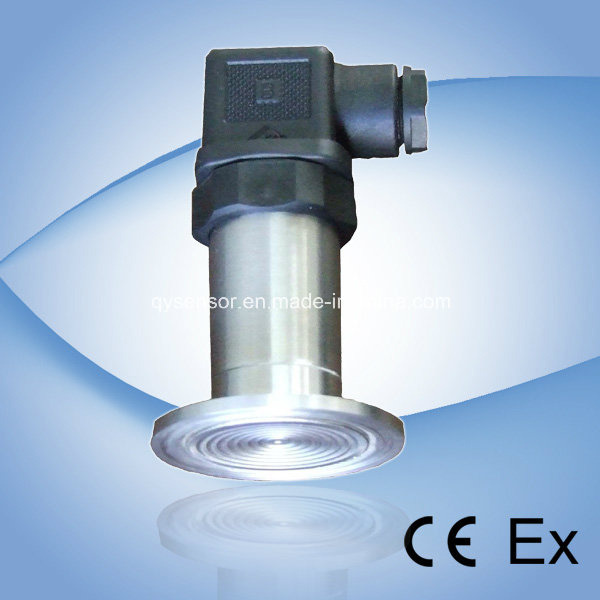

Large Flat Memberance Smart Pressure Transmitter Qzp-S5

Name: Large Flat Memberance Smart Pressure Transmitter Qzp-S5
Brand: all-electronics-online.com
SKU: 780104275
Availability: InStock
Rating: 4.7 (137 reviews)

Price:	US $ 120/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QZP-S5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measure Range:	0~35kpa^.0~500kpa^.0~2 MPa
Accuracy:	±0.3%Fs, ±0.2%Fs
Output Signal:	4~20mA;0~10V, 1~5V, 0~5V, 0~20mA
Power Supply:	12~36(Standard 24VDC)
Housing Material:	Stainless Steel
Material Of Diaphragm:	316L Stainless Steel
Application:	Measuring High Tempeararue Gas and Liquid

Product Description

QZP-S5 smart pressure transmitters are consisting of 316L isolation membrane pressure transmitter, high-powered MPU, integrated circuit and high-stability constant current. It can correct the linearity and compensate temperature drift. Also can adjust the data of transmitter by hand-helder, achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication. With characteristics of high precision, good stability, good reliability and easy handle.
Model: QZP-S5
Range: 0~35KPa.0~500KPa.0~2 MPa
Accuracy:±0.2%FS, ±0.3%FS
Feature:
Smart type pressure transmitters.
Can choose with HART AGREEMENT.
Have the characteristics of high precision, good stability, long working life and high reliability.
Small in size, light in weight. easy to installation.
Suitable for the high accuracy measuring of food equipment etc.
Technical Specifications

Measuring media		Gases or liquids which are compatible to 316L stainless steel
Measuring range		0~35KPa.0~500KPa.0~2 MPa
Pressure type		Gauge(G),
Signal output	Analog	transmitter, mA (2 wires)	4~20mA
		transmitter, Vdc (3 wires)	0~10V, 1~5V,0~5V,0~20mA
	Digital	Can bi-dinrectionally communication in accordance with HART AGREENMENT
Combined accuracy		%FS	±0.2(Standard), ±0.3(Max)
Long stability		±0.1%FS/year(Standard);±0.2%FS/year(Max)
Power supply		Vdc	12~36(Standard 24Vdc)
Compensated temp.		ºC	-10~+60
Operating temp.		ºC	-30~+85
Temperature coefficient of ZERO		%FS/10ºC	≤±0.2
Temperature coefficient of SPAN		%FS/10ºC	≤±0.2
Insulation resistance		MΩ	>500 @ 100Vdc
Electrical connection		DIN43650,aviation connector,directly lead(Selectable)
Material		Housing Material	Stainless steel(1Cr18Ni9Ti)
		Material of diaphragm	316L Stainless steel
Environment protection		IP	65
Safe overload		%FS	200

Ordering code: model- range & type-signal output-accuracy-electrical connection-defend grade-the other requests.
Example: QZP-S5-0/500KPaG-4/20mA-0.2%FS- DIN43650-IP65-***

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
