| Prod Model: |
HP9116C 1KVA to 10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
Product Description

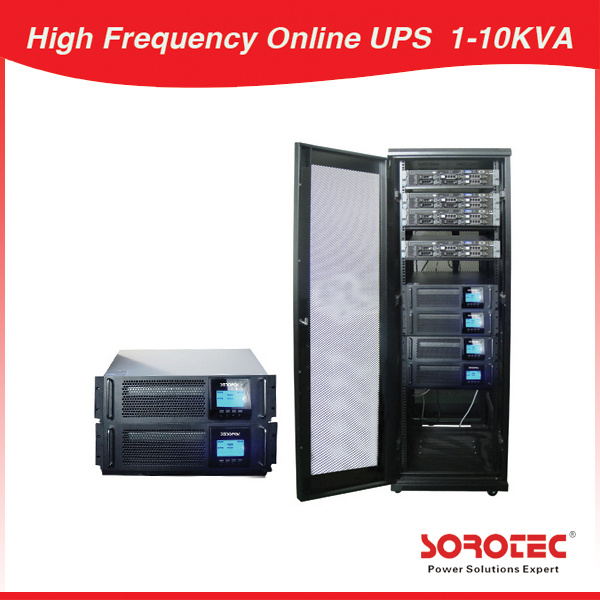

Large LCD display UPS online UPS HP9116C 1KVA to 10KVA
HP9116C 1KVA to 10KVA (1pH in/1pH out & 3 pH in/pH out )Key Features:1. Large blue back light LCD for detailed Real-time UPS status display.
2. Advanced online pure sine wave power supply system, with bypass repair switch, It can provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.
3. Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.
4. Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.
5. UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.
6. N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)
Applications:Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom.
Technical Specifications of Online UPS HP9116C 1KVA to 10KVA (1pH in/1pH out & 3 pH in/pH out ) | Model | HP9116CR 1-10KVA |
| 1KR/1KR-XL | 2KR/2KR-XL | 3KR/3KR-XL | 6KR/6KR-XL | 10KR/10KR-XL | 10KR-XL |
| Capacity | 1KVA/0.7KW | 2KVA/1.4KW | 3KVA/2.1KW | 6KVA/4.2KW | 10KVA/7KW | 10KVA/7KW |
| Nominal Voltage | 220/230/240VAC | 380VAC |
| Frequncy | 50/60HZ |
| Input |
| Voltage Range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) | 304~478VAC(±3VAC) |
| Frequncy Range | 50HZ:(46~54HZ);60HZ(56HZ~64HZ) |
| Power Factor | >0.98 |
| Output |
| Voltage precision | 220/230/240x(1±2%)VAC |
| Frequncy precision | 50/60HZ±0.05HZ |
| Power Factor | 0.7/0.8(option) |
| Harmonic Distortion | Linear Load<3% Non-Linear Load<6% |
| Overload Capacity | 110%~150%for30sec;150%for200ms 105%~130%for10min;130%for 1min |
| Current Crsst Ratio | 3:1 |
| Transfer time | 0ms(AC→DC) |
| Battery |
| DC Voltage | 36VDC | 96VDC | 240VDC |
| Recharge Time | 5 hours to 90%(optional:2KR/3KR standard model battery inside the UPS) |
| Charge Current | 1A 8A | 1A 8A | 1A 8A | 2.0A/402A/5.6A(option) |
| Panel Dispiay |
| LCD | Dispiay input and output voltage,frequency,battery voltage,battry capacity,and the percentage of load |
| Communications |
| Communications Interface | RS232,SNMP Card(Optional),USB(Optional) |
| Working Environment |
| Temperature | 0~40º C |
| Humidity | 0~95%(Non-condensing) |
| Storage Temperature | -25º C~55º C |
| Elevation | <1500m |
| Noise Level(1m) | < 45DB | < 50DB |
| Physics Characteristic |
| Weight | N.W | 16.5 9 | 31 11.5 | 32 12.5 | 18.5 20.5 | 22 24 | 25.5 |
| G.W | 18.5 11.5 | 35 14.5 | 36 15 | 21.5 23.5 | 25 27 | 28.5 |
| Dimensions:(WxDxH)mm | 447x450x89 | 440x600x130 447x450x89 447x600x130 447x450x89 | 447x600x130 | 447x600x177 |
| 2U | 3U 2U | 3U 2U | 3U | 4U | 4U |
| | | | | | | | |

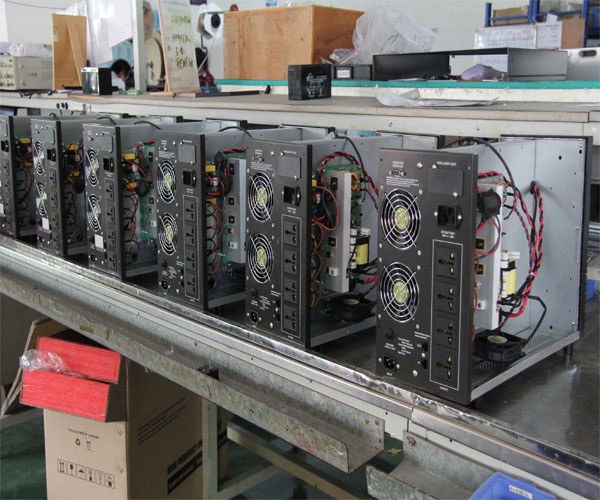

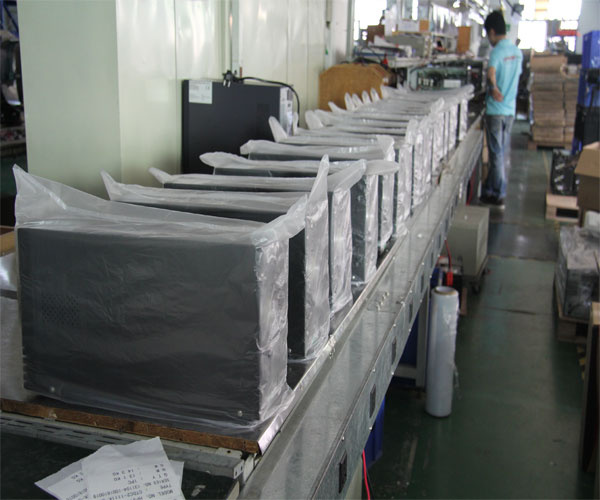

Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
