| Prod Model: |
MPS9335C 30-200KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
10-300kVA |
| Input Voltage: |
380V/400V/415AC(Optional South America 208V) |
| Input Frequency Range: |
50/60Hz |
| Power Factor: |
Full Load>0.99 ,Half Load >0. 98 |
| Input Power Soft-Start Fantion: |
5-30s Settable |
| Frequency Range: |
40-70Hz |
| Bypass Input Voltage: |
380/400/415VAC 3-Phase 4-Wire |
| Inverter Output Voltage: |
380/400/415VAC 3-Phase 4-Wire |
| Current Crest Ratio: |
3:1 |
| Frequency: |
50Hz/60Hz (Settable) |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |
Product Description

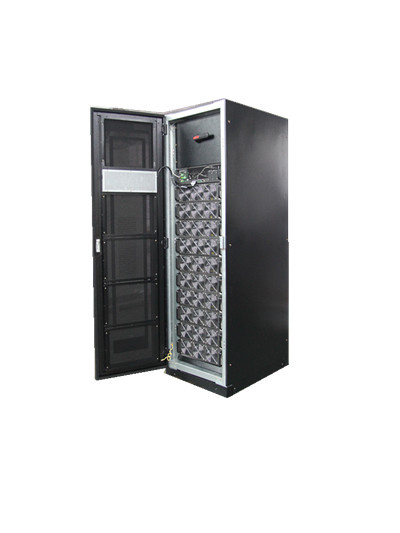

Large Power of Date Center onduleur Modular UPS high frequency online upsKey Features:1. Superior energy saving and environment-friendly:Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99, input THDi<3%
2. Superior capability of powering load:Output PF is 1.0, no need of power deration with load of Leading or lagging PF
3. Easy-to-install: Top or bottom cabling, no need of input cabling cabinet.
4. Easy-to-maintain: Full front access, UPS, failed part can be replaced shortly
5. Easy-to-modify:
The number of battery cells can be configured flexibly, so the original batteries can be used when modifying the Legacy system; Moreover, the battery cell can be replaced In time when it fails without interrupting the normal Operation of UPS.
6.6-inch extra large LCD that can display 12 language(Chinese, English, Russian, Spanish, French and so on )
Application:ApplicationIDC(Internet Data Center), computing center, ISP (Internet Service Provider ), Telecom, Finance bank And securities, Tax, hospital system, industrial automation, Precision equipment, etc.
Technical Specifications of Modular UPS, MPS9335 10-300KVA:
Model | MPS9335 10-300KVA |
| Capacity | 10-300KVA |
| Main input | |
| Input voltage | 380V/400V/415AC(Optional South America 208v) |
| Input Frequency Range | 50/60Hz |
| Power Factor | Full load>0.99 ,Half load >0. 98 |
| THDi | THDi <3% |
| Input power soft-start fantion | 5-30s settable |
| Input Voltage Ranges | 228V-476V-20%- +25% Full load linear derating at -25% - -40%; can take 70% load at -40% |
| Frequency Range | 40-70Hz |
| Battery | |
| Battery Voltage | ±240VDC(Default),12V Battery30-40pcs can be choose |
| Charge Voltage accuracy | ± 1% |
| Bypass | |
| Bypass Input voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Ranges | Default value is -20%-+15%, -40%, -30%, -10% - +10%, other ranges can be set via software |
| Overload Capacity | 150%,long term operation,150%1000% 100ms |
| Output | |
| Inverter Output Voltage | 380/400/415VAC 3-phase 4-wire |
| Voltage Accuracy | ± 0.5%(balanced load), ± 1% (unbalanced load) |
| THDi | THD<1%(linear load), THD<3%(nonlinear load) |
| Power Factor | 1.0 |
| Three Phase Angle accuracy | 120°c ± 0.5°c |
| Current Crest Ratio | 3:1 |
| Overload Capacity | 110%1h,125%10mins,150%1mins,>150%200ms |
| Transfer Time | 0ms,15ms(ECO Mode) |
| System | |
| Frequency | 50Hz/60Hz (Settable) |
| Mains synchronization range | ±2Hz(Default value) adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz |
| Protection Level | IP41/IP42 |
| Communication Ports | RS232,RS485,dry contact,SNMP card,EPO,generator port |
| System efficiency | > 96% at load above 50%, >95% at load above 25% |
| Operation Temperature | 0-40 °c |
| Storage Temperature | -25 °c -70 °c (without battery) |
| Humidity | 0-95%(no-condensing) |
| Noise(dB) | 55-62dB,Adjusted with load |
| | 5 module cabinet | module :RMS050/10, RMS100/20, RMS150/30 | 150KG |
| | 10 module cabinet | module :RMS100/10, RMS200/20, RMS300/30 | 150KG |
| | module :PM10 | 10KVA power module :20KG |
| Weight | module :PM20 | 20KVA power module :21KG |
| | module :PM30 | 30KVA power module :32KG |
| Dimendion(W XD XH)mm | 5 module cabinet | 600X1400X850 |
| 10 module cabinet | 600X2070X850 |
| power module | 440X132X660(10KVA/20KVA/30KVA) |
