| Prod Model: |
Queen Star Online UPS |
| Input Voltage: |
115 - 300VAC |
| Input Frequency: |
40-60Hz / 50-70Hz |
| Input Power Factor: |
0.99 |
| Output Voltage: |
220/230VAC |
| Output Frequncy: |
50 / 60Hz |
| Output Power Factor: |
0.8 |
| Transfer Time: |
0 |
| Capacity: |
1-3kVA |
| Net Weight: |
10-26(Kg) |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

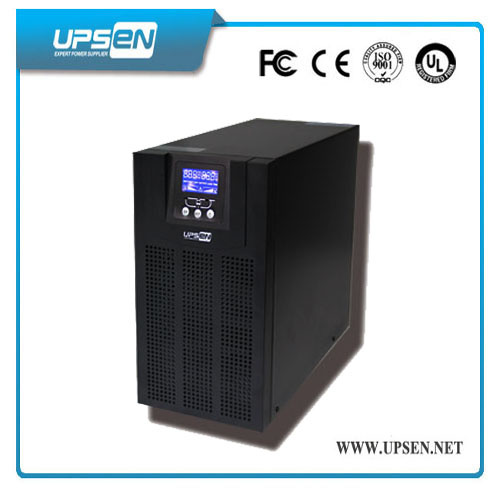

Large-screen LCD Online UPS for ATM Bank System School TV Alarm System (1ph in/1ph out)
Key Features:
1: DSP Technology.
2: Environment Friendly And eco-designed
3: Active input power factor correction (PFC)
4: Wide range of input voltage and frequency
5: Zero power switch delay
6: Active Load Management
7: Sufficient Expansion Slots
8: The load power factor is 0.8
9: Generator Supportable
10: Large-screen LCD
11:High Frequency Online UPS
Technical Specification
| GREEN STAR ONLINE UPS SELECTION GUIDE |
| MODEL | G1K (L) | G2K (L) | G3K (L) |
| PHASE | Single phase with ground |
| CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W |
| INPUT |
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Input Voltage Range | 55-145 VAC or 110-300 VAC |
| Frequency Range | | 40Hz ~ 70 Hz |
| Power Factor | >= 0.99 @ Nominal Voltage (100% load) |
| OUTPUT |
| Output Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC |
| Voltage Regulation | ± 1% |
| Frequency Range (Synchronized Range) | 47~ 53 Hz or 57 ~ 63 Hz |
| Frequency Range (Batt. Mode) | 50 Hz or 60Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 |
| Harmonic Distortion | <= 3 % THD (Linear Load); <= 6 % THD (Non-linear Load) |
| Transfer Time | AC to DC | Zero |
| Inverter to Bypass | 4 ms (Typical) |
| Waveform (Batt. Mode) | Pure Sinewave |
| EFFICIENCY |
| To AC Mode | 88% | 89% | 90% |
| To Battery Mode | 83% | 87% | 88% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH | 12 V / 7AH | 12 V / 7 AH |
| Numbers | 2 | 6 | 6 |
| Typical Recharge Time | 4 hours recover to 90% capacity |
| Charging Current (max.) | 1.0 A |
| Charging Voltage | 27.4VDC ± 1% | 82.1 VDC ±1% | 82.1 VDC ±1% |
| Long-run Model* | Battery Type | Depending on the capacity of external batteries |
| Numbers | 3 | 6 | 8 |
| Charging Current (max.) | 1.0A/2.0A/4.0A/6.0 A |
| Charging Voltage | 41.0VDC ± 1% | 82.1 VDC ±1% | 109.4VDC ±1% |
| INDICATORS |
| LCD | Load level, Battery level, AC mode,
Battery mode, Bypass mode, and Fault indicators |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continously sounding |
| PHYSICAL |
| Standard Model | Dimension, D x W x H (mm) | 397 X 145 X 220 | 419X190X318 |
| Net Weight (kgs) | 13 | 26 | 28 |
| Long-run Model* | Dimension, D x W x H (mm) | 282 x 145 x 220 | 397 X 145 X 220 |
| Net Weight (kgs) | 4.6 | 6.8 | 7.4 |
| ENVIRONMENT |
| Humidity | 20-90 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 50dBA @ 1 Meter |
| MANAGEMENT |
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
