| Prod Model: |
HP9116C 6-20KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Frequency Online UPS |
| Wave Form: |
Pure Sine Wave |
| Capacity: |
1-10kVA |
| Power Factor: |
0.7/0.8 |
| Applications: |
Telecom |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

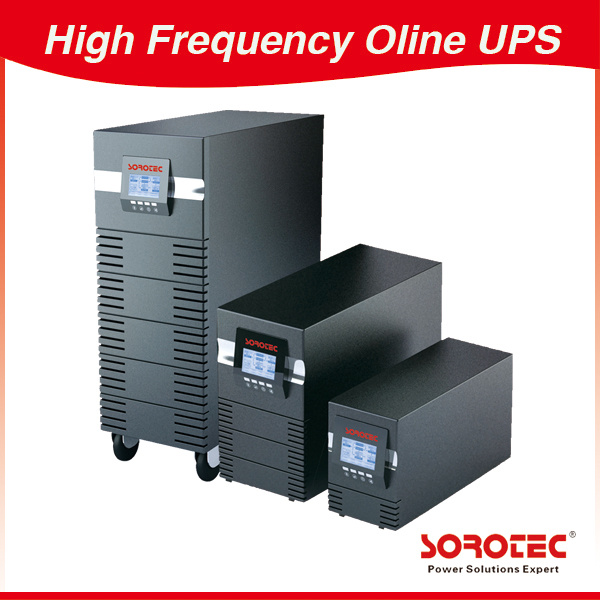

Larger LCD Display Online UPS with Sinewave UPS 6-20KVA
Key Features:
1. Large blue back light LCD for detailed Real-time UPS status display.
2. Advanced online pure sine wave power supply system, with bypass repair switch, It can provide a reliable, high quality AC power source to the precision equipments, can be used widely in different fields.
3. Widely used to computer equipments, telecommunication systems and Industrial automatic control equipments.
4. Truly online design, different from offline, it can adjust the input voltage, filtering, when the AC break off, the UPS will provide an uninterruptible power source from the backup batteries.
5. UPS will change to bypass mode when overloading or inverter fault, when overloading remove, UPS will turn to inverter mode automatically.
6. N+N Parallel Redundancy and Capacity expansion for 6-20K(up to three units)
Technical Specifications of Telecom UPS HP9116C 6-10K (1pH in/1pH out)
| Model | HP9116C 6-10KVA |
| 6KT | 6KT-XL | 10KT | 10KT-XL |
| Rated Power | 6KVA/4.2KW | 10KVA/7KW |
| Rated Voltage | 220/230/240VAC |
| Rated Frequency | 50/60 Hz |
| Input |
| Voltage Range | 176~279VAC (±3VAC) |
| Frequency Range | 50HZ: (46~54HZ); 60HZ:(56HZ~64HZ) |
| Power Factor | 0.98 |
| Output |
| Voltage Regulation | 208/220/230/240X (1±2%)VAC |
| Frequency Regulation | 50/60 Hz±0.05Hz |
| Power Factor | 0.7/0.8 (Optional)Standard 0.7 |
| Voltage Distortion | Linear load<3% Non-linear load<6% |
| Overload Capability | 105%~130% for 10 min;≥130% for 1 min |
| Current Crest Ratio | 3:1 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 240VDC |
| Recharge Time | 7 hours to 90% of capacity after full load discharge |
| Recharge Current | 2A | 4.2A | 2A | 4.2A |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltage, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232, SNMP(Optional),USB (Optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
Weight
(KG) | 79.0 | 33.5 | 81.5 | 36.0 |
| 87.5 | 39.5 | 90.0 | 42.0 |
| Dimensions: Wx D x H )mm | 260X570X717 |
Applications:
Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom.
