Laser Blue LED Light Bar Rocker Switch on-off LED Light 20A 12V, 5pin Switch Carling Style

Name: Laser Blue LED Light Bar Rocker Switch on-off LED Light 20A 12V, 5pin Switch Carling Style
Brand: all-electronics-online.com
SKU: 833978475
Availability: InStock
Rating: 4.3 (50 reviews)

Price:	US $ 1.9-2.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YJ-RKSW
Rating:	DC 12V-24V
Rating Current:	10A-20A
Type:	Spst
Material:	ABS & Environmental Anti-Retardant Materials
Pin:	5 Pins
LED Light Color:	Optional
Usage:	Toys
Standard:	Standard
Lamp:	With Lamp
Color:	Black
Certification:	CE
Condition:	New

Product Description

Laser Blue LED Light Bar Rocker Switch ON-OFF LED Light 20A 12V, 5pin Switch carling style

Product Description:
Weight:27g.
Product color:Black.

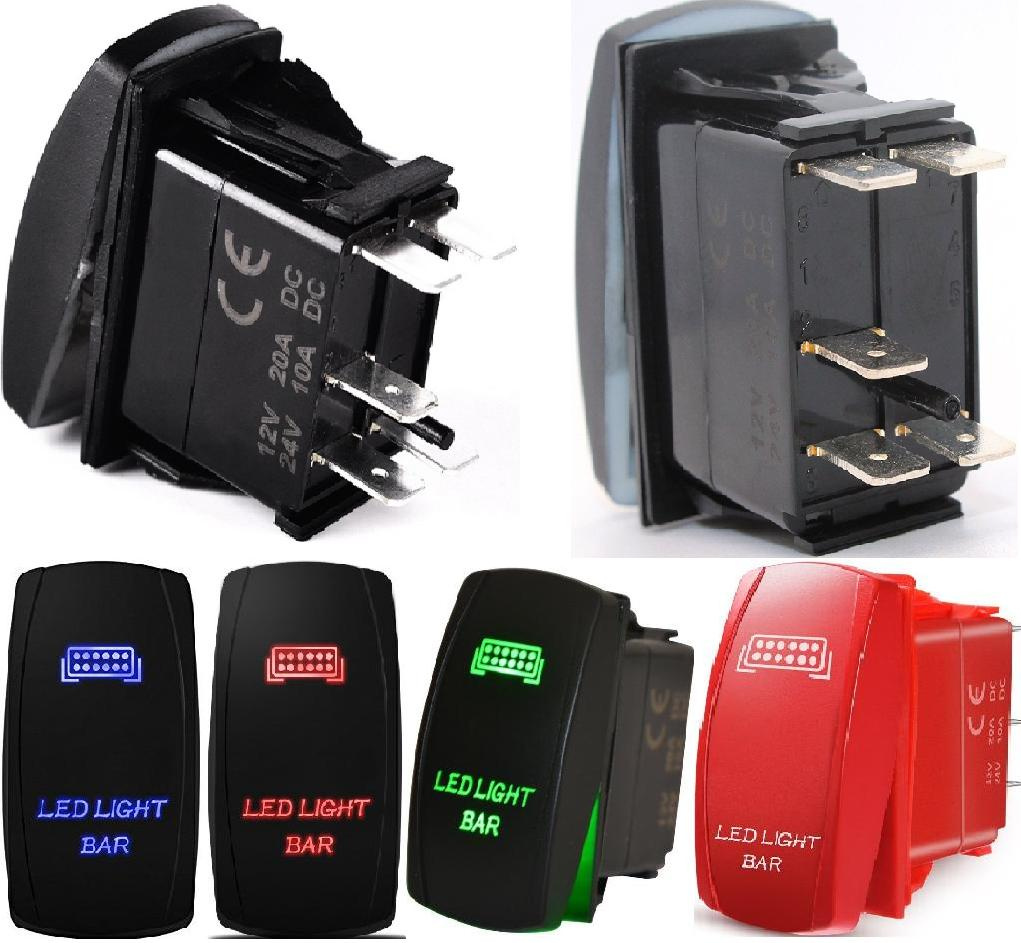

Light color:Blue.Red,Green.(can be choose)
Electrical life: switch 10000 times.
Mechanical life: switch 50000 times.
Product Certification: CE / ROHS.
Operating temperature: -40 ° C to 85 ° C.
Input voltage: DC12V-24V.
Not Including Holder

Features:
Vehicle Service Type:Dirt Bike, ATV, UTV, Adventure, Cruiser/ Touring, Personal Watercraft, Snowmobile, All of the above
Perfect Appearance: built in two premium LEDs emits cozy beam, penetrating to surface cover that illuminates the patterns, no longer fumble for the switch but clearly see it at the dark.

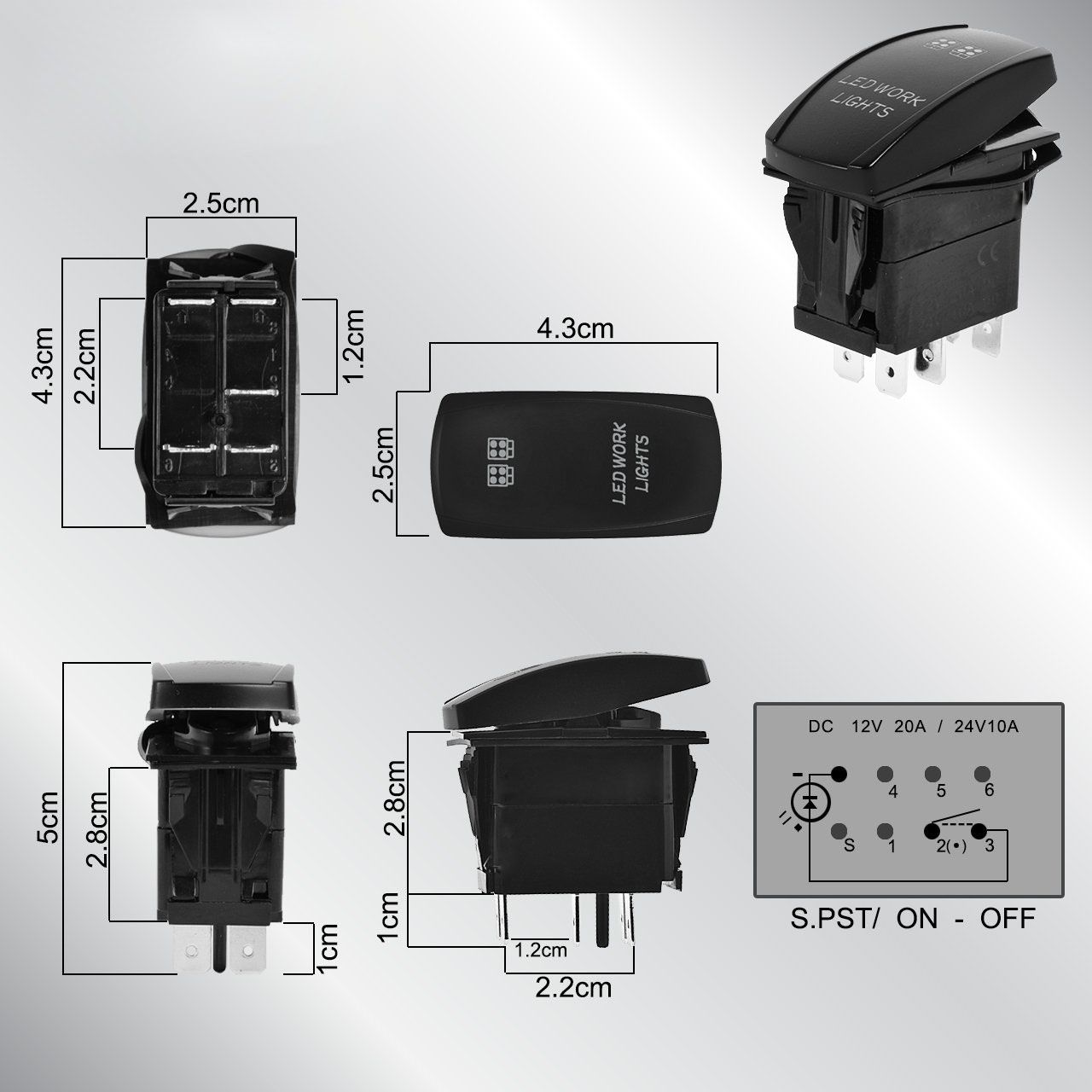

This is the only switch that didn't come with Installation Notes,but We show the wiring diagram in the product picture.
Its surface cover is designed to be streamline curved with etched patterns. Built-in LED light emits perfect beam to light up the pattern when the switch is powered up, which also allows you to clearly catch sight of it in a dark environment, no more fumbles!
Rated at 20Amp 12V/DC and 10Amp 24V/DC,Single pole single throw ON-OFF Rocker Switch Laser etched LED Light.
Lower light Waterproof rating of IP66.
it is mainly used for boat, yachts, RV,car,buses and other high-end large-scale travel tool installation and use.

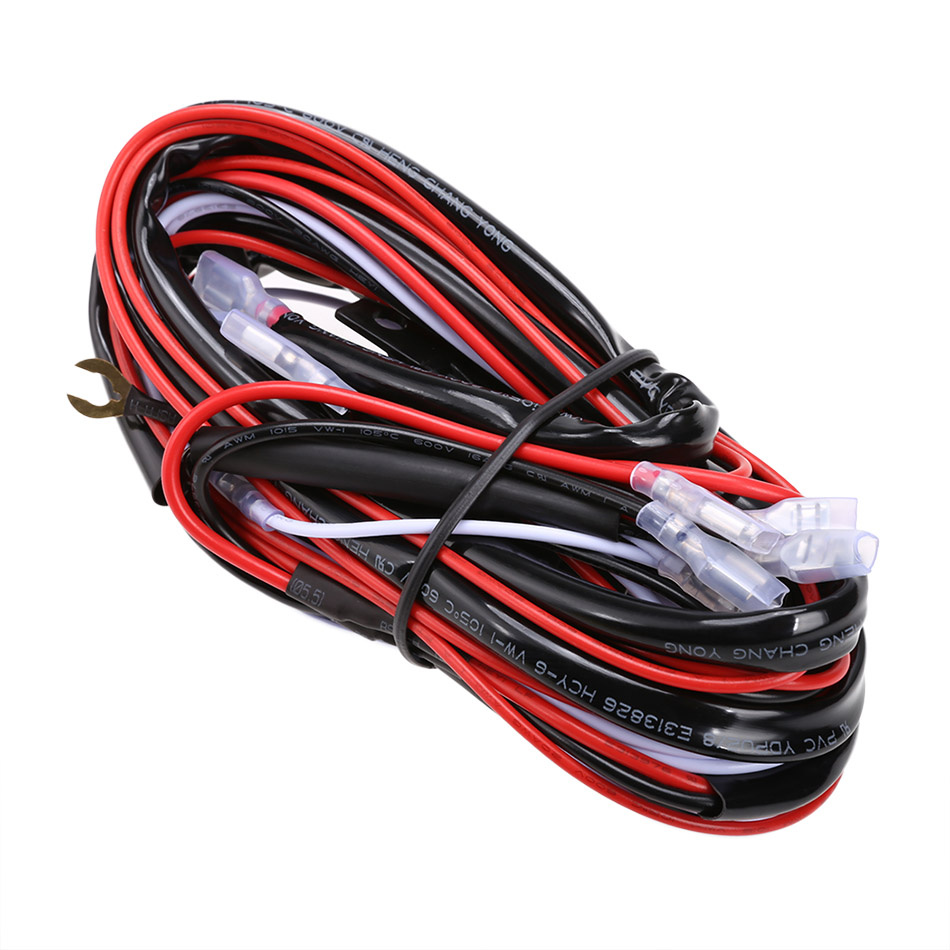

If you want the 5Pin Switch wiress for the Rocker Switch , you can cantact with me !
