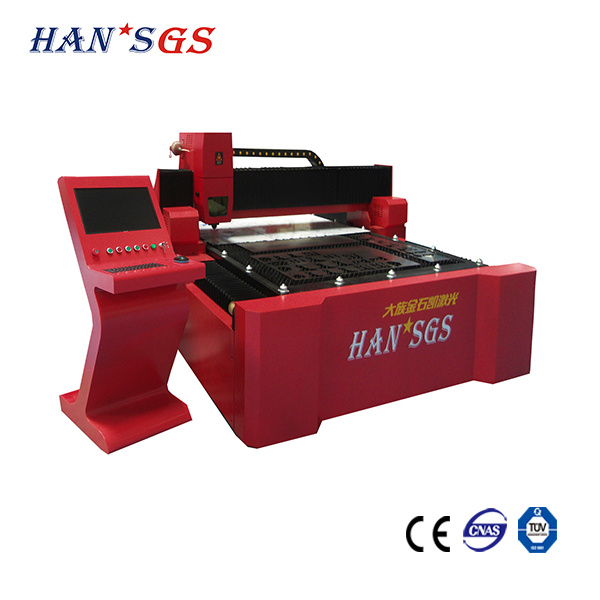

Laser Cut Metal Sheets CNC Fiber Laser Cutting Machine
| Price: |
US $ 50000-1000000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
GS-LFD3015 GS-LFD2513 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3000X1500 |
| Motor: |
Servo Motor |
| Cutting Nozzle: |
Ring Type |
| Drive Way: |
Dual Drive |
| Graphic Format: |
Dwg,Dxf |
| Size Of Control Computer: |
19 Inches |
| Control Mode: |
CNC |
| Laser Type: |
Fiber Laser |
| Cooling Mode: |
Water Cooling |
| Applicable: |
Metal |
Product Description
Laser Cut Metal Sheets CNC Fiber Laser Cutting Machine
Description:
GS - LFS3015 fiber laser cutting machine is adopted with international advanced technology of high power fiber laser source, combined with the company's independent design gantry CNC machine tool system. High strength whole welding cutting bed, have been handled with high temperature annealing and large CNC gantry milling machine precision processing,thus the cutting bed has very good rigidity and stability. Driven by Precision ball screw and linear guide. It's mainly aimed at the rapid precision cutting of sheet metal under 4 mm. Widely used in metal crafts, metal products, precision machinery, auto parts, electronics, toys, glasses, jewelry, nameplates, advertising and other industries
Features:
1.Adopting world's top imported fiber laser source with stable performance
2.Optic-electricity conversion rate of fiber laser is 3 times than CO2 laser, which is more energy conservation and environmental friendly
3.Power consumption of fiber laser is only 20%-30% of similar CO2 laser cutting machine, very low running cost.
4.Driven by gantry structure, dynamic performance is good. The overall layout is compact, rational, only cover a small area.
5.Equipped with special laser cnc system, which can guarantee efficiency and accuracy during high speed running process.
6.X, Y axis adopt imported ball screw and guide line, equipped with central lubrication devices at the same time to guarantee the long-term stability and reliable running.
7.Vertical and horizontal driving have adopted imported high precision helical gear and rack driving, and equipped with high-precision planetary gear reducer and AC servo system to achieve high precision transmission.
8. There is collection device below cutting bed, small cutting material and metal powder will be collected in it.
Specifications: | Model | GS-LFS3015 |
| Medium of Laser | Fiber |
| Processing surface (L × W) | 3000mm×1500mm |
| Maximum cutting speed | 15m/min |
| Cooling method | Water cooling |
| Laser Wavelength | 1070nm |
| Output Power | 500W |
| Min line width | ≤0.1nm |
| Material cutting thickness | 0.2-6mm |
| Driven method | Imported servo motor |
| Transmission method | Imported ball screw and guild line |
| Power supply | 380V/50Hz/16A |
| Continuous Operating Hours | 24 hours |
| Machine weight | About 3000kg |
| External dimension(length×width×height) | 4270mm×2280mm×1750mm |
Switzerland Original Raytools Laser Cutting Head Laser cutting head of stable performance and convenient operation and maintenance1. non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.2. Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.3. The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel. Constitution of GS-LFDS3015 CNC Laser Cutter
Applications:
1.Can cut metal sheet/carbon steel/stainless steel/aluminum/copper/zinc
2.Petrochemical industry
3.Bus manufacturing
4.Steel construction
5.Medical equipment
6.Fitness equipment
7.Electrical engineering
8.Kitchen ware industry
9.Advertising brand
10.Precision machinery
11.Pipe processing
12.Metal processing

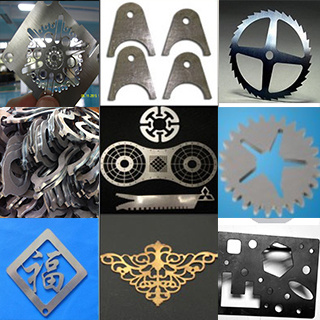

13.Sheet metal industryCutting Materials
It is used to cut the metal materials, such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
