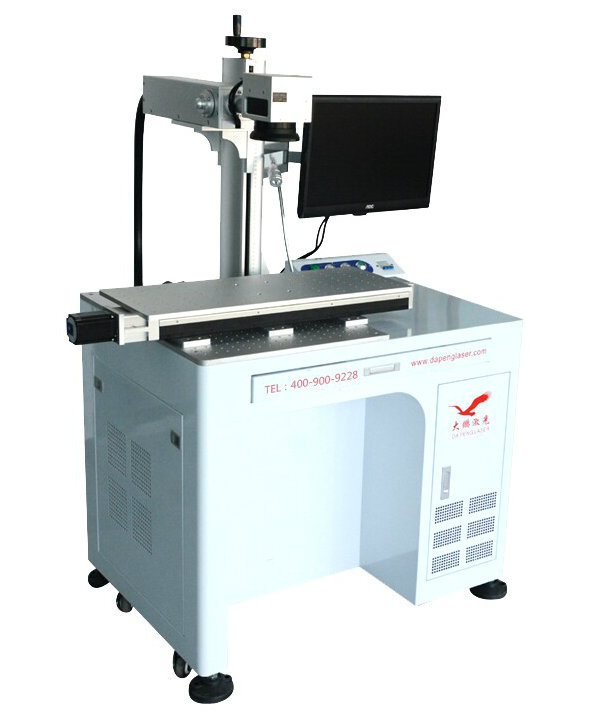

Laser Marking Machine for Special Keyboard Engraving Machine
| Price: |
US $ 4500/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
107 |
| Engraving Machine Type: |
Laser Engraving Machine |
| Power: |
Low Power Model |
| Drive Type: |
AC Servo Drive |
| Certification: |
SGS, Ce |
| Laser Type: |
Fiber Laser |
| Control: |
Automatic |
| Current: |
AC |
| Condition: |
New |
| Usage: |
Metal/Gold/Silver/Stainless Steel/Steel |
Product Description
laser marking machine for Special keyboard engraving machine
Advantages:
Coast saving on power consumption/Unit Power only 0.6KW
No routine maintenance/ zero-maintenance
Life time over 100,000hrs
Air cooled/No chiller needed
Red aiming pointer/No more mistakes
Solid aluminum top work surface & Swing arm laptop stand
Portable tabletop units to automated production systems available
Specifications:
| model | YLP-F20/30/50 |
| beam quality | M²<1.6 |
| wavelenght | 1064nm |
| laser power | 20/30/50w |
| laser lifetime | ≤100000h |
| laser frequency | 20KHz-1000KHz |
| working range | 150*150mm (optional) |
| power rwquirments | 200v/50-60HZ/10A |
| minimal line width | 0.03mm |
| outline size | 180*160*180mm(L*W*H) |
| running environment | 5ºC-45ºC
10%-80% |
| marking speed | ≤70000 m/s |
| cross weight | 150KG |
| levels of protection | IP54 |
| laser safety level | Class |
| minimal character | 0.15mm |
| repeatability precision | ±0.001mm |
Software:| True Type Fonts | Single Stroke Fonts | Elliptical Text |
| Sequential Serial Numbers | Customizable Auto Dating | Barcodes |
| QR Codes and Data Matrix | UID Wizard | Logos |
| Photo Quality Images - JPG, TIF, GIF | Corel Draw, Adobe Illustrator | Raster Graphics |
| Vector Graphics | CAD Files | |
Features:| Easy to Use Automation Features | Sharp, High Contrast, Impact Free | High Speed Galvo Steering |
| Compact | 100,000 Hrs Laser Lifetime | 1 Year Warranty |
| Turnkey System | Permanant Marking | Air Cooled/Energy Efficient |
| Tunable Pulse Rate | Environmentally Friendly/No Consumable | Digital I/O for Easy Operation |
| Fast Set-Up | Red Laser Pointer | |
Applications:
We offer Fiber Laser Marking Machine with following applications:
Laser marking of metal & non-metal material and products: Stainless steel, gold, silver, copper, aluminium alloy, hardware, tools, acrylic, ceramics, plastics, organics, thermo-elastomer rubbers, paper and others
Hall marking on Gold
Automotive & Engineering Industries
Electronic industry: Capacitor, inductor, PCB, IC, connector, control panel and other instruments
Others: Cosmetics, food package, bottle, gift, advertisement & sign crafts, craft & gift making
We also provides laser sources and spare parts to the laser machine manufacturers in China and surrounding countries.
MATERIALS:| Stainless Steel | Steel | Aluminum, Carbide |
| Nickel | Titanium | Cast Iron |
| Chrome | Painted Metal Alloys | Multi-Coated Metals |
| Plastics/Rubber | Backlit Buttons | Polycarbonate |
| PVC | Composites | Many more materials |
sample marking
Shenzhen Dapeng Laser Technology Co. Ltd.
Shenzhen Dapeng Laser Technology Co., Ltd. was established in 2008, is a research and development, manufacturing, sales and service in one of the laser equipment high-tech enterprises, is committed to laser technology research and development, laser equipment design research and development, production,
technical support, services and consulting,Strong research and development capabilities, standardization and scale of the production plant, we can guarantee the quality of products and delivery time; also can be customized according to customer requirements of the design and production, better adapt to market development,
The company's main products include: laser cutting machine, laser welding machine, laser marking machine, industry-specific and automated laser equipment, etc. Products Used in electronics, IC chips, electrical appliances, lighting, jewelery, hardware tools, sanitary ware, instrumentation, automobile and motorcycle accessories, mobile communication parts, mold, precision machinery, medical equipment, IT digital, metal shell, military aviation components , Clothing leather, craft gifts, advertising decoration, model, cookware tableware, kitchenware and other industries
Dapeng laser product quality is stable and reliable, with professional R & D team, the pursuit of excellent quality at the same time, Dapeng laser also provides customers with timely, comfortable pre-sale, sale, after-sales service and excellent cost-effective products.
Dapeng laser through the implementation of "to help customers succeed, create value model, to create industrial laser equipment industry services high-end brand" business philosophy, won the majority of users trust and praise. Customers located throughout the country and overseas, 2016 sales of laser equipment more than 5,000 sets .
The company established a sound production and sales and after-sales service system, in Shenzhen, Wenzhou, Kunshan, Xiamen has a production base. In Dongguan, a large laser cutting machine production base.
And in major domestic industrial cities and regions with offices, the offices have equipment display, process proofing, sales and after-sales service, resident technical service personnel, to provide customers with timely, comfortable pre-sale, sale, after-sales support And services.
Dapeng people know that quality and service is the fundamental survival of the company, innovation is the basis for long-term development of the company to help customers create value, and strive to build the laser equipment industry well-known brands, look around the world, win-win cooperation and create a better future
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
