Laser Marking Machine/Laser Marker/Fiber Laser Marking Machine System
| Price: |
US $ 4500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PEDB-200 |
| Average Output Power: |
20W (Cw or Pulse) |
| Wavelength: |
1064nm |
| Pulse Repetition Frequency: |
20-100kHz |
| Marking Depth: |
≤1.2mm |
| Output Beam Quality: |
<1.5m² |
| Min. Focusing Spot: |
0.005mm |
| Min. Character Height: |
0.15mm |
| Max. Marking Speed: |
12000mm/S |
| Re-Precision: |
±0.001mm |
| Cooling: |
Air Cooling |
Product Description

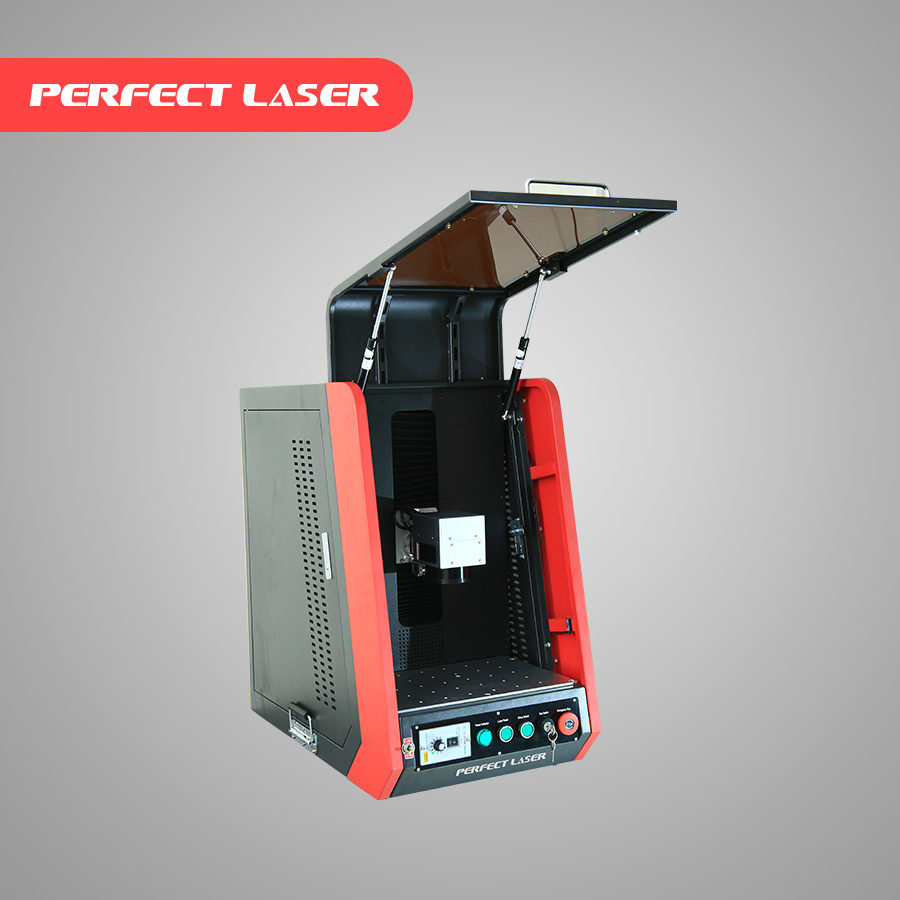

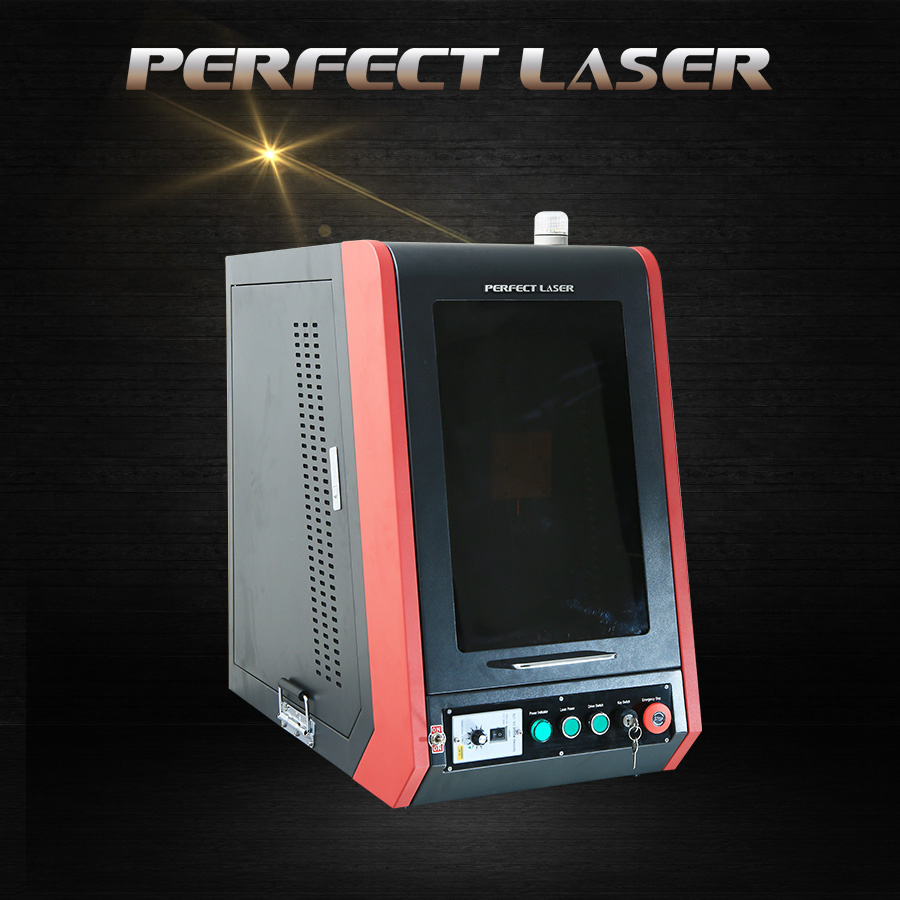

PEDB-200 Mini Full Closed Fiber Laser Marking Machine
---Brief Introduction
This type fiber laser marker has a cover-sealed structure. During work, the enclosed fiber laser marking machine's flog will be kept in the box body without emission to outside.
Environmental, friendly and healthy, this is special designed for European market, which have high demands for working environment.
---Features:
1. Low operation cost, free maintenance for over 10 years
2. Fast Speed: Imported laser scanning system of the 20w fiber laser marking machines makes the enclosed fiber laser marking machine's marking speed up to 7000mm/s.
3. High Precision: 10w 20w fiber laser marking machines' Re-position precision is 0.002mm
4. High-Rate of Electrical-Optical Conversion for the enclosed fiber laser marking machine: The efficiency of 10w 20w fiber laser marking machines optic-electrical converting is up to 70%.
5. High Reliability: MTBF(Mean Time Between Failures) >100,000 hours
---Technical Parameters| Item | PEDB-200 (10w) | PEDB-200 (20w) |
| Output power | 10 watt | 20 watt |
| Central wavelength | 1064±4nm | 1064±4nm |
| Polarization | Random | Random |
| Single pulse power | 0.5~0.6mJ | 0.8~1.0mJ |
| Beam quality | <1.5m2 | <1.7m2 |
| Facular diameter | 6~8mm | 7~9mm |
| Power stability | <5% | <5% |
| Frequency adjusting range adjustable range | 20~80kHz | 20~80kHz |
| Pulse breadth | 80~140ns | 80~140ns |
| Pulse adjusting range | 5~100% | 5~100% |
| operating voltage | 100~240VAC | 100~240VAC |
| Fiber Length | 1.5m | 1.5m |
| Cooling mode | forced air | forced air |
| Operation temperature | 0~35ºC | 0~35ºC |
| Operation humidity | 10~95 | 10~95 |
| Storage temperature | -10~60ºC | -10~60ºC |
| Marking Format | Graphics, Text, Bar Codes, QR Code, Serial Number,Serial number,etc. |
---Product Application
1. Replace ink and paint: labels of cellphone battery, panels, cellphone keys, small
accessories, etc..
2. Ceramic and EP materials: electronic components package, IC, etc..
3. Plastic products: numerical order and LOGO of electrical enclosures and
electronic products.
4. Metal surface: stainless steel, copper, aluminum, oxidation, phosphatization and
electrocladding. It's commonly used in hardware, daily necessities, electrical
enclosures, cell phone cases, etc..
---Product Advantages
1. High definition: Resolution is up to 1 micron and is at least 10 times higher than
traditional machines.
2. Less power consumption: It's 1 / 25 ~1 / 10 of traditional laser markers.
3. High speed: 3~5 times faster than traditional laser markers.
4. High stability: higher than any other similar ones.
5. Long service life: 10 times longer than traditional ones.
